welded steel tube straightening machine/customized straightening machine

FOB Price

USD $15000.00 - $20000.00 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Other, Straightener & Cutter	Use:	Other, tube straightener & cutter
Place of Origin:	Jiangsu, China	Brand Name:	BAOLIANG	Model Number:	BLXZBT-8
Voltage:	380V	Power(W):	2.2kw	Dimension(LWH):	230010001350mm
Weight:	520kg	Certification:	SGS	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

bundy tube straightener machine

No	Item	Detail	Memo
1	tube diameter range	OD 4.0—8.0mm	/
2	tube thickness range	0.50-0.80mm	/
2	tube straightening length range	100-50000mm	/
3	straightening working speed	>=45meter/minute	different as tube size
4	Material collection shelf	prepared by the user	/
5	length cutting tolerance	+/-1mm	/
6	power supply	380V/50Hz	3 phases 4 wires type
7	motor power	2.2KW, rev1440/rpm	Material feeding motor
7	motor power	0.75KW, rev1440/rpm	cutting motor
8	the pressure the air compressor	1MPa	Just need 0.6-0.8MPa in working
9	dimension	2300X1000X1350mm	Not included the material collection shelf
10	weight	520KG	/

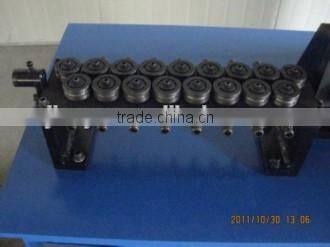

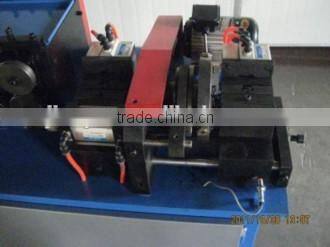

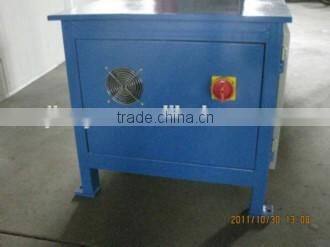

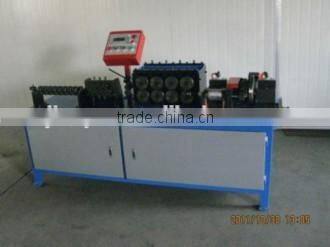

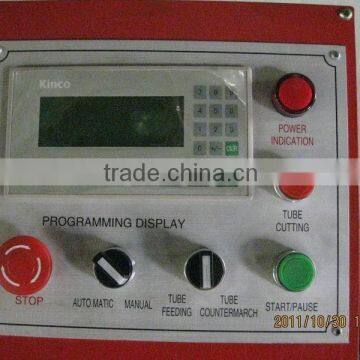

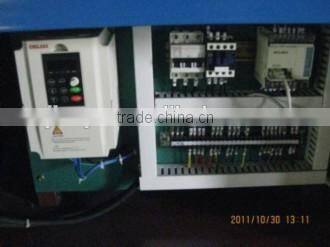

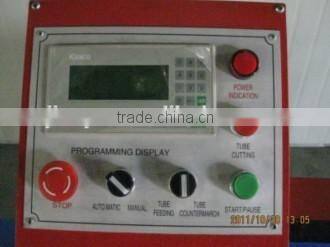

Detailed Images

Packing & Delivery

Our Service

We can design the machine as the requirement of clients and supply all parts for sales service , any question and feedback, please contact us freely.
