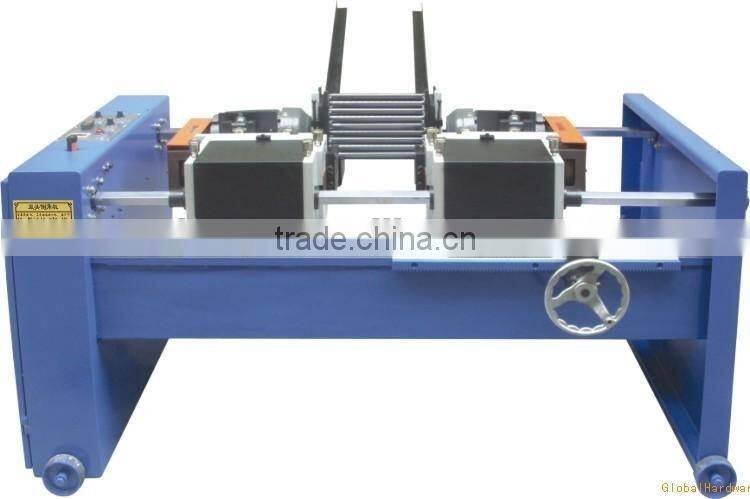

Chamfering Equipment/chamfering Machine
US$ 30000.00 - 30000.00
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JSY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DEF-FA52 Chamfering Processing Machine Shock Absorber Steel Tube Chamfering MachineUS$ 30000.00 - 30000.00MOQ: 1 Unit -
Chamfering Machine Suitable for Automobile Industry Shock Absorber Pipe Chamfering MachineUS$ 30000.00 - 30000.00MOQ: 1 Unit
-
Metal Forming Machine on ExpressUS$ 30000.00 - 30000.00MOQ: 1 Set
-
Chamfering Dished End Machine for Copper PipeUS$ 30000.00 - 30000.00MOQ: 1 Set
-
Round Steel Tube ChamferUS$ 30000.00 - 30000.00MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
JSY
Model Number
DEF-FA52
Voltage
three-phase supply 380/220V
Rated Power
2x1.5/1.0kw or 2x1/0.75kw
Dimension(L*W*H)
225x120x160 cm
Weight
1250 kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Specification

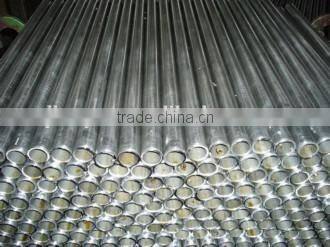

steel tube end chamfering machine mainly used for steel tubes chamfering processing, widely use in
shock absorber pipe, fork pipe, steering pipe for motorcyle and automobile industry.
Main Technical Parameter
| item | details |
| main motor | process common steel tube 2kwx1.5P |
| process Al or Cu tube 2x1.5/1.0kw,2/4P | |
| process stainless steel tube 2x1/0.75kw,4/8P | |
| tool bit | standard tool,suit for pipe OD 3/8” -2” |
| working length | a. standard:150mm-1000mm |
| b. standard:150mm-1500mm | |
| c. standard:150mm-2000mm | |
| middle feeding station (BTM) | #1)Φ 12- Φ 26mm |
| #2)Φ 18- Φ 32mm | |
| #3)Φ 22- Φ 46mm | |
| #4)Φ 40- Φ 57mm | |
| use air pressure | 0.6-0.8Mpa,120ml/min |
| machine weight | DEF-FA/52 Rack type 1250kg |
| DEF-FA/52+BTM: 1400kg | |
| machine size | DEF-FA/52 Rack type 225x120x160 |
| DEF-FA/52+BTM: 225x220x160 |
drawing
service
We can desgin the machine customizing, if you have any question, pls contact us free.
