Metal Forming Machine on Express

Metal Forming Machine on Express thumbnail-1
Metal Forming Machine on Express photo-1
US$ 30000.00 - 30000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Pipe Molding Machine
Pipe Material:
Other, Metal
Contact Supplier Request Quote Chat Now
Zhangjiagang Jiasye Import & Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Pipe Molding Machine
Pipe Material Other, Metal
Application Other, Chamfer steel tube burr ends into plain ends, shock absorber pipe, fork pipe, steering pipe plants
Place of Origin Jiangsu, China
Brand Name JSY
Model Number DEF-FA/52
Voltage 380V/220V
Power(W) 2KW
Dimension(L*W*H) 225*120*160
Weight 1250kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specification

Metal forming machine on alibaba express

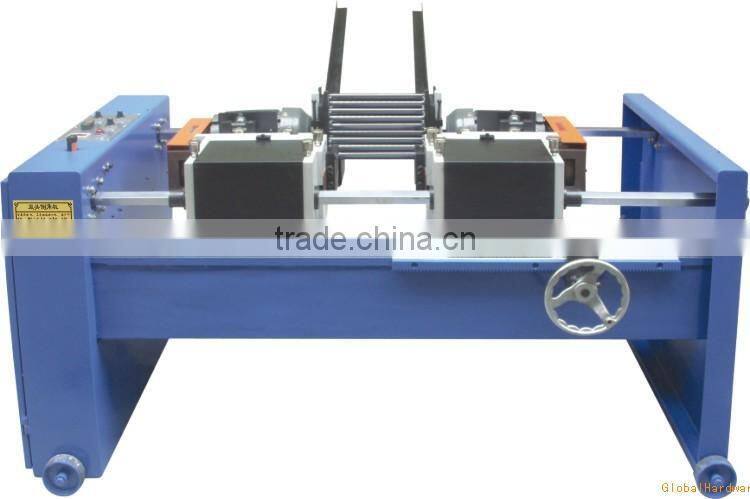

steel tube end chamfering machine mainly used for steel tubes chamfering processing, widely use in

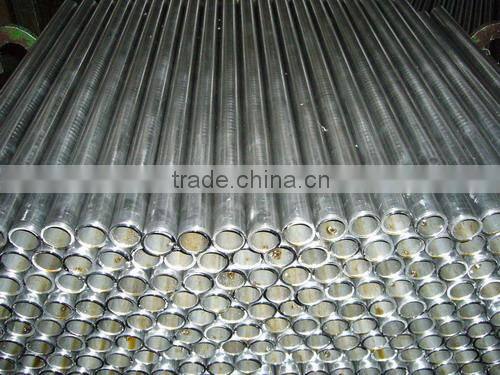

shock absorber pipe, fork pipe, steering pipe for motorcyle and automobile industry.



Main Technical Parameter

item

details

main motor

process common steel tube 2kwx1.5P

process Al or Cu tube 2x1.5/1.0kw,2/4P

process stainless steel tube 2x1/0.75kw,4/8P

tool bit

standard tool,suit for pipe OD 3/8” -2”

working length

a. standard:150mm-1000mm

b. standard:150mm-1500mm

c. standard:150mm-2000mm

middle feeding station     (BTM)

#1)Φ 12- Φ 26mm

#2)Φ 18- Φ 32mm

#3)Φ 22- Φ 46mm

#4)Φ 40- Φ 57mm

use air pressure

0.6-0.8Mpa,120ml/min

machine weight

DEF-FA/52 Rack type   1250kg

DEF-FA/52+BTM:         1400kg

machine size

DEF-FA/52 Rack type   225x120x160

DEF-FA/52+BTM:         225x220x160

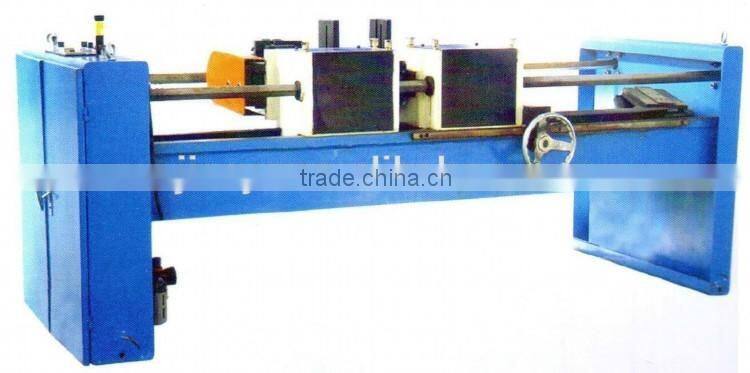

Drwaing



Metal forming machine on alibaba expressMetal forming machine on alibaba expressMetal forming machine on alibaba expressMetal forming machine on alibaba express









service

We can desgin the machine customizing, if you have any question, pls contact us free.
