0.7-23LPH, 16-1.5bar, High Quality Phosphate Dosing Pump for Boiler Quality Choice
- 1000 Piece / Pieces per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Liaoning, China | Brand Name: | German Brand | Model Number: | CONC |
Theory: | Other, solenoid diaphragm pump | Structure: | Diaphragm Pump | Usage: | Other, chemical dosing pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electricity |
Pressure: | Low Pressure | Application: | Other, Metering, Boiler feed water treatment |
Product Description
0.7-23LPH, 16-1.5bar, High Quality Phosphate Dosing Pump for Boiler
German brand, made in China.
PP dosing head, EPDM/FPM seals.
0.7-24L/h,16-1.5 bar.(4.56-152.2GPD, 232-22Psi)
German quality.
metering systems protect pipework, fittings, and devices, such as boilers, washing machines and
dishwashers, against corrosion and lime scale. Active substances, such as silicate, phosphate or silicate
phosphate mixtures, can be metered here. These active substances form a protective layer in the pipework
and reduce aggressiveness and hardness sedimentation in the water.
Phosphate
as ortho and polyphosphate to prevent lime scale and corrosion in hard water up to max. 20 CH (carbonate
hardness). Hard water salts, such as calcium and magnesium ions, responsible for lime scale are thereby
stabilised, i.e. these ions remain dissolved in the water and do not form lime scale on the pipe walls. Growth
on the pipes is thus prevented and there are no deposits of lime scale on heating coils, dramatically
reducing their efficiency. A thin, solid protective layer is formed. Mixtures containing silicate and phosphate
act as corrosion and lime scale inhibitors for soft and medium-hard water. A continuous feed of the feed
chemical is required to maintain this protective layer, otherwise it will degrade.
Product Name | Phosphate dosing pump |
Type/Series | CONC |
Brand | German Brand |
Made in | China |
Structure | solenoid diaphragm |
Capacity | 0.7-23L/h (4.56-152.2GPD) |
Back pressure | 16-1.5bar (232-22Psi) |
Liquid ends | PP head, EPDM/FPM seals |
Power supply | 220V,100-230V,50/60Hz |
Power consumption | 12W,16W,24W |
Protection class | IP65 |
Insulation class | F |
Control type | manual,external contact, 4-20mA anolog |
Packaging type | carton |
Delivery time | within 1 week |
Warranty | 1 year from delivery date |
We also have dosing pumps with other capacity&back pressure for your option.
Welcome your enquiry.
The CONC solenoid dosing pump is a microprocessor-controlled, short-stroke, solenoid-driven, diaphragm-type dosing pump for metering liquid, non-combustible media. It is popular to our customer for its precise design, reliable operation, good performance-cost ratio. It is widely applied to all kinds of chemicals dosing, with a good anti-corrosion performance of the liquid ends.
Highlights:
1.Solenoid-driven positive displacement dosing pump, compact, reliable & durable.
2.Capacity range from 0.7 l/h to 23 l/h, at a max. backpressure of 1.5 bar to 16 bar.
3.Multiple choices of liquid end materials for anti -corrosion purpose.
4.Stroke length is adjustable manually from 0 to 100%.
5.Various stroke frequency control modes on request:
3 constant metering frequencies manually: 100%, 50%, 25%.
Potential free contact input & 50%, 100% constant frequencies.
4-20mA input & 50%, 100% constant frequencies.
Liquid end material:
PP1=PP/EPDM seal
(PP2=PP/FPM seal(Viton®) not applicable for dosing hydrazine)
* All options are with bleeding valves.

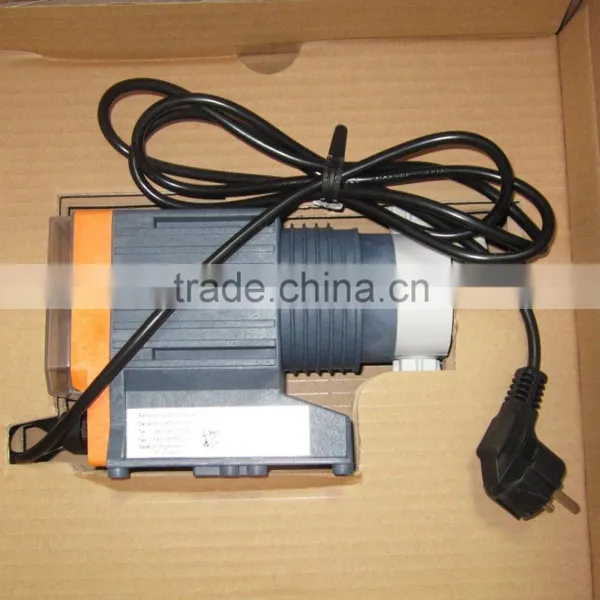

CONC solenoid dosing pump:
Standard Accessories(foot valve+injection valve+2m PVC inlet hose+5m PE discharge hose)
CONC Dosing Pump Production Line:
Type of packaging | carton |
Size/weight for 1pc package | 33*28*19cm/4KG |
Size/weight for 5pcs package | 35*30*100cm/21KG |
Shipping method | Express,air,sea |
