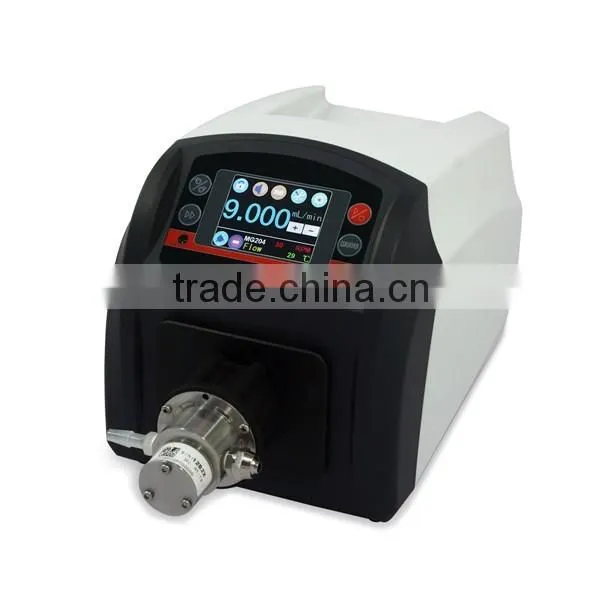

15-2700ml per min CT3001F Intelligent Dispensing Micro Gear Pump

Suitable pump heads

MG204,MG209,MG213

Main function

Keypad to control start/stop, direction, full speed, memory (power lost memory);Foot switch control external control start/,stop, external control direction, with physical isolation, level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 mA speed control optional;Transfer mode, fluid volume distribution mode, time distribution mode, copy distribution mode.

Communication function

RS485,Support Modbus communication protocol

Display function

True color touch screen display

Direction control

CW&CCW

Flow range

15-2700ml/min

Speed range

50-3000RPM

Speed resolution

1rpm/min, accuracy:0.5%

Dispensing time

0.1-99.99s

Interval time

0.1-999.9s

Dispensing time

0-999

Control way

Keypad + Touch screen

Display way

65565 LCD

Power supply

AC 90-264V 50Hz/60Hz

Power consumption

<50W

Working environment

Working environment :0-40℃

Relative humidity <80%

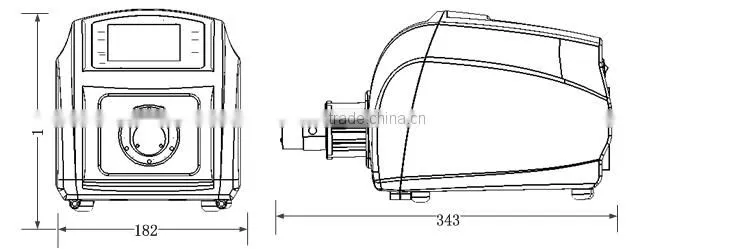

Dimension

342*198*182mm

Drive weight

3.5kg

IP standard

IP31

Pump head model

Gear material

Transfer pressure

(MPa)

Flow rate (ml/min)

Fluid temperature(℃)

MG204XD0PT00000

PEEK

0.8

15-900

-45~120

MG209XD0PT00000

PEEK

0.8

30-1800

-45~120

MG213XD0PT00000

PEEK

0.3

45-2700

-45~120

MG204XD0TT00000

PTFE

0.8

15-900

-45~50

MG209XD0TT00000

PTFE

0.8

30-1800

-45~50

MG213XD0TT00000

PTFE

0.3

45-2700

-45~50
