Full Automatic Plastic Package Machine

Full Automatic Plastic Package Machine photo-1
US$ 26,000 - 32,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Cup
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shantou Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Plastic Cup
Place of Origin Guangdong, China
Brand Name Donglong
Model Number RXC-660
Certification CE

Specifications

Full Automatic Plastic Package Machine
1.Making any design of plastic cup,box and tray
2.Intellectualized temperature control

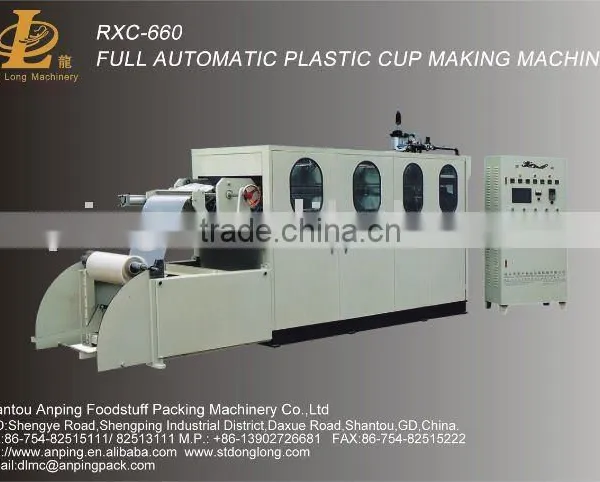

Full Automatic Plastic Package Machine


The machine is suitable for using the plastic-sheet heating to a certain temperature after pressing the heat-sheet, different plastic containers of cups, bowls, boxes.

Material: PP, PS, PVC & PET



Key Features:

  1. The machine is controlled by PLC, using the Touch-screen,
  2. Servo Motor can be added in the sheet-feeding device & forming device as customer’s requested.
  3. High in Automatic Production level, fast speed, forming square area is large.

Main Technical Parameters:

Power Supply  3-phase  380V  50Hz
 Rated Power  80kw
 Forming Style  Cylinder
 Range of Sheet  PP, PS, PVC, PET
 Thickness  0.4-1.6mm
 Width  500-600mm
 Forming Area  600×320mm
 Forming Depth  0-125mm
 Speed  20-25cycle/min
 Air Consumption  2M³/M(0.6-0.7Mpa)
 Water Consumption  2.5M³/H
 Dimension  7000×1500×2500mm
 Weight  5T

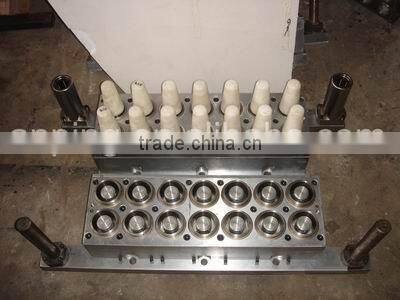

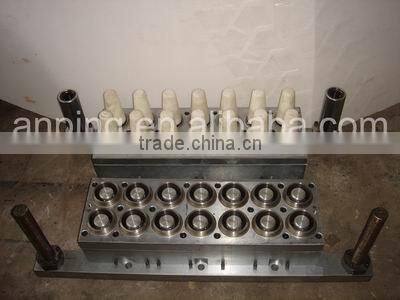

Mould Structure:

Full Automatic Plastic Package MachineFull Automatic Plastic Package Machine



Noted: RXC-660 is complete with JP-650B Plastic Sheet Extruding Machine, please visit our website www.anping.en.china.cn
