1.ir receiver module
2.ir receiver module with ROHS certificate
3.use for all audio video products.
4.long receive distance
120 ir receiver module
Technology parameter
SIZE: 7.0(L)X6.0 (W)X5.5(H)mm
WORKING VOLTAGE: 2.7-5.5V(DC)
RECEIVE DISTANCE: 15-18Meter
FEET SPACE BETWEEN: 2.54mm
FEET LENGTH: 23mm

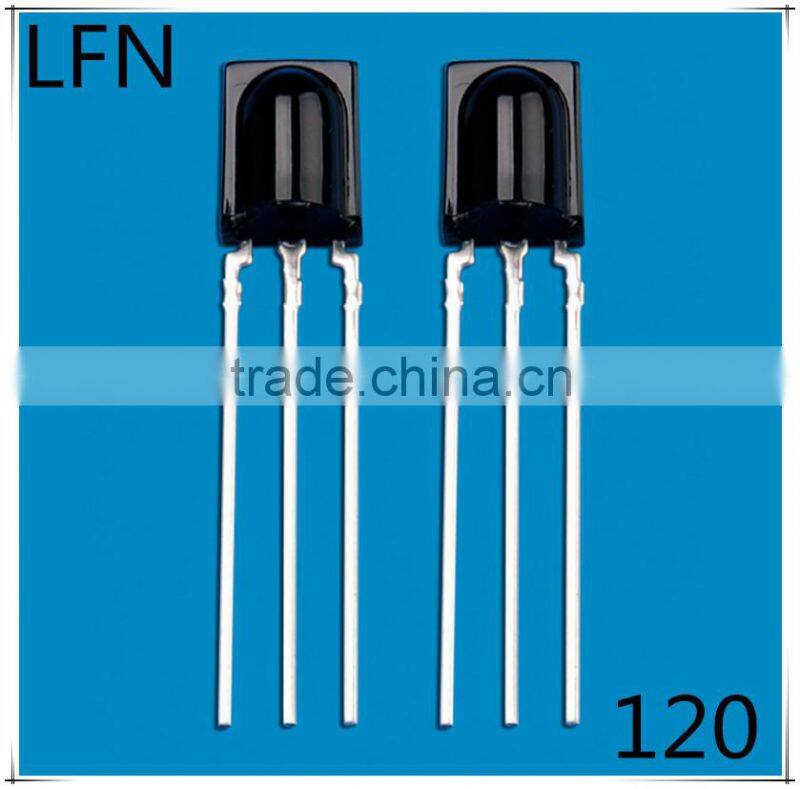

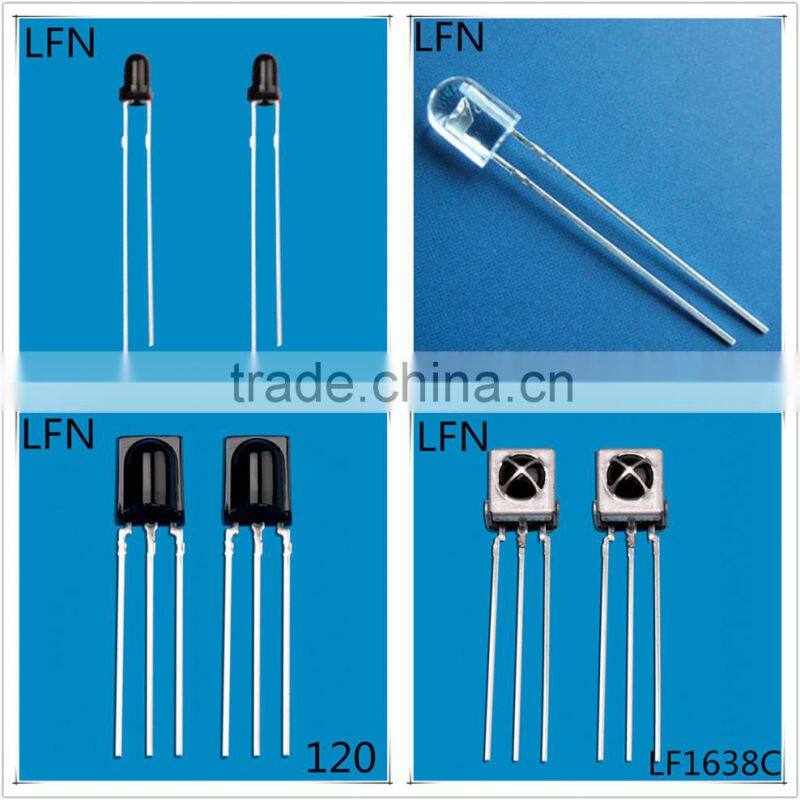

120 ir receiver module is a small infrared receive unit , the key component in the inside part is full integrated IR Receiver . This component packs high –performance PIN Photo Diode together with IC chip which has the function of enlargement and demodulation by epoxy resin ,By this ,120 ir receiver module can resist various kinds of visiable light interferences and electromagnetic interference . With the interior part set with power supply IC filter circuit , it can effectively solve the interference produced through extending the receiving circuit . The 120 ir receiver module can makes remote control more flexbile and more convenient.
120 ir receiver module products instruction
RoHS material,bulit-in shiedlding,builting-in receiver chip,high sensitivity,anti light interference capability,stable performance,can work under 500 LUX high lighting.
120 infrared receiver be suitable products
Audio system,digital photo frame,car audio.TV,DV,DVB-S,DVB-T,fan,lighting,air-condition etc.
The Limit Parameters
Item |
Symbol |
Limit Date |
Unit |
Power Supply Voltage |
Vcc |
6.0 |
V |
Voltage Out |
Vo |
6.0 |
V |
Using Temperature |
Topr |
-10--+60 |
°C |
Temperature in Store |
Tstg |
-20--+75 |
°C |
The Basic Parameters
Item |
Symbol |
The Minimum |
The Standard |
The Maximum |
Unit |
Current Consumption |
Icc |
|
1 |
|
Ma |
High Level Out |
Voh |
Vcc-0.25 |
Vcc |
|
V |
Low Level Out |
Vol |
|
|
0.25 |
V |
High Level Pulse Width Out |
Twh |
450 |
600 |
750 |
μ s (*1) |
Low Level Pulse Width Out |
Twl |
450 |
600 |
750 |
μ s (*2) |
Carrier Frequency |
Fo |
|
33—56 |
|
kHz(*3) |
Wave Length of The Working Center |
λp |
|
940 |
|
n m |
Receive Distance |
L |
8.0 |
|
|
m (*4) |
Receive Angle |
θ |
|
±45 |
|
deg |
Power Supply Voltage |
Vcc |
2.7 |
|
5.5 |
V |
