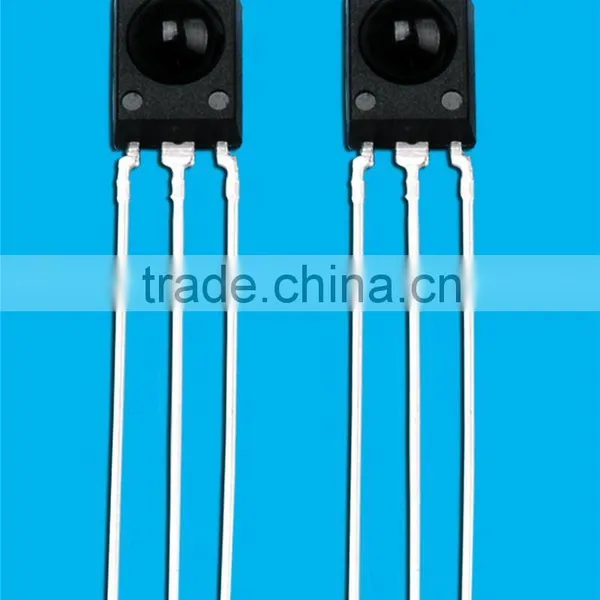

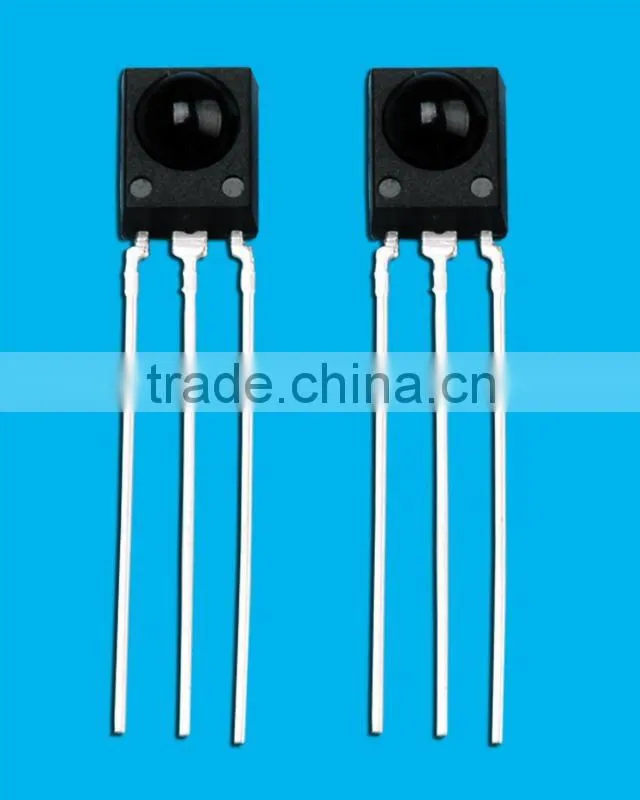

LF0038K infrared receiver module
Technology parameter
SIZE: 6.8(L)X6.0 (W)X5.6(H)mm
WORKING VOLTAGE: 2.7-5.5V(DC)
RECEIVE DISTANCE: 20-22 Meter
FEET SPACE BETWEEN: 2.54mm
FEET LENGTH: 27mm
LF0038K infrared receiver module is a small infrared receive unit , the key component in the inside part is full integrated IR Receiver . This component packs high –performance PIN Photo Diode together with IC chip which has the function of enlargement and demodulation by epoxy resin ,By this , LF0038K infrared receiver module can resist various kinds of visiable light interferences and electromagnetic interference . With the interior part set with power supply IC filter circuit , it can effectively solve the interference produced through extending the receiving circuit . The LF0038K infrared receiver module can makes remote control more flexbile and more convenient.
LF0038K infrared receiver module Products instruction
The moding standard package shape, small size, high sensitivity, anti light interference and anti-magnetic interference capability, stable performance, output matching TTL CMOS level, low level available.
LF0038K infrared receiver module be suitable products
Digital photo frame,car audio,AV products,air-condition etc.
The Limit Parameters
Item |
Symbol |
Limit Date |
Unit |
Power Supply Voltage |
Vcc |
6.0 |
V |
Voltage Out |
Vo |
6.0 |
V |
Using Temperature |
Topr |
-10--+60 |
°C |
Temperature in Store |
Tstg |
-20--+75 |
°C |
The Basic Parameters
Item |
Symbol |
The Minimum |
The Standard |
The Maximum |
Unit |
Current Consumption |
Icc |
|
1 |
|
Ma |
High Level Out |
Voh |
Vcc-0.25 |
Vcc |
|
V |
Low Level Out |
Vol |
|
|
0.25 |
V |
High Level Pulse Width Out |
Twh |
450 |
600 |
750 |
μ s (*1) |
Low Level Pulse Width Out |
Twl |
450 |
600 |
750 |
μ s (*2) |
Carrier Frequency |
Fo |
|
33—56 |
|
kHz(*3) |
Wave Length of The Working Center |
λp |
|
940 |
|
n m |
Receive Distance |
L |
8.0 |
|
|
m (*4) |
Receive Angle |
θ |
|
±45 |
|
deg |
Power Supply Voltage |
Vcc |
2.7 |
|
5.5 |
V |
