Specifications
1. GSM to VoIP gateway sip.2. Modular design, can be expandable to 96 channels.
3. Support GSM, E1 and FXS/FXO.

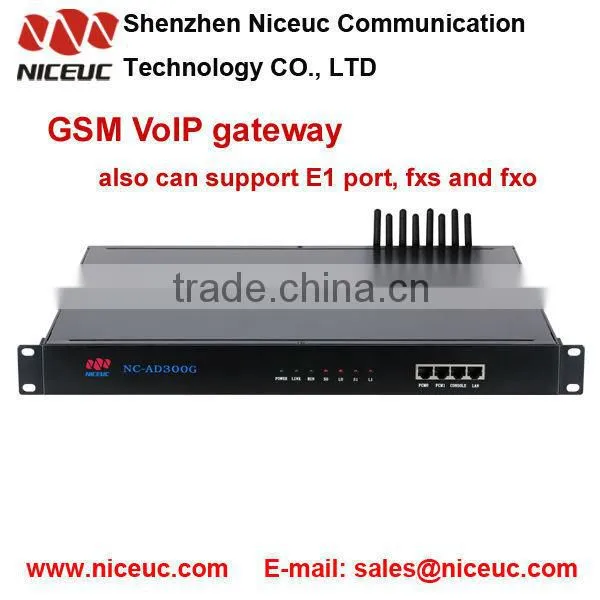

VoIP GSM Gateway SIP/GoIP with 1,8,16,32,64,104 GSM ports/channels
Compitable with Asterisk, Cisco call manager, Free switch, 3CX, Mircrosoft Lync, VOS, etc.
Configure, Monitor, Management, Backup, Update: by RS232 console port, Telnet, WEB.
Our service: 7*24 supports for ever.
Overview:
Niceuc VoIP GSM Gateway is for operators, enterprises, SOHO, virtual operators to offer affordable VoIP solutions. It is a full-featured IP-based GSM wireless network of VoIP gateways, which can provide stable network configuration, powerful features, good voice quality. This GSM Gateway uses the industry's popular chip technology to support E1, GSMCDMA, SIP, IMS interface, supports maximum 4 E1T1, 104 GSMCDMA, 128 SIP trunking. Our GSM gateway is not only full compatible with Asterisk and other leading soft switch, but also is a cost-effective gateway for call termination (VoIP to GSM) and origination (GSM to VoIP).
Product Features:
Multiple access way
·NGN/IMS/PSTN;
·GSM trunk;
·E1 port, support ISDN PRI, SS7, R2, V5.2, Q.SIG;
·IP trunk which is based on SIP and IMS;
System Functions
·Rotation of 8 SIM cards;
·Gain for the entire port;
·Selection of DTMF modes;
·Lock SIM card;
·Modification of PIN and IMEI;
·Anonymous calls;
·Sending / receiving SMS;
·Avariable for custom IVR recording;
·Black and white lists;
·Support one number-pass and open API;
·USSD;
·Support automatically selecting networks;
·Support Hotline and BCCH.
Management and maintenance methods
·Local and remote WEB management;
·Local and remote Telnet command line management;
·Console port - super terminal management;
Voice processing technology
·Voice Activity Detection (VAD);
·Comfort Noise Generation (CNG);
·Echo cancellation (Echo Cancellation);
·Dual-tone multi-frequency signals (DTMF) generation / detection;
·Caller ID (Caller ID) generation detection;
·Flexible input / output gain control;
Physical Specification:
Model No. |
NC-MG320-G |
NC-MG930-G |
Band |
85090018001900MHz |
85090018001900MHz |
VOIP Channels |
32 |
32-128 |
E1 Trunk port |
0 |
0-4E1 |
GSM port |
8-16 |
16-104 |
Ethernet Interface |
2(10/100/1000M Base-T ) |
2(10/100/1000M Base-T ) |
CONSOLE port |
1(RS232 PORT ) |
1(RS232 PORT ) |
Compatibility |
CISCO,Siemens,AVAYA,Huawei,ZTE |
CISCO,Siemens,AVAYA,Huawei,ZTE |
Input voltage |
DC -48V or AC 110-240V |
DC -48V or AC 110-240V |
Power |
25W |
100W |
Dimension |
480mm*286mm*44mm (1U) |
480mm*300mm*160mm (3.5U) |
Weight |
3.5KG |
10.5KG |
Environment |
0°C~50°C, Less 80% |
0°C~50°C, Less 80% |

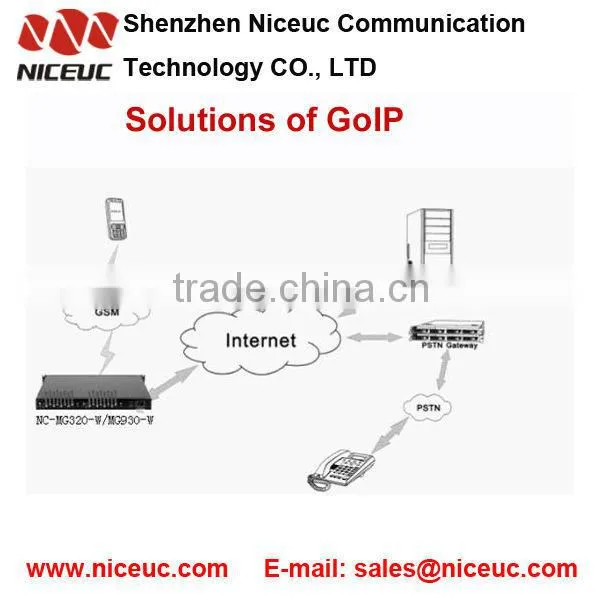

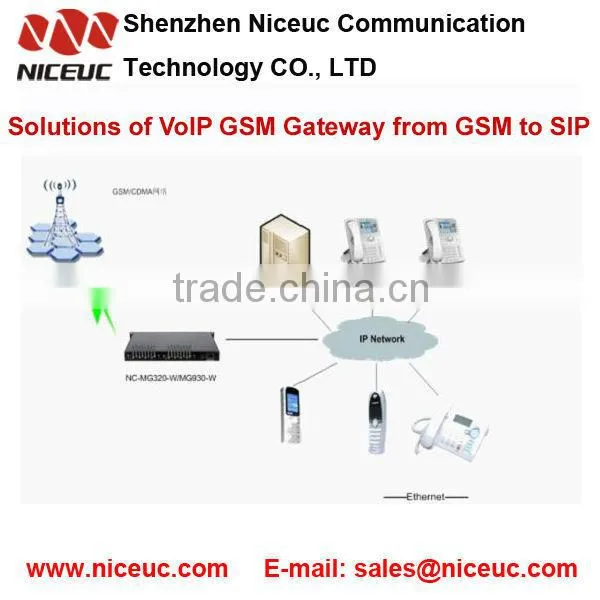

Application/Solutions:
