Home > Products > water filling machine > XGF series PET bottle pure drinking water filling machine
XGF series PET bottle pure drinking water filling machine
- 6 Unit / Units per Month
- Shanghai port
- T/T
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220/380/415V | Power: | 3kw | Place of Origin: | Jiangsu, China |
Brand Name: | Wanjin | Model Number: | XGF | Dimension(L*W*H): | As Required |
Weight: | 3000kgs | Certification: | CE/SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Drinking water filling machine
pure drinking water filling machine
PET bottle pure drinking water filling machine

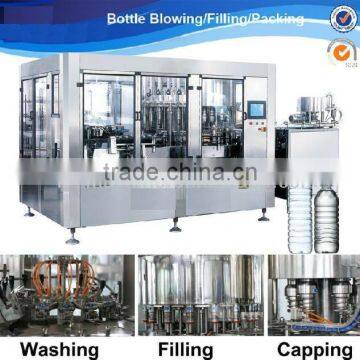

The equipment is used in production of non-carbonated drink of minerals and pure water packed in polyester bottles.Washing,filling and capping are integrated in one machine.The whole machine have scientifill and reasonable design.beautiful appearance,complete functions,easy operation and maintenance,a high degrea of automation.The most advanced technology Ltaly and Germany is employed in the design.The gravity fixed liquid surface filling is used.The filling is fast.the amount of liquid is accurately controlled and the dropping and leakage are avoided.Spring cramps are used in the bottle washing process.The empty bottles can be turned over 180 along the conveying rail.There are two times of internal and external washing.the efficient of bottle washing is high.The magnetic torque is used for screw capping.The power if screw capping can be adjusted without steps.The power of the screw capping can also be fixed,and the caps will not be damaged.the capping is reliable .The whole machine is controlled by PLC with touch-screen as the human.machine interface.The amount of the drinks in the storage tank can be controlled automatically.The frequency changing technology is used to adjust the operation speed steplessly.The production capacity can be displayed digitally and can be adjusted convenientlty.
Main Technological Data

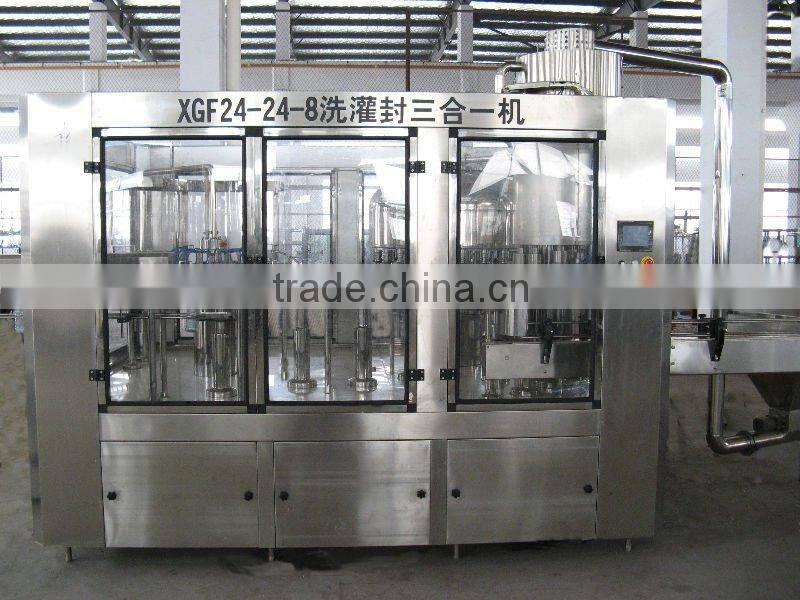

Model | XGF 16-12-6 | XGF 16-16-6 | XGF24-24-8 | XGF 32-32-10 | XGF 40-40-12 |
Caoacity(500ml/bottle/h) | 3000-4000 | 5000-6000 | 8000-10000 | 12000-14000 | 15000-18000 |
SuitableBottle | circular or spuare | ||||
Bottle diameter(mm) | 50-90 | ||||
Bottle heightmm | 150-310 | ||||
Compressed air pressure(Mpa) | 0.3-0.7 | ||||
Washing medium | aseptic water | ||||
Washing water's pressureMpa | 0.25 | ||||
Total Power(kw) | 4.4 | 4.4 | 5.2 | 6.2 | 7.8 |
Overall dimensions(mm) | 2230*1630*2250 | 2360*1830*2250 | 2900*2200*2250 | 3880*2200*2250 | 3700*3000*2350 |
Weight(kg) | 2200 | 2500 | 4200 | 6000 | 7000 |
Wahing heads

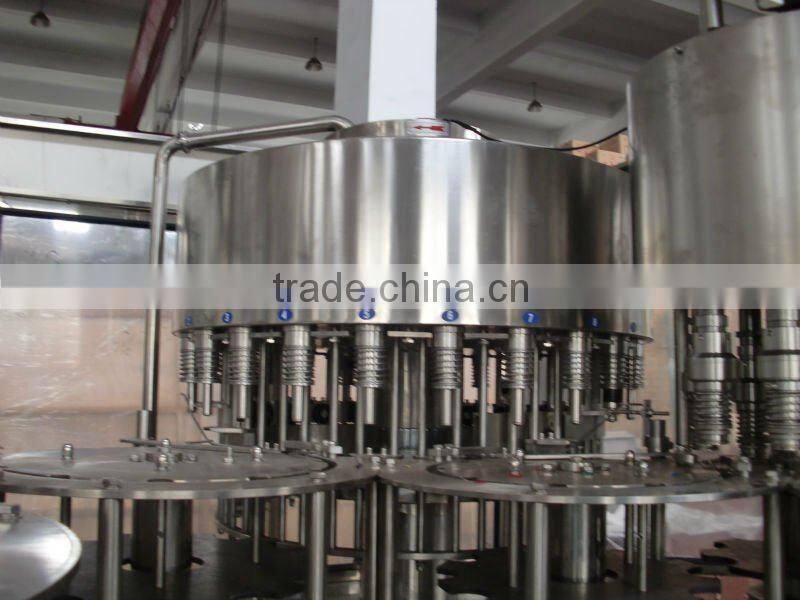

Filling heads
Capping parts
3 in 1
packing
