Product Details

Condition	New	Application	Beverage
Packaging Type	Bottles	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220/380/415V	Place of Origin	Jiangsu, China
Brand Name	Wanjin	Model Number	XGF40-40-10
Dimension(LWH)	As Required	Weight	3000kgs
Certification	CE/SGS	After-sales Service Provided	Engineers available to service machinery overseas

Our Services

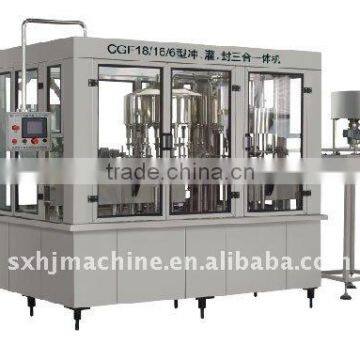

XGF18000bph automatic drinking water bottle filling machine

1.filling speed:2000-20000bph
2.bottle :PET &Glass
3.bottle size:250ml-2000ml.
4.Material:SS304

Main Features:

1.Air Conveyor connectes with bottle-in starwheels. Bottle neck holding transferred.

2.Clamp transferring technology varied bottle types.

3.With little abrasion. Stable Transferring. Easy to change bottles.

4.With ring type pressure bearing hydraulic cylinder.

5.With high filling speed and exact liquid level.

6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles. 8.Easy to operate and maintain.

9.PLC and transducers and othe main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

Mode	XGF14-12-5	XGF18-18-6	XGF24-24-8	XGF32-32-10	XGF40-40-10	XGF50-50-12	XGF60-60-15
wahing/filling Heads	14-12-5	18-18-6	24-24-8	32-32-10	40-40-10	50-50-12	60-60-15
capping heads
Capacity(BPH)	2000-4000	5000-6000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000
bottle type	φ=50-108 H=170-340 330ml-2000ml
Rinsing with water pressure(mpa)	0.2-0.25
power (kw)		2.2kw	3kw	4kw	7.5kw	9.5kw	12kw
Dimension(mm)	21001400 2500	24601720 2650	3100x2100 x2650	3500x2500 x2650	4600x1800 x2650	5200x4500 x3400	6500x4500 x3400
(LxWxH)
Weight(kg)	2500	3500	4200	5500	6800	7600

Washing heads

Filling heads

Capping heads
