MG930-X 32 fxs fxo port Integrated gateway tetra gateway
Overview:
Integrated Access Device Communications series is to develop products for specific applications, using the industry's popular chip technology to support E1, GSMWCDMA, PTT interfaces, FXO FXS, SIP, IMS interface, support for X86 industrial control panels, supports up to 4 ports E1T1, 96 ports GSMCDMA, 192 ports FXOFXS, 128 SIP trunks. Mainly used in IPCC, IP Dispatching, unify communications and some specific industries.
Host box description:
1. NC-MG320-X chassis contains a control board slots, a service board slots, built-in 16FXO FXS, built-X86 industrial control panel.

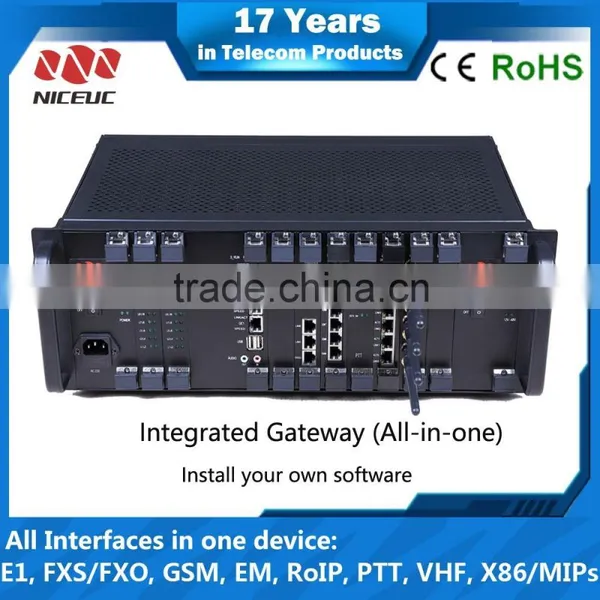

2. NC-MG930-X chassis contains two slots for power supply board, one MPU slot, other 12 slots for various business boards.
NC-MG930 uses advanced hardware and software technology and carrier-class design to ensure the high reliability of equipment. The system of NC-MG930 uses the mature high-performance CPU and DSP; and uses embedded real-time operating system and efficient algorithm, so it has excellent properties. With modular design of inserting board, NC-MG930 is expandable by your requirement.
Introduction for each board:
1. Power supply board:DC-48V or AC 110-240V supports hot standby.
2. MCU board: 1-4 E1 interface support for SS7PRIR2Q.SIGV5.2 signaling, 128 G.711 channels, 64 G.729, G.723, G.726 channel, 32 T.38 fax channels.
3. PTT interface board (Push to Talk, or RoIP):1-4 PTT interfaces, complete intercom voice signals into IP signals, access to the Professional Edition or Standard Edition RoIP groups to achieve the client and the host or the PSTN intercom communication.
4. GSMCDMAWCDMA interface board: 8 channels GSMCDMAWCDMA interface module supports voice and sms.
5. Analog User board: 16 ports FXOFXS module supports hot-plugged.
6. LAN switch board: as one LAN switch with 6 ports 10/100M.
7. Computer X86 Industrial Module:
·CPU: Intel Atom Dual Core N2600 1.66 GHz;
·1 x 2/4GB CF on PCIe
·1 x 32GB mSATA SSD on mSATA port
·1 x 500GB SATA on SATA port (Notebook hard drive)
·2 x USB 2.0 ports on front panel
·2 x 10/100/1000 Ethernet ports on front panel
·1 x RS-232 Serial port (as Console) on front panel
·1 x Audio In port on front panel
·1 x Audio Out port on front panel
·1 x VGA port as pin-header on x86 board (VGA port can be used with a cable)
·1 x Additional USB 2.0 port on x86 board as pin-header
·1 x Additional RS-232 port on x86 board as pin-header
·1 x software programmable button on the front panel
8. MIPs board:
·Basic: 4-core, 1.2GHz, 1G or 2G memory, and eMMc 8GB;
·Additional function 1: 16 ports FE as LAN switch;
·Additional function 2: Ethernet Mirror;
Both X86 and MIPs boards are hardware, they are used for installing/loading customers’ own software.
9. E&M board:2 wire or 4 wire E&M; Support three standard types: I, II, V; Hot-plugged;
Each board supports 4 or 8 ports E&M; the physical specification of E&M port is RJ45.
Audio gain of each port can be adjusted independently by software.
Function and Features:
Carrier-class reliability
·With a new generation of processor, a separate high-end DSP processing chip and powerful hardware processing, ensure that the equipment at full load conditions remained stable and reliable;
·99.99% availability, support continuous long talk at least 48 hours;
·Support over-current protection function on POTS interfaces ;
·Support the protection of lightning, surges, power lines and other protective lap;
·Full compatible;
Excellent voice communication quality
·Voice Activity Detection (VAD), to effectively save bandwidth resources;
·Comfort Noise Generation (CNG), to provide the same experience as PSTN in calls;
·Adaptive dynamic buffer technology, to meet the application under bad network;
·G.168 128ms echo cancellation technology. This indicator is far higher than the same kind of PBX, eliminating the echo interference caused by long distance call;
·DTMF detection / generation technology, to effectively support the business of the fax, callback, second dial.
Plentiful business functions
·Modification between calling number and called number;
·As a terminal, support the register trunk function to other GK(Gatekeeper) or SIP Server.
·As a gateway, support the control from superior GK or SIP Server to complete the trunking calls;
·Support any switch among E1, GSM, PTT, FXO, FXS, SIP, IMS;
·Support automatic routing function;
·Support high capacity of black and white lists;
·Simultaneously support the register of 4 SIP Server;
·Support output of CDR;
·Fax support T.30, T38 and pass through;
·Support reelection function;
·Support detection of calling number and display of call ID;
·Support generation of dial tone, ring back tone, etc.;
·Port supports gain and comfort adjustment of noise;
·Multi-router and multi-bureau management, group, cluster and exchange management, intelligent routing distribution and equal traffic sharing;
·Support function of dividing groups, for the incoming calls, the subscriber line can be set to line up or take turns to choose;
·Flexibly control the incoming and outgoing of lines, the lock of long-distance calls can be controlled by the phone;
·Complete call functions,it can provide several kinds of call functions and special call way by customer's request;
·The voice processing capacity support voice play with built-in computer operator;
·High processing capacity in conference;
·Monitor and handle real-time telephone traffic;
Item Name |
Details |
Port |
E1 (ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS), FXO/FXS, GSM/CDMA/WCDMA, E&M, PTT, LAN, Industrial computer and SIP, etc. |
VoIP Protocol |
SIP: RFC3326(Reason header in SIP messages) RFC3372(SIGTRAN and SIP-T) RFC2327(sdp) RFC3398(ISUP-SIP Mapping) RFC3261(sip) RFC5806(Diversion Indication in SIP) RFC2833( DTMF ) RFC3362(t.38) RFC 3261(SIP 2.0) RFC3204(MIME media types for ISUP and QSIG Objects) RFC3578(Mapping of ISUP overlap to SIP) |
Codec |
G.711 U-Law and A-Law, G.711 Appendix 1, G.723.1 and G.723.1 Annex A, G.729 Annex A and Annex B, G.726,GSM,ARM,ILBC |
Fax Protocol |
T30, T38 and pass through |
Network Protocol |
IP,NAT,ICMP,ARP,HTTP,BOOTP,FTP,TFTP,DHCP,PPPOE,SNMP,Diff-Serv |
Echo Cancellation |
G.168 128ms |
Application Secenerio 1 or Solutions of Integrated Access Gateway NC-MG930-X
| Item | NC-MG320-X | NC-MG640-X | NC-MG930-X |
| Analog FXS Interface | 32 ports | 64 ports | 192 ports |
| FXO Trunk | 32 ports | 64 ports | 192 ports |
| E1(PCM) Trunk/ISDN Port | 0 to 4 E1 | 0 to 4 E1 | 0 to 4 E1 |
| GSM/CDMA/WCDMA ports | 16 | 32 | 64 |
| VoIP IP Channels (SIP trunks) | 32 | 128 | 128 |
| IP Terminals/SIP users | 16 to 1024 | 16 to 1024 | 16 to 1024 |
| E&M ports | 16 | 32 | 96 |
| PTT (Push To Talk) lines | 8 | 16 | 48 |
| MIP cards (used to install customer's software) | Available | ||
| Ethernet Interface | 2 LAN ports (10/100/1000M Base-T) | ||
| Console Port | 1 RS232 port | ||
| Compatibility |
Asterisk, Free switch, 3CX,CISCO, Siemens, AVAYA, Huawei, ZTE, etc. |
||
| Input Voltage | |||
| Power | 40W | 80W | 150W |
| Telephone Line Transmission Distance (KM) | 5 | 5 | 5 |
| Device Dimension (MM) |
480*286*44 (2U) |
480*300*88 (2U) |
480*300*160 (3.5U) |
| Weight (KG) | 5.5 | 7.5 | 10.5 |
| Work Environment | 0℃~50℃, Less 80% | ||
Application Secenerio 1 or Solutions 1 of Integrated Access Gateway NC-MG930-X
Skype:nice_joy WhatsApp:0086-18312568602
Q: Are you trading company or manufacturer ?
A: We are factory in Telecom product from 2000 year.
Q: How long is your delivery time?
A: Generally it is 2 days only, or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: How long is warranty?
A: Usually warranty is one year. If you need, we can provide with 3-years warranty.
Q: How is the technical support?
A: 7*24 hours support for ever.
Q: How can I get a sample?
A: By place an order or pay a rent, then we will ship in 2 days by Express.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Modular Design, Easy Expansion
All kinds of our products use modular design, it is very easy to expand capacity by inserting modules. At first, you can place an order with small capacity, after testing, if you want to expand, it is no need to change a device, just need to buy some modules, it is very convenient.

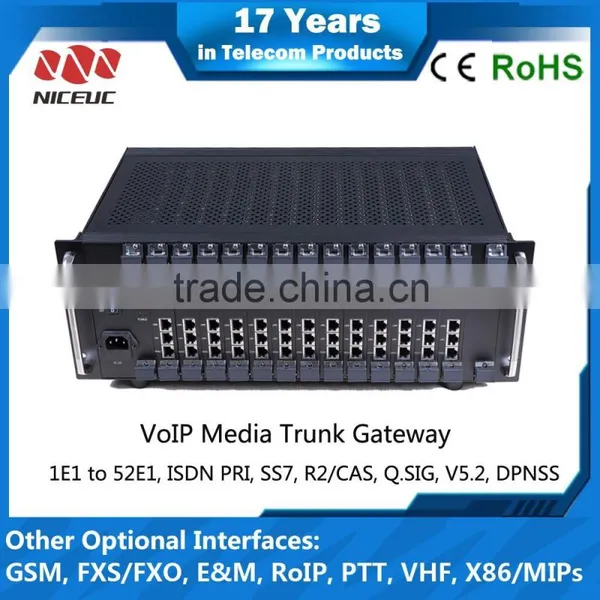

All kinds of signalings on E1 ports
We have been producing E1 products from 2001 year. So we have excellent experience on E1 ports, they support all kinds signaling like ISDN PRI, SS7, R2/CAS, Q.SIG, V5.2, DPNSS, etc. Make connection between different signalings or between PSTN and Ethernet.
All-in one interface on one device
With independent self-development ability, all kinds of interfaces can be supported by one device in our company: E1, FXO/FXS, GSM/CDMA/WCDMA, E&M, Magnet, Radio/VHF/PTT, X86/MIPs. You can install your own software into our gateway by X86 or MIPs card.
Be a Manufacturer for 17 Years
We are a professional Manufacturer and national high-tech enterprise in Telecom products from 2000 year.
We can open our registeration number to every customer. Register No.:440301104600108, if you like, you can use this number to trace and check our company and history in Chinese goverment official system.
Self-developed Ability
Independent self-developed ability let us make development according to customer's special request.
So Many Big Customers
So many big customers from all over the world have been buying our products because of stable quality.
As one supplier of Huawei, we will provide you with Huawei's quality by low price. Please feel free to contact us from now, thank you. (WhatsApp:+86-18312568602, Skype: nice_joy)
