Trade Assurance China Fire Tube Industrial Horizontal Hydrogen Boiler for Heating

Trade Assurance China Fire Tube Industrial Horizontal Hydrogen Boiler for Heating photo-1
US$ 2,596.66 - 13,968.05 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure Low Pressure
Style Horizontal
Fuel Other, light oil,natural gas
Place of Origin Henan, China
Brand Name dingsheng
Model Number YYW3(250)
Output Other, heat
Dimension(L*W*H) 2320mm*2620mm*5300 mm
Weight 1.93t
Certification ISO9001:2008, ISO, CE,CCC
After-sales Service Provided Engineers available to service machinery overseas



Trade Assurance china fire tube industrial horizontal hydrogen boiler for heating



Specifications

Heat Boiler
1.35 years experience in manufacturing and designing
2.Efficiency 90%
3.temperature320 centigrade
4.ISO



Producr information



HYDROGEN (oil)Heat Transfer Fluid heaters(hot oil heater)to oil (gas)as fuel to oil as medium,using hot oil circulation pumps mandatory medium for liquid circulation,the energy delivery device and then return to Heat re-heating furnace with low pressure in the working temperature was high,and can run on medium high-precision control.System with high thermal efficiency,due to the overall module installation,operation and easy maintenance,is a safe,efficient,energy saving ideal choice for heating equipment.Fuel oil(gas)from the burner flame after ignition temperature generated within the coil rotated by 180.into the rear forward,the foreign control of the mezzanine area convection heating surface.Then enter the upper mezzanine,the outer coil of the second mezzanine area,in the second mezzanine area to the rear of the chimney into the atmosphere.





Product Effects



1. It is convenient to be adjusted, and can supply balanced heat to satisfy the hard work required to precise temperature.



2. Liquid circulation heating, less heat loss, high thermal efficiency.



3. Working medium can change volume when it was heated and release heat .and we have compensation technique measures in the system.



4. We have strictly technical measures to control air, water and other low volatile matters content of the working medium in the circulation heating



5. The series boiler have advanced program control system, equipped with liquid level controller, pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.



3.Technical parameters

Fuel(Gas)Organic Heat-Carrier Boiler
Type YYW0.24(20) YYW0.35(30) YYW0.6(50) YYW0.9(75) YYW1.2(100) YYW1.5(235) YYW1.8(150) YYW2.5(200) YYW3(250)
Rated thermal
 power(mw)
0.24 0.35 0.6 0.9 1.2 1.5 1.8 2.5 3
Thermal
efficiency(%)
90 90 90 90 90 90 90 90 90
Rated Steam
 Pressure(Mpa)
1 1 1 1 1 1 1 1 1
Maximum working
 temperature
350 350 350 350 350 350 350 350 350
Capacity 0.21 0.25 0.28 0.44 0.64 0.793 1.25 1.76 1.9
Circulating oil 40 40 80 80 80 100 100 200 200
Piping connection
 diameter(DN)
100 100 100 100 125 125 125 150 150
System installed
 capacity(KW)
14 14 22 22 40 40 40 66 70
Size Diameter 1016 1016 1216 1416 1716 1716 2000 2000 2320
Height 2050 2350 2450 2900 3300 3900 4100 5100 5300

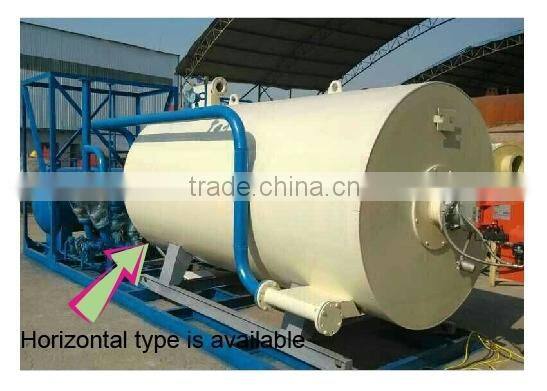

4.Boiler in workshop



Product Overviews



Trade Assurance china fire tube industrial horizontal hydrogen boiler for heating

Trade Assurance china fire tube industrial horizontal hydrogen boiler for heating

Production line

We have the first-class production lineTrade Assurance china fire tube industrial horizontal hydrogen boiler for heating

Certifications

Trade Assurance china fire tube industrial horizontal hydrogen boiler for heatingTrade Assurance china fire tube industrial horizontal hydrogen boiler for heating

Our customers

Trade Assurance china fire tube industrial horizontal hydrogen boiler for heating








Our Boiler annual production capacity of 400 ZhengDun, achieve 2007 sales of more than 5000 ten thousand yuan, profit tax of 8 million yuan.

 I f you have any enquires about our products , please feel free to contact us, we will try our best to satisfy you, thank you for supporting
