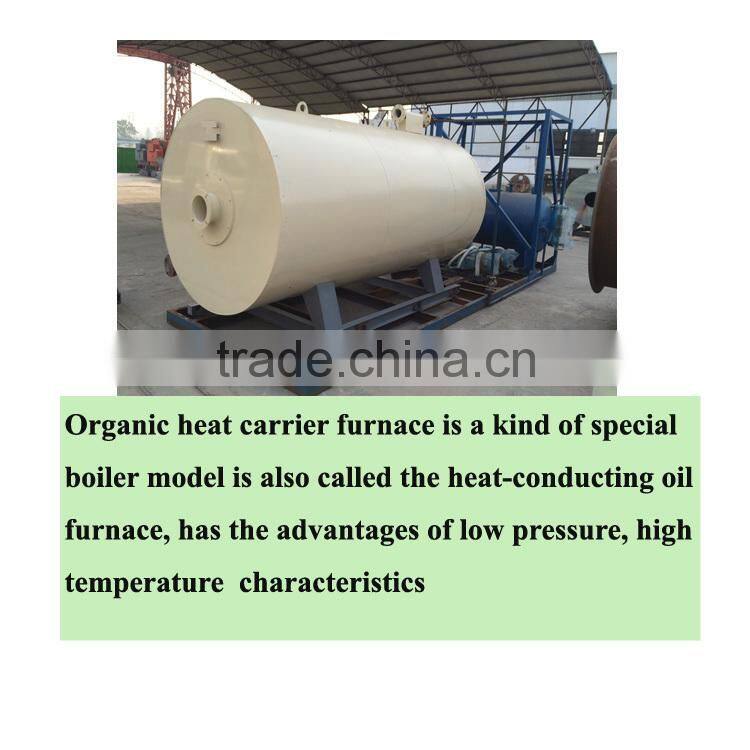

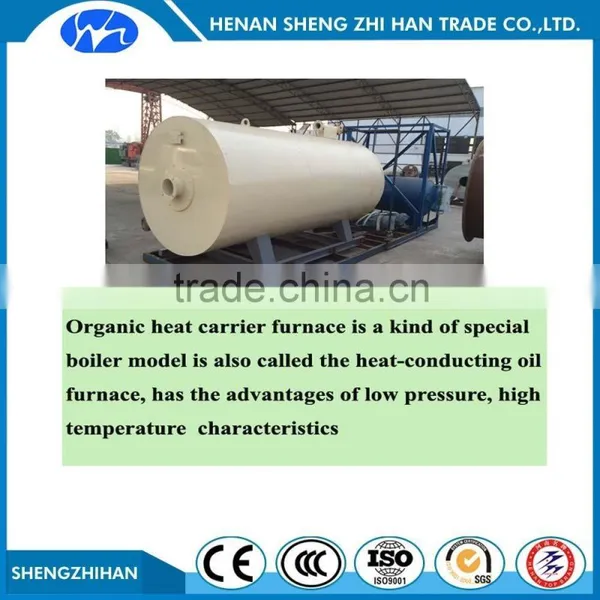

Trade Assurance high efficiency Organic Heat-Carrier power plant boilers
Specifications
Heat Boiler
1.35 years experience in manufacturing and designing
2.Efficiency 90%
3.temperature320 centigrade
4.ISO
1. This series boiler takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make Liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
2. So the boiler can get higher working temperature at low pressure, and make a better usage of heat, it is a kind of safe boiler with high efficiency and low power consumption.
3. The fuel (oil, gas) light a fire by burner to produce flame and flame goes into the internal coil to form radiation heating surface.
4. Then it through rear coil tube forward rotated 180 ° into the tubes and to circulate into second interlayer, finally it will enter the atmosphere.
1. It is convenient to be adjusted, and can supply balanced heat to satisfy the hard work required to precise temperature.
2. Liquid circulation heating, less heat loss, high thermal efficiency.
3. Working medium can change volume when it was heated and release heat .and we have compensation technique measures in the system.
4. We have strictly technical measures to control air, water and other low volatile matters content of the working medium in the circulation heating
5. The series boiler have advanced program control system, equipped with liquid level controller, pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.
3.Technical parameters
| Fuel(Gas)Organic Heat-Carrier Boiler | ||||||||||
| Type | YYW0.24(20) | YYW0.35(30) | YYW0.6(50) | YYW0.9(75) | YYW1.2(100) | YYW1.5(235) | YYW1.8(150) | YYW2.5(200) | YYW3(250) | |
| Rated thermal power(mw) |
0.24 | 0.35 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.5 | 3 | |
|
Thermal efficiency(%) |
90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Rated Steam Pressure(Mpa) |
1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
|
Maximum working temperature |
350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | 350 | |
| Capacity | 0.21 | 0.25 | 0.28 | 0.44 | 0.64 | 0.793 | 1.25 | 1.76 | 1.9 | |
| Circulating oil | 40 | 40 | 80 | 80 | 80 | 100 | 100 | 200 | 200 | |
| Piping connection diameter(DN) |
100 | 100 | 100 | 100 | 125 | 125 | 125 | 150 | 150 | |
|
System installed capacity(KW) |
14 | 14 | 22 | 22 | 40 | 40 | 40 | 66 | 70 | |
| Size | Diameter | 1016 | 1016 | 1216 | 1416 | 1716 | 1716 | 2000 | 2000 | 2320 |
| Height | 2050 | 2350 | 2450 | 2900 | 3300 | 3900 | 4100 | 5100 | 5300 | |
4.Boiler in workshop
We have the first-class production line
Before the products leave our factories, all the matters relevant to product will be undertaken by our company, such as equipment decoration in product room and also satisfactory, free-charge service will be offered by us until the turn-key project. The replacement is guaranteed if any problem concerning the product quality arises within a year.
In the manufacturing process, clients are quite welcome to our factory to examine the actual quality and to carry out the follow-up inspection.
Our Boiler annual production capacity of 400 ZhengDun, achieve 2007 sales of more than 5000 ten thousand yuan, profit tax of 8 million yuan.
I f you have any enquires about our products , please feel free to contact us, we will try our best to satisfy you, thank you for supporting
