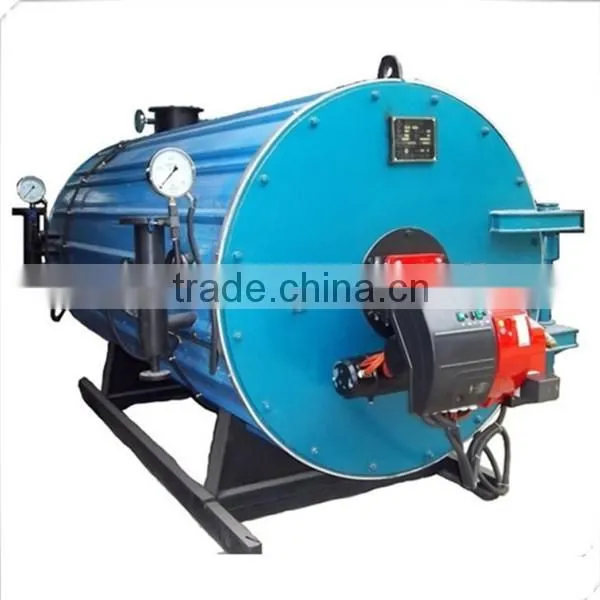

Chinese hot oil boiler for resin setting machines

Chinese hot oil boiler for resin setting machines

Flame and high temperature smoke produced by complete burning of fuel (coal, oil, gas, etc.)

exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, t

he organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.

Process feature: low pressure and high temperature

Product feature:

1. High temperature in a low pressure

2. Stable heat system

3. Easily temperature control.

3. High heat efficient

4. Excellent operation control system

5. Safe monitor device

6. Less water, electricity, production cost

Technique data

Rated thermal power is 0.12Mw (10,104kcal/h) to 14Mw (1200,104kcal/h).

Design pressure is equal to or greater than 1 Mpa.

Operating temperature is equal to or less than 350C.

Thermal efficiency is between 60% and 85% according to the difference of boiler type.

Fuel

Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust, coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.

Application of Industrial thermal oil boiler for  drying equipment  .

Inner  of hot oil boiler :transfer heat

1.Chemical Industry --polymerization industry ,oil industry, reaction tank,distillation ,enrichment

 2. Plastic industry ---plastic and squeeze to finalize the design

 3. Textile industry --resin stenters ,dyeing machine and the dry room ,high temperature machine,

roller.

 4.Rubber industry -rubber vulcanization heating

 5.Food industry --cooking  dry,vegetable oil refining

 6.Wood industry --heating to finalize the design of chipboard sandwich plate ,wamu board,fiber

 7.Paper industry-multi-layer cardboard of packed carton box ,dying and desiccation

 8.Others-heating of metal electroplating slot ,coating condensation ,drying ,distillation of

pharmaceutical industry, reduction ,concentration,dehydration,airconditioning industry.etc

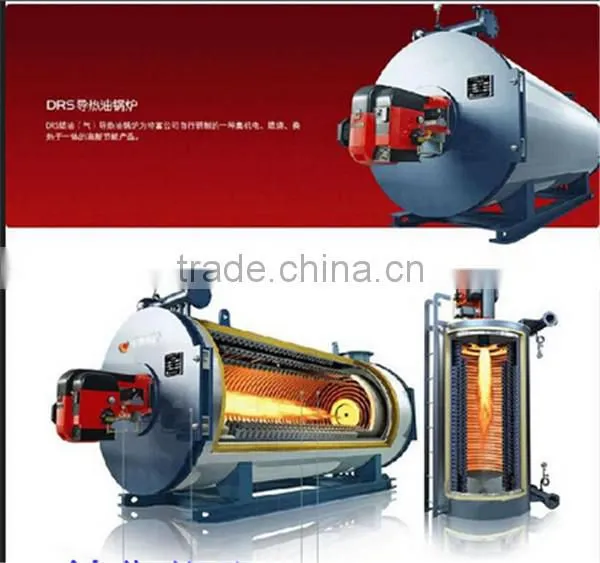

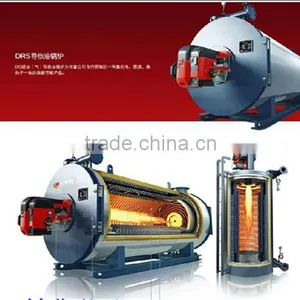

Inner of  Industrial thermal oil boiler Organic Carrier Boiler for oil chemistry

tubes in   Industrial thermal oil boiler for  drying equipment

Industrial Industrial thermal oil boiler for  drying equipment   installation spot:

installation spot or site:

Industrial thermal oil boiler for  drying equipment
PARAMETERS:

other product in our company:

-

 Below is my contact ,if you have any question ,don't hesitate to contact with me,we will offer best service for you !
