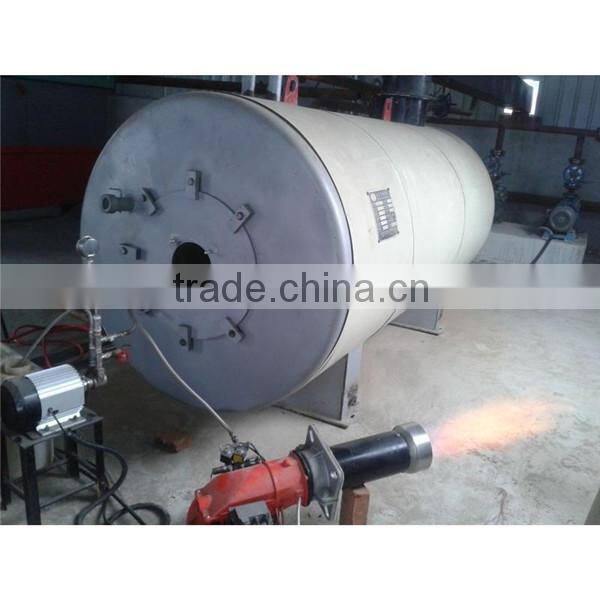

Fuel Oil/Gas Fired Organic Heat Carrier Boiler for drying equipment
Industrial thermal oil boiler for drying equipment
Flame and high temperature smoke produced by complete burning of fuel (coal, oil, gas, etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.
Process feature: low pressure and high temperature
Product feature:
1. High temperature in a low pressure
2. Stable heat system
3. Easily temperature control.
3. High heat efficient
4. Excellent operation control system
5. Safe monitor device
6. Less water, electricity, production cost
Technique data
Rated thermal power is 0.12Mw (10,104kcal/h) to 14Mw (1200,104kcal/h).
Design pressure is equal to or greater than 1 Mpa.
Operating temperature is equal to or less than 350C.
Thermal efficiency is between 60% and 85% according to the difference of boiler type.
Fuel
Coal, water gas, city gas, mixed gas, light oil, heavy oil, residual oil, mixed oil, coal dust, coal water slurry, saw dust, bagasse, straw, waste oil and waste liquid.
Application of Industrial thermal oil boiler for drying equipment r .
1.Chemical Industry --polymerization industry ,oil industry, reaction tank,distillation ,enrichment
2. Plastic industry ---plastic and squeeze to finalize the design
3. Textile industry --resin stenters ,dyeing machine and the dry room ,high temperature machine,
roller.
4.Rubber industry -rubber vulcanization heating
5.Food industry --cooking dry,vegetable oil refining
6.Wood industry --heating to finalize the design of chipboard sandwich plate ,wamu board,fiber
7.Paper industry-multi-layer cardboard of packed carton box ,dying and desiccation
8.Others-heating of metal electroplating slot ,coating condensation ,drying ,distillation of
pharmaceutical industry, reduction ,concentration,dehydration,airconditioning industry.etc
Fuel Oil/Gas Fired Organic Heat Carrier Boiler for drying equipment
| Type | YYW0.24(20) | YYW0.35(30) | YYW0.6(50) | YYW0.9(75) | YYW1.2(100) | YYW1.5(235) | |
| Rated thermal power(mw) |
0.24 | 0.35 | 0.6 | 0.9 | 1.2 | 1.5 | |
| Thermal efficiency(%) |
90 | 90 | 90 | 90 | 90 | 90 | |
| Rated Steam Pressure(Mpa) |
1 | 1 | 1 | 1 | 1 | 1 | |
| Maximum working temperature |
350 | 350 | 350 | 350 | 350 | 350 | |
| Capacity | 0.21 | 0.25 | 0.28 | 0.44 | 0.64 | 0.793 | |
| Circulating oil | 40 | 40 | 80 | 80 | 80 | 100 | |
| Piping connection diameter(DN) |
100 | 100 | 100 | 100 | 125 | 125 | |
| System installed capacity(KW) |
14 | 14 | 22 | 22 | 40 | 40 | |
| Size | Diameter | 1016 | 1016 | 1216 | 1416 | 1716 | 1716 |
| Height | 2050 | 2350 | 2450 | 2900 | 3300 | 3900 | |

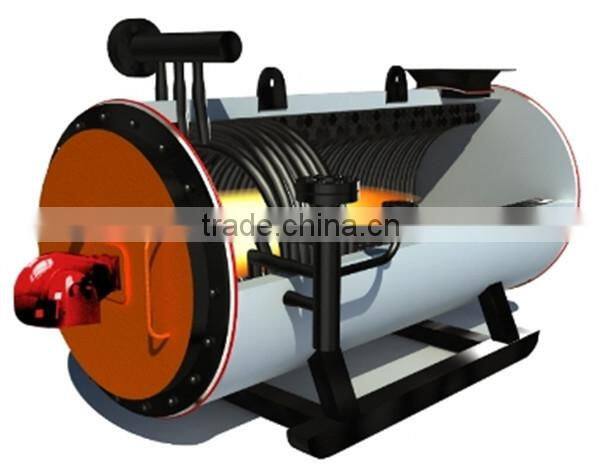

Inner of Industrial thermal oil boiler Organic Carrier Boiler for oil chemistry

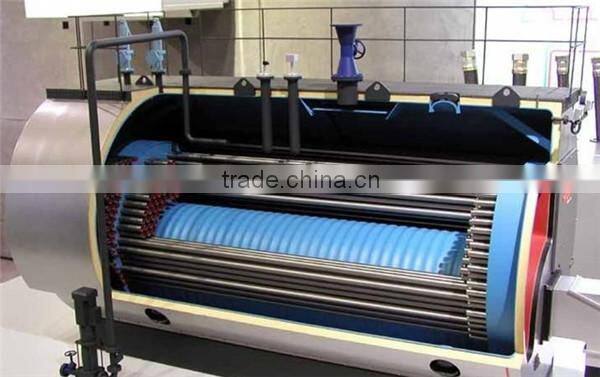

tubes in Industrial thermal oil boiler for drying equipment

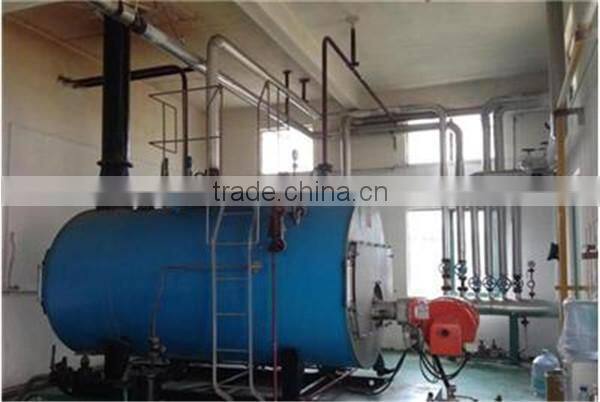

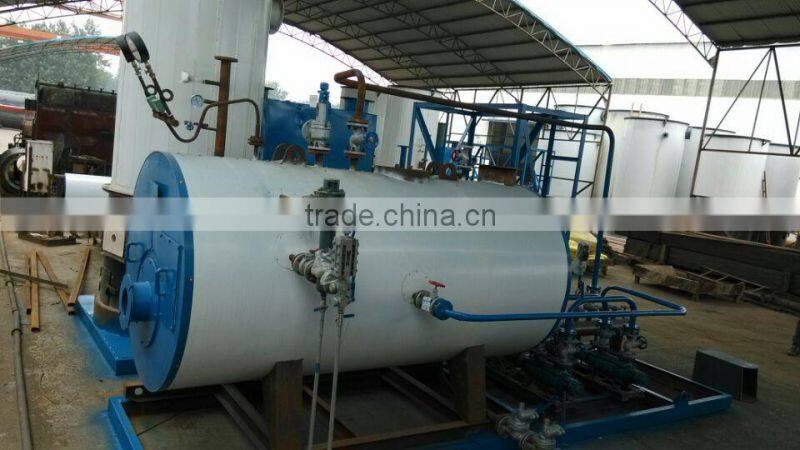

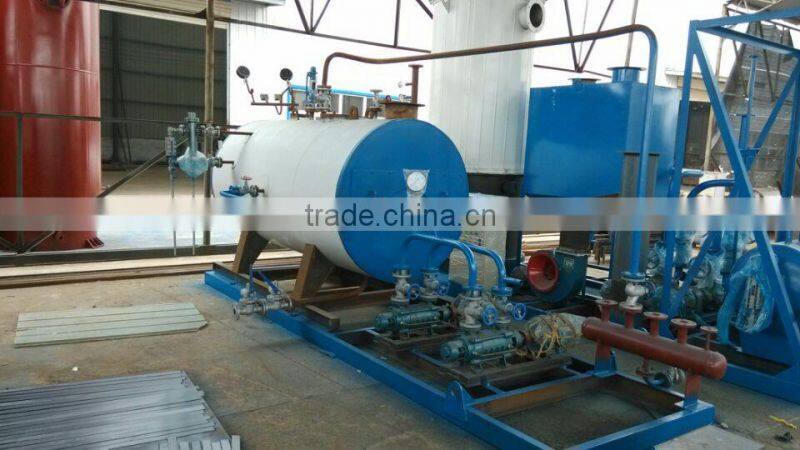

Industrial Industrial thermal oil boiler for drying equipment installation spot:
installation spot or site:

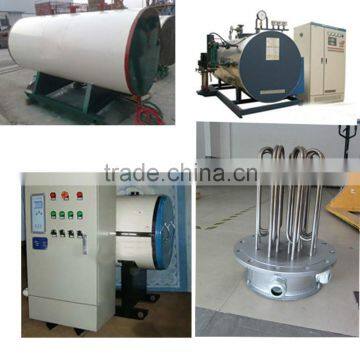

other product in our company:
-
Henan Sheng Zhi han Import and Export Trade Co., Ltd. is vetted and approved by the National Foreign Trade and Economic Cooperation, enjoy the right to operate import and export trade of the joint-stock company. The company diversified mode of operation, import, and export agent for sale, re-export trade, mainly engaged in boilers, reactors, pressure vessels and other mechanical equipment, products are mainly exported to Russia, Mongolia, Korea, Vietnam, Nigeria, Ethiopia, Burma and Southeast Asia, Africa countries and regions.
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a 30 years old industrial boiler factory, specializing in gas and oil fired boilers. Now we are one of leading industrial boiler manufacturers in China.
Q2: What is the Warranty for the boilers?
A2: You will get eighteen months (18) warranty counting from the issue date of B/L or fourteen (14) months from the date of commissioning,
whichever is earlier. If any quality problems on our side occurred in this period, you will get replacement for free.
Q3: Can we get installation and commissioning service?
A3: Yes, commissioning engineers would be available per your request, but it is charged. As for installation, it is unavailable at this moment.
Q4: How long should we wait for delivery?
A4: Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.
Q5: What about your payment term?
A5: Usually it would be 50% deposit payment, 50% balance before delivery. We accept T/T, L/C and other payment way.
Below is my contact ,if you have any question ,don't hesitate to contact with me,we will offer best service for you !
Forced-circulation Fuel Oil(gas) Package Boiler YYW boiler, Industrial thermal oil boiler price YYW boiler, Industrial thermal oil boiler Plywood ,polystyrene board heat setting
