Pressure Vessel FF type Glass-lined Reactors
1.Design Pressure Vessel=0.2MPa,0.4MPa,0.6MPa,1.0MPa
Jacket=0.6MPa
2. Pressure Vessel Agitator Different Types (Optional)
3. Pressure Vessel Reducer Vertical Type
4. Pressure Vessel Seal Stuffing Seal(0.2MPa)
Single Mechanical Seal(0.4MPa),
Double Mechanical Seal(0.6MPa,1.0MPa)
5.Glass lined reactors with design pressure greater then 0.6MPa inside the vessel should be
ordered separately.
6.Major dimensions of reactors conform to the National Standard for Glasslined Equipment,and
modifications have been made for improvement by our company.
Pressure Vessel features:
- 1.Acid and alkali resistant;
- 2.Anticorrosion;
- 3.Jacketed.
-
1.Glass lined reactor
K-type (50L----12500L)
F-type (1000L----30000L)
2.Electrical-heating Glass lined reactor
K-type(50L----3000L)
3.Stainless steel reactor
50L----10000L
4.Glass lined storage tank
Horizontal type(3000L----50000L)
Vertical type(3000L----50000L)
5.Glass lined distiller
K-type(300L----3000L)
F-type(3000L----10000L)
- Accessories
Stirrer
Tower section
Electric motor
Gear reducer
(1)allowable pressure (unit:Mpa)
Sealing form |
Stuffing seal |
Mechanical seal |
|
Pressure parts |
In-tank |
≤0.1 |
(0.1----1.0) |
Jacket |
≤0.6 |
||
(2)allowable temperature
0----200 centigrade for stirrer;
0----150 centigrade for tank.
(3)thickness of glass layer:(mm)
0.8----2.0mm for the kettle;
0.6----2.3mm for accessories.
(4)Standard thickness of steel plate:(mm)
Capacity |
Kettle |
Jacket |
50----500L |
8 |
6 |
1000L |
10 |
6 |
1500L----2000L |
12 |
8 |
3000L |
14 |
10 |
5000----6300L |
16 |
10 |
8000L |
18 |
12 |
10000L and above |
20 |
12 |
(5) Pressure Vessel accessories:
for reactor: agitator,electromotor,reducer,mechanical seal;
for distiller: tower section.
Operating Principle of
Glass-lined Reactors
The operating principle of reactor is:When you put reaction solvent inside of vessel,it could be stirred,so that cold and heat sources(refrigerating fulid, hot water or oil) could do cooling and heating circulatingly. Through the medium of jacket,you could put welding and cooling materials with constant temperature (high or low temperature) into the jacket,and heat or cool the materials in the vessel constantly.
Pressure Vessel
Pressure Vessel data from our Brochure

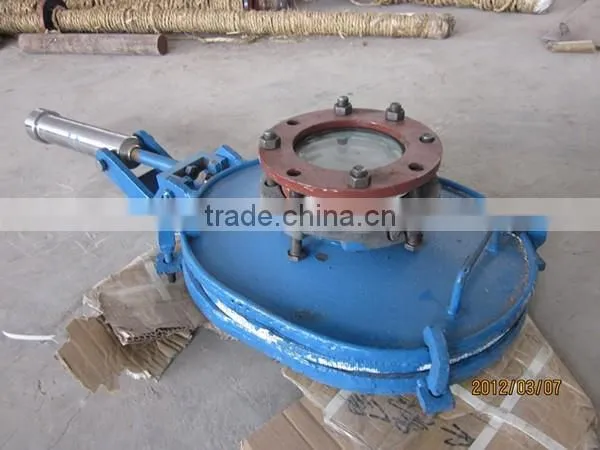

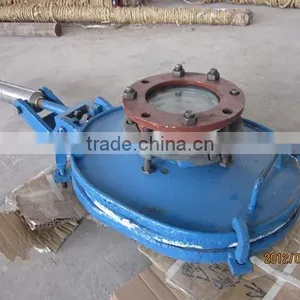

Pressure Vessel Auxiliaries:
TOP ten in national same trade ,the biggest ,most advanced and best quality glass-lined and pressure vessel producer in Henan province.

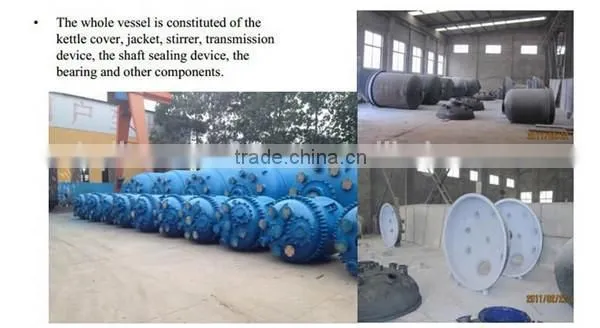

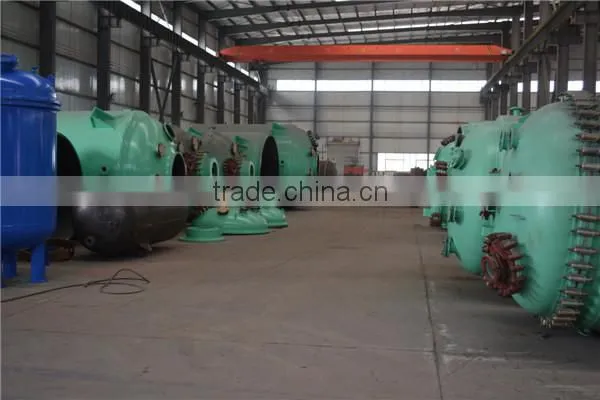

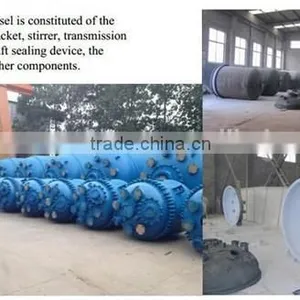

This is our glass-lined reactor factory:
This is certifiate of producing reactors:
With trade assurance ,your money and business are both safe.
