Top Ten in China Manufacturer chemical mixing Glass reactors
1.Design Pressure Vessel=0.2MPa,0.4MPa,0.6MPa,1.0MPa
Jacket=0.6MPa
2.Agitator Different Types (Optional)
3.Reducer Vertical Type
4.Seal Stuffing Seal(0.2MPa)
Single Mechanical Seal(0.4MPa),
Double Mechanical Seal(0.6MPa,1.0MPa)
5.Glass lined reactors with design pressure greater then 0.6MPa inside the vessel should be
ordered separately.
6.Major dimensions of reactors conform to the National Standard for Glasslined Equipment,and
modifications have been made for improvement by our company.
features:
Top Ten in China Manufacturer chemical mixing Glass reactors :
- 1.Acid and alkali resistant;
- 2.Anticorrosion;
- 3.Jacketed.
(1)allowable pressure (unit:Mpa)
Sealing form |
Stuffing seal |
Mechanical seal |
|
Pressure parts |
In-tank |
≤0.1 |
(0.1----1.0) |
Jacket |
≤0.6 |
||
(2)allowable temperature
0----200 centigrade for stirrer;
0----150 centigrade for tank.
(3)thickness of glass layer:(mm)
0.8----2.0mm for the kettle;
0.6----2.3mm for accessories.
(4)Standard thickness of steel plate:(mm)
Capacity |
Kettle |
Jacket |
50----500L |
8 |
6 |
1000L |
10 |
6 |
1500L----2000L |
12 |
8 |
3000L |
14 |
10 |
5000----6300L |
16 |
10 |
8000L |
18 |
12 |
10000L and above |
20 |
12 |
(5)accessories:
for reactor: agitator,electromotor,reducer,mechanical seal;
for distiller: tower section.
Operating Principle of Reactor
The operating principle of reactor is:When you put reaction solvent inside of vessel,it could be stirred,so that cold and heat sources(refrigerating fulid, hot water or oil) could do cooling and heating circulatingly. Through the medium of jacket,you could put welding and cooling materials with constant temperature (high or low temperature) into the jacket,and heat or cool the materials in the vessel constantly.

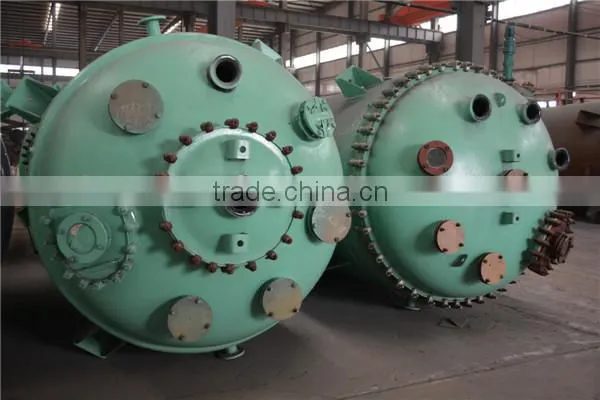

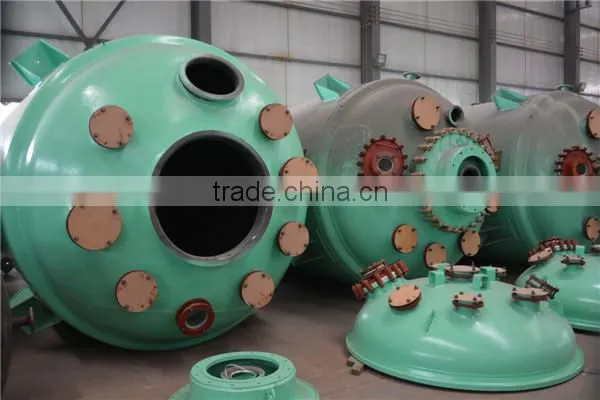

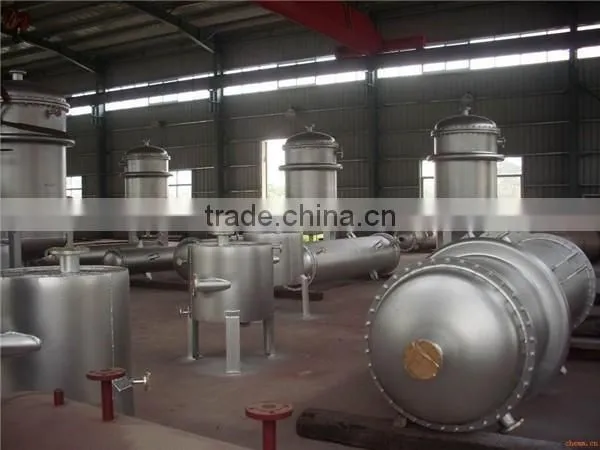

Different types of vessels in our factory:

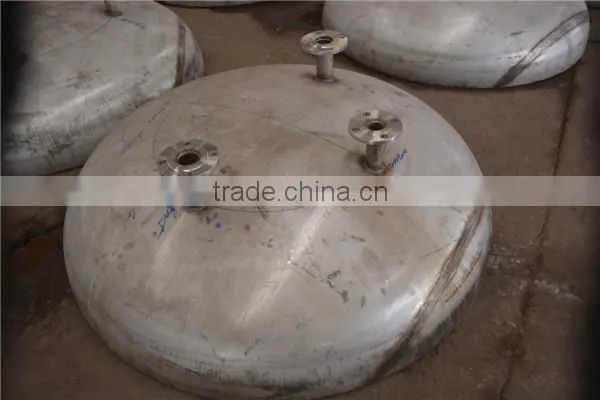

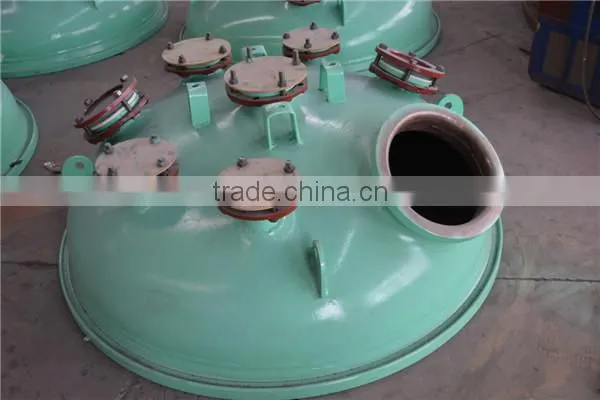

pressure vessel 's Top Ten in China Manufacturer chemical mixing Glass reactors head.
Top Ten in China Manufacturer chemical mixing Glass reactors
TOP ten in national same trade ,the biggest ,most advanced and best quality glass-lined and pressure vessel producer in Henan province.

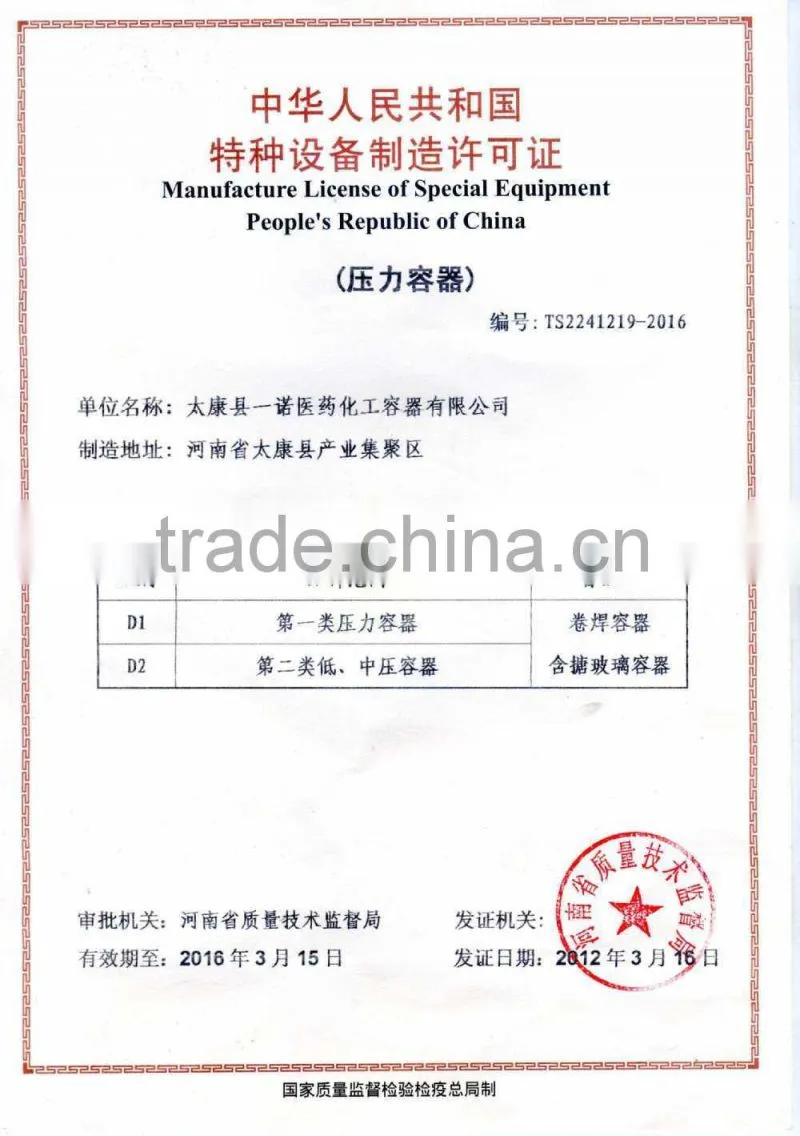

certificate of reactor manufacturer:
my contact:
1.Q: Can you give us a quotation right now?
A: Of course ,we can. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
requirements.
2. Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design.
3. Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
4. Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless manmade damage.
5. Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will
send our engineer oversea for installation guide.
Top Ten in China Manufacturer chemical mixing Glass reactors
