Home > Products > Slitting Machine. > high speed plastic slitting machine
high speed plastic slitting machine
- 100 Set / Sets per Month
- Ningbo
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, high speed plastic slitting machine | Application: | pp pe opp bopp pvc paper , etc. |
Place of Origin: | Zhejiang, China | Brand Name: | RUIHAO | Model Number: | LFQ-700A/1100A/1300A |
Rated Power: | 3.5kw | Dimensions: | 2600*1110*1400mm | Voltage: | 220v |
Power(W): | 3.5kw | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

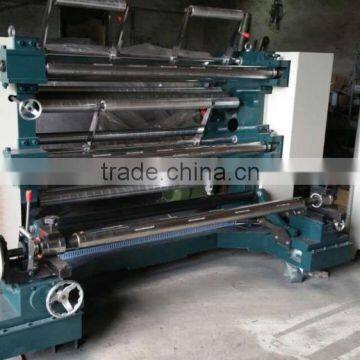

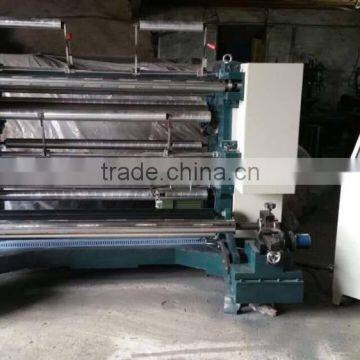

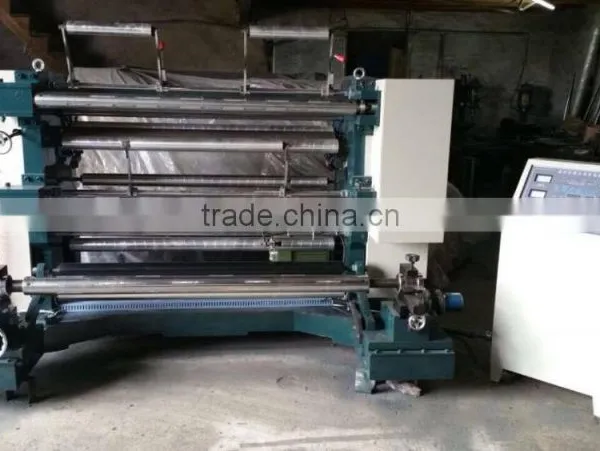

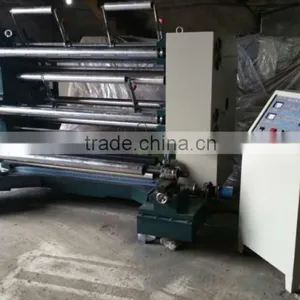

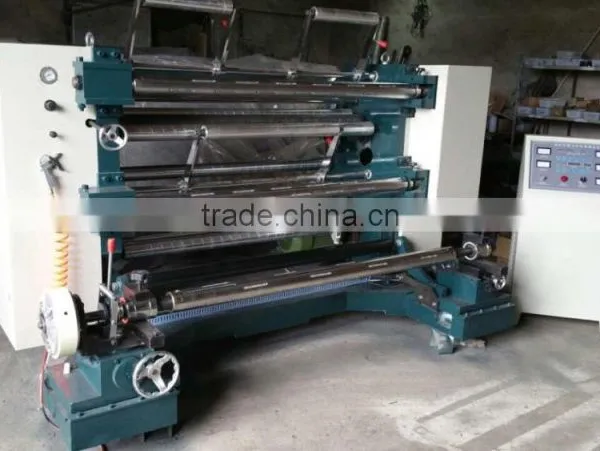

high speed plastic slitting machine
Use:
This machine is suitable for BOPP, PET, CPP, CPE, PVC, PE, the aluminum foil, the paper and so on each kind of volume shape material minute strip, carries on the cutting edge in the production process according to the different need to the material, divides cuts and so on.
Main technical parameter:
Model LFQ-700A LFQ-1100A LFQ-1300A
Max.width of separating and cutting roll material 700mm 1100mm 1300mm
Max.diameter of separating and cutting roll material 600mm 600mm 600mm
width of roll material cutting 30to600mm 30to1000mm 30to1200mm
separating and cutting speed 5to160m/min 5to160m/min 5to160m/min
Deviation rectifying error 0.5mm 0.5mm 0.5mm
Total power 2.7Kw 3.5Kw 3.5Kw
machine weight 1200kg 1500 kg 1800 kg
outline diameter 2000*1110*1400mm 2300*1110*1400mm 2600*1110*1400mm
Performance and characteristic:
1st, the this aircraft is the vertical minute strip machine.
2ed,Independent always controls the screen, the operation is more nimble conveniently.
3th,Puts the volume to correct an error automatically, the light electric eye is suitable for the track transparent material edge and the color .
4th,Puts the volume tensity to use the magnetic powder brake control.
5th, receives the volume to use the magnetic powder clutch control .
6th,Side, is equipped with the material wind to deliver or the volume takes the installment (time ordering chooses).
7th,Walks material length automatic idea Mi.
8th,Receives the press roll to cause the volume material to be smoother.
9th,A pair of gas zhang receives the reel.
Contact Us
- Ruian Hongguang Machinery Co., Ltd.
- Contact nameXIAOHONG PAN
- Phone86-577-65162333
- AddressNo. 68, Libei Road, Xuehou Industrial Zone, Shangwang St., Ruian
