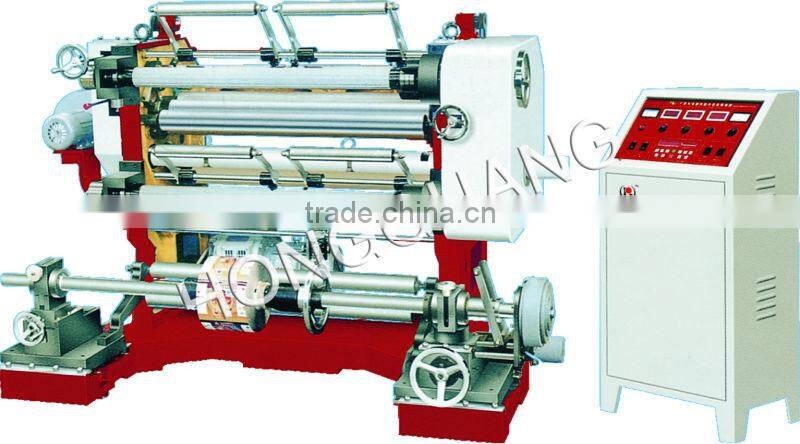

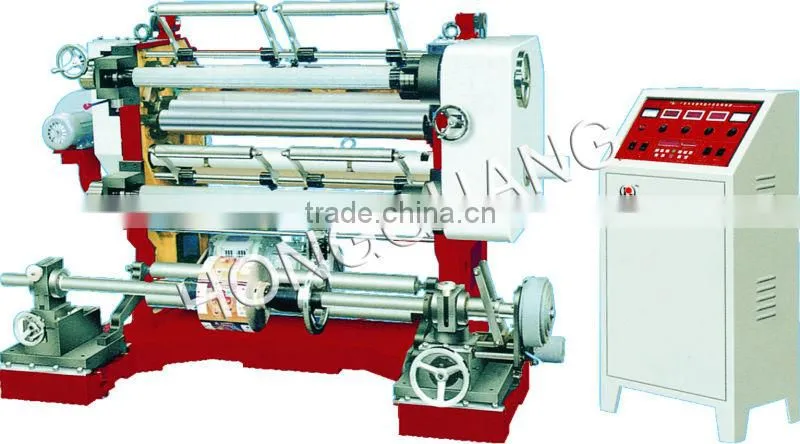

LFQ-A Series Vertical Automatic Slitting Machinery

Name: LFQ-A Series Vertical Automatic Slitting Machinery
Brand: RUIHAO
SKU: 105494591
Availability: InStock

US$ 7,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Automatic Slitting Machinery

Application:

plastic film , paper , aluminium foil, etc.

Ruian Hongguang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Automatic Slitting Machinery

Application plastic film , paper , aluminium foil, etc.

Place of Origin Zhejiang, China

Brand Name RUIHAO

Model Number LFQ-700A/1000A/1300A

Voltage 220V.380V

Power(W) 3kw

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.LFQ-A Series Vertical Automatic Slitting Machinery
2.suitable for plastic film , paper , aluminium foil, etc.
3.CE

LFQ-A Series Vertical Automatic Slitting Machinery

Performance and characteristic:

1. This machine is a kind of vertical separating and cutting machine rolling and releasing can be in front of or at the back of the machine.

2. Independent master control screen , more flexible and even easier operation.

3. Automatic deviation-releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.

4. Releasing tension adopts magnetic powder clutch control

5. Rolling adopts magnetic clutch control.

6. Automatic slitter edge blowing-inhaling device

7. Automatic meter counting of material moving length.

Main technical parameter:

Model	LFQ-700A	LFQ-1000A	LFQ-1300A
Max.width of separating and cutting roll material	700mm	1000mm	1300mm
Max.diameter of separating and cutting roll material	600mm	600mm	600mm
Width of roll material cutting	30to600mm	30to1000mm	30to1300mm
Separating and cutting speed	5to160m/min	5to160m/min	5to160m/min
Deviation rectifying error	±0.5mm	±0.5mm	±0.5mm
Total power	2.2Kw	3Kw	3Kw
Machine weigh	1200kg	1500kg	1800kg
Overall dimension	111020001400mm	111023001400mm	110026001400mm
Weight	1200kg	1500kg	1800kg
