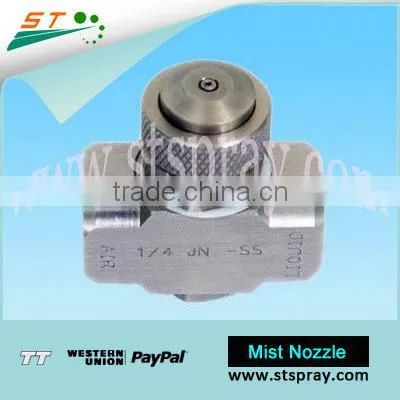

Round Spray Siphon Type Air Atomized Nozzles

Specifications

Siphon Type Air Atomized Nozzles could adjust the flow rate
External type
Flat fan spray or Full cone spray
Fine mist

We are a China spray Nozzles supplier, who has strong desire to provide Siphon Type Air Atomized Nozzles to satisfy customers.





How to install the Siphon Type Air Atomized Nozzles ?





Basic Information:
Siphon Type
Thread size: 1/8; 1/4; 1/2
Material: SS; brass
Spray Pattern: Flat fan spray





Design Feature:

1. Siphon or Gravity Type Air Atomized Nozzles
Air pressure is a must, but the liquid pressure is not demanded.

2. When using a siphon or gravity-fed liquid system, the liquid is supplied by either a liquid siphon or a gravity-feed.

3. For Siphon or Gravity type Air Atomized Nozzles , there are two spray pattern: Flat Fan spray pattern and Round Spray pattern.







Flat Spray:





Round Spray





4.Inner structural design makes liquid and air mix fine, then sprays fine. Normally, we could increase the air pressure or reduce the liquid pressure, so that we could make the  Siphon Type Air Atomized Nozzles spray more fine droplets( about 30micron).



5.Keeping liquid pressure and air pressure unchanged, as Siphon Type Air Atomized Nozzles could adjust liquid flow rate, then it also could spray according to your requirement.



6. Every spraying device consists of air cap and liquid cap.So if you want to use the suitable Siphon Type Air Atomized Nozzles , then you have to choose the right air cap and liquid cap.



7.There are two inlet in the nozzle body.: liquid inlet and air inlet. We will mark " LIQUID" and "AIR" OR "L" and " A" on the nozzle. "LIQUID" AND "L" stands for liquid inlet, "AIR" and "A" stands for air inlet.



8.  Siphon Type Air Atomized Nozzles could spray very fine. it also could humidify environmental air very well. It is a ideal choose to use it in places need some certain humidify.



9.  Siphon Type Air Atomized Nozzles could spray a distance of 3 meter. Compared with high pressure fog nozzles, this kind of nozzle is easy to install, have a long live life, cheaper pipe lines, and so on. It is widely used in High-temperature Wax factory, cementplant, injection factory, Ceramics Factory, metallurgical factory and other places t o humidify, cool, dust removal, disinfection and so on.





These  Siphon Type Air Atomized Nozzles to be used for:
Coating • Cooling • Humidification • Odor Control • Chemical Processing





Following is the detailed spraying pics of  Siphon Type Air Atomized Nozzles we have tested for your reference:
