flexible rubber/pvc insulated welding cable h01n2-d welding cable 100mm2
Detailed Product Description
Executive Standard:
1.GB/T5013.6-2008
2.IEC60245-6:1994
Construction:
Conductor : Flexible Bare annealed copper wire or Tinned Copper wire
Insulation:PVC or Rubber
Sheath: PVC or Rubber
Choice of Black, Orange, Red or Yellow Blue jacket, single & double insulated.
SQ MM sizes (European style) 10 sq mm to 240 sq mm
AWG sizes (North American style) 6 Awg to 500 MCM
With sequential foot / meter marking
Wide temperature range: -55°C to 105°C
Application
Leading wire for welding machine and also applied to power or electrical household appliances and a variety of mobile or electrical devices and tools with AC rated voltages of Uo / U 450/750V and below.
This welding cable is used to power the secondary circuit of electric welding generators,the circuit that controls the electrode that emits the charge used to weld.While welding cable is not meant to be part of any other system,It has a history of being used for public lighting arrangements.
Welding Cable H01N2-E IEC60245
Copper rubber welding cable, PVC welding cable
TYPE |
standard |
245 IEC 81(YH) |
GB5013.6-1997 |
TYPE |
Description |
||
245 IEC 81(YH) |
Welding Cable, sheathed with natural rubber |
||
245 IEC 81(YH) |
Order |
Item |
Property |
1 |
Conductor DC Resistance (Ω/km) |
Reference the table followed |
|
2 |
Power frequency AC voltange test |
Immersed in water at room temperatrues for 1hour finished cable withstands 1000V AC.50Hz.For 5 minute without breakdown |
|
Specifications, Technical Data
| Conductor Nominal Section (mm2) | Conductive Core | Thickness of Section Sheath (mm) | Average Outer Diameter (mm2) | 200C Conductor Resistance≤(Ω/km) | |
| Number/Diameter of Core(mm) | Min | Max | |||
| 10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 |
| 16 | 513/0.20 | 2 | 9.2 | 11.5 | 1.16 |
| 25 | 798/0.20 | 2 | 10.5 | 13 | 0.758 |
| 35 | 1121/0.20 | 2 | 11.5 | 14.5 | 0.536 |
| 50 | 1596/0.20 | 2.2 | 13.5 | 17 | 0.379 |
| 70 | 2214/0.20 | 2.4 | 15 | 19.5 | 0.268 |
| 95 | 2997/0.20 | 2.6 | 17 | 22 | 0.198 |
| 120 | 1702/0.30 | 2.8 | 19 | 24 | 0.161 |
| 150 | 2135/0.30 | 3 | 21 | 27 | 0.129 |
| 185 | 1443/0.40 | 3.2 | 22 | 29 | 0.106 |

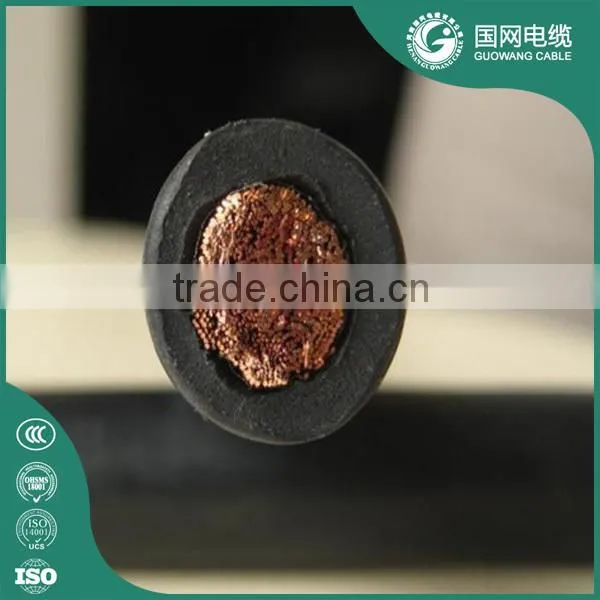

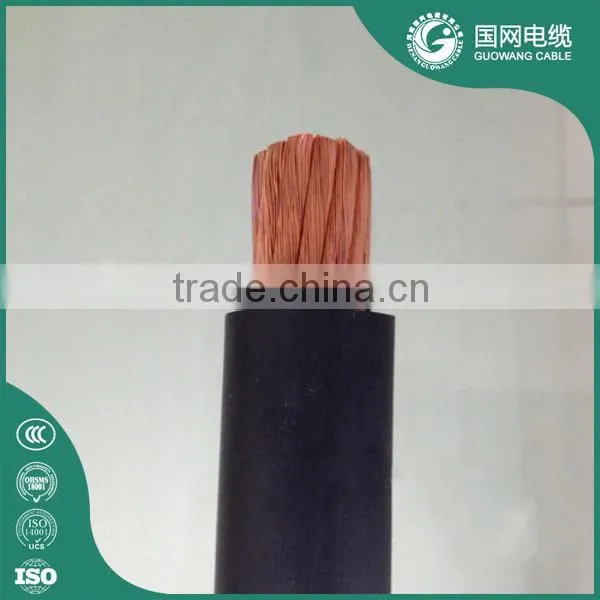

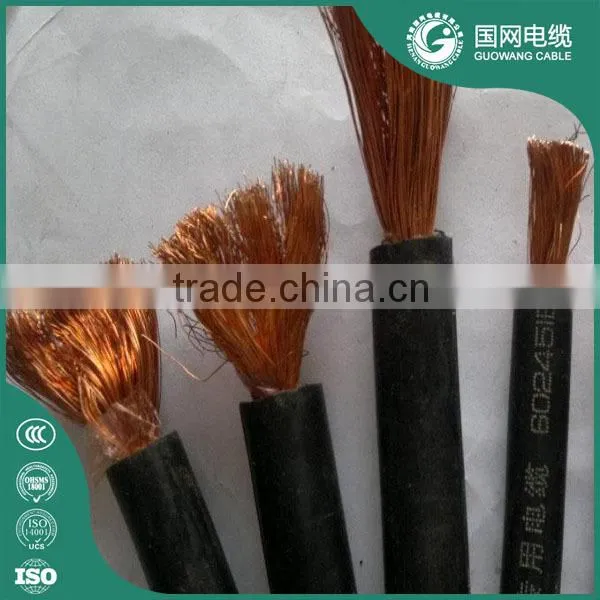

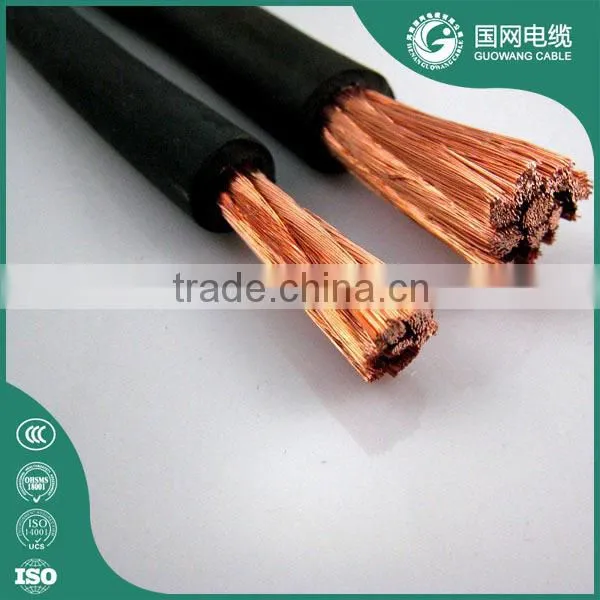

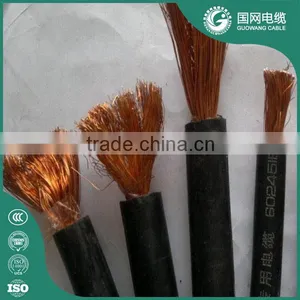

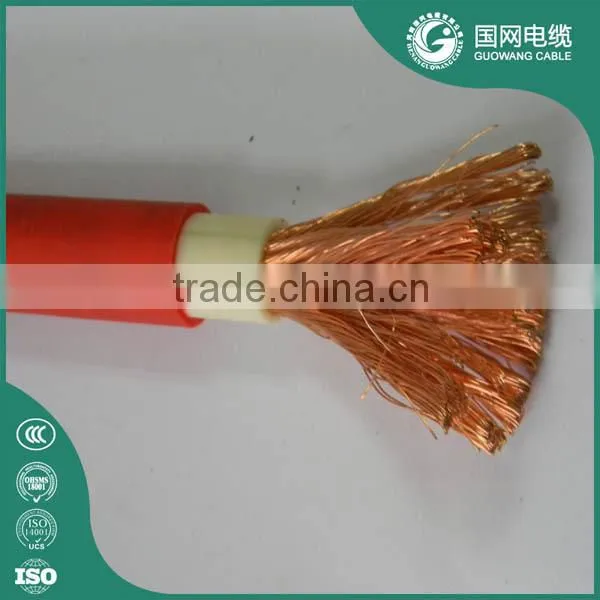

Detailed Welding Cable Display
Roll,Wooden drum or as your require
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
3. OEM is available.
4. Sample is available.
Our Factory
Henan Guowang Cable Group Co., Ltd. Was founded in 1992, with good transport facilities which adjacent to the Xinzheng Internation Airport. Our company had occupies total area of more than 200,000 square meters, with building area 150,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Production Line
As one of top rank cables manufacturers in China, our factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And aslo mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor).
Our test machine
Our certification
1.Q:Are you a factory or trading company?
A:We are a 20 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority.
We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained OHSAS, CCC,ISO certification.
