Specifications
1.Computer heat-sealing &heat-cutting bag making machine2.servo motor
3.bag width 100-800mm
4.t-shirt bag making machine

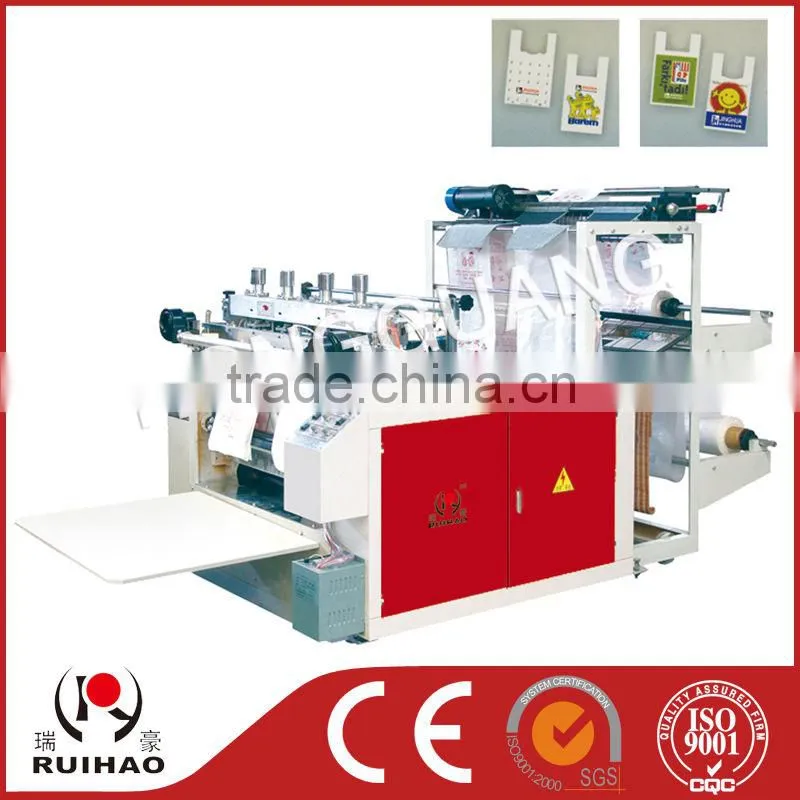

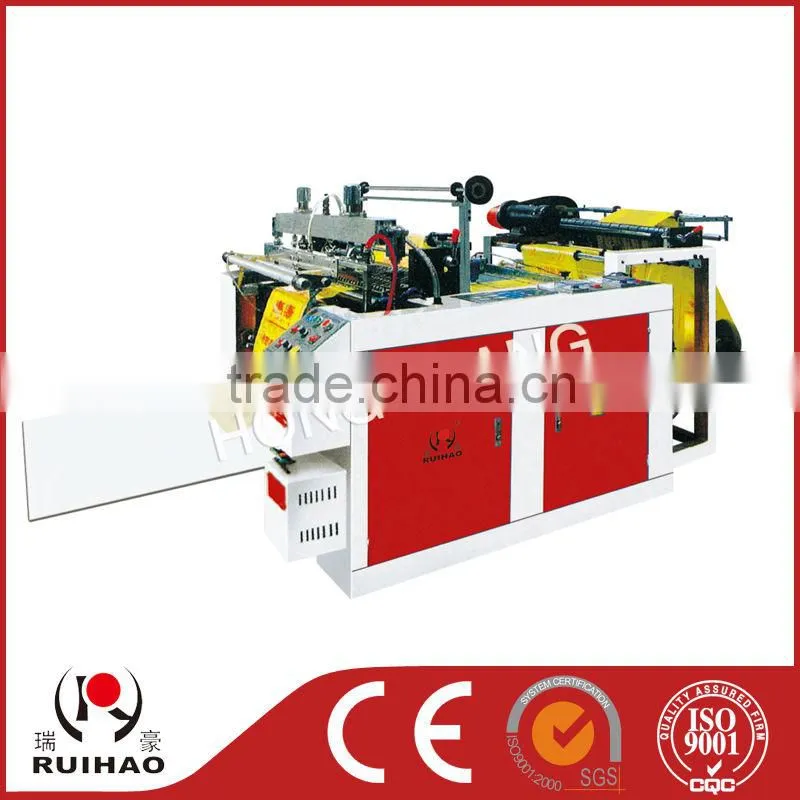

Computer heat-sealing &heat-cutting bag making machine
Computer heat-sealing &heat-cutting bag making machine is suitable for making barrel-type plastic vest bags of natural color and color-printed bound plastic vest bags. It adopts advanced photoelectric eyes tracking which makes the printing pattern position be accurate without error, the sealing synchronize with the heat-cutting without any pulling force and the sealed bottom be film and beautiful. Equipped with variable frequency speed regulating motor, it has many automatic protection function such as energy-saving, overload, over voltage and over current, etc. And equipped with automatic counting device, it can arbitrarily set the binding quantity and can automatically discharge and reset after the bags are piled to the set quantity.
Model |
DFR-500 |
DFR-700 |
Max. width of bag-making(mm) |
500 |
700 |
Max. length of bag-making(mm) |
1000 |
1000 |
bag-making speed (pc/min) |
40-120 |
40-120 |
Main engine power (k w) |
0.75 |
1.1 |
Engine weight (kg) |
800 |
900 |
Overall dimension(L*W*H) mm |
2600*1150*1500 |
2600*1350*1350 |
