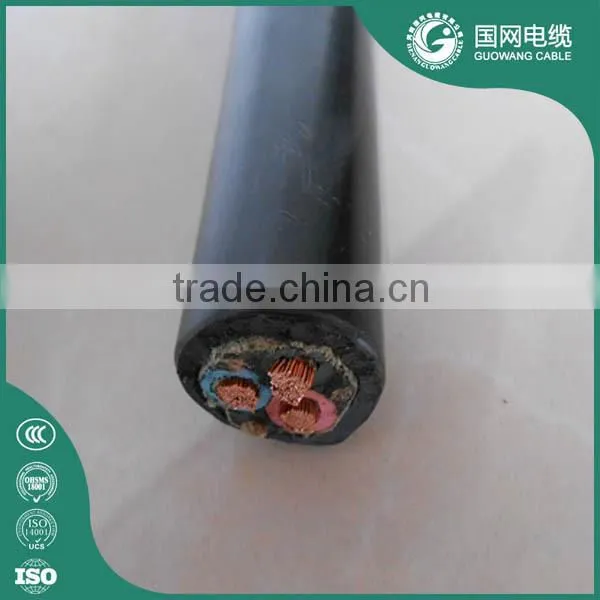

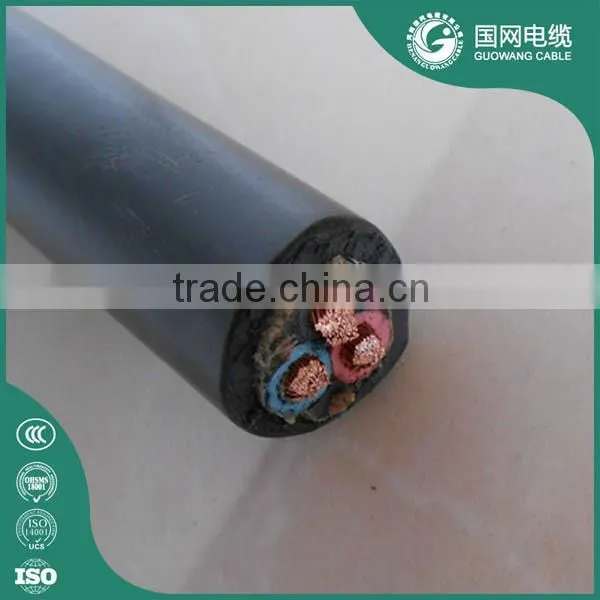

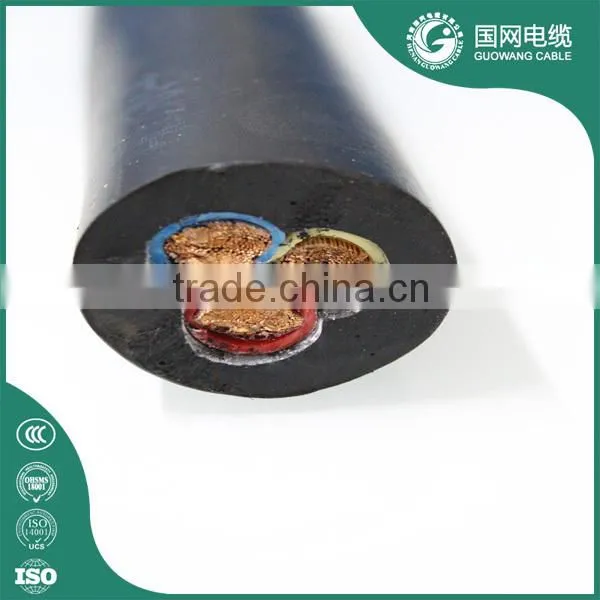

450/750V Copper Conductor 4 Core 35mm2 Copper Cable
Flexible Rubber Cable Application:
This rubber cable is suitable for A.C voltage 450/750V or below domestic appliances,power-operated tlls and various portable electric equipments.
Flexible Rubber Cable standard:
CCC applied to IEC60245—4 standard BS EN 60228:2005(previously BS6360)
Voltage Rating of flexible rubber cable : 450/750V 300/500V
Temperature Rating of flexible rubber cable
Fixed: -40°C to +105°C
motion: -30C to +90°C
Minimum Bending Radius: 6 x overall diameter
Flexible Rubber Cable Structure:
conductor material : Stranded flexible fine twisted pure copper wire
insulation material: EPR or Natural rubber
sheath material : EPR ,nature rubber , CPE
Flexible Rubber Core clour identification:
3 core: Blue, brown & green/yellow
4 core: Black, grey, brown & green/yellow
6 core: Black, blue, brown, grey, white & green/yellow
8 core: Black, blue, brown, green, red, white, grey & green/yellow
Flexible Rubber Cable Type:
HAR Code |
IEC |
Description |
Voltage Design |
Cores |
H05RR-F |
60245 IEC 53(YZ)/YZ |
Oridinary rubber sheathed cord |
300/500V |
2~6 |
H05RN-F |
60245 IEC 57(YZW)/YZW |
Oridinary polychloroprene or other equivalent synthetic elastomer sheathed cord |
300/500V |
2~6 |
H07RN-F |
60245 IEC 66(YCW)/YC |
Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable |
450/750V |
1~5, 3+1/3+2/4+1 |
H01N2-D |
60245 IEC 81(YH) |
Rubber sheathed arc-welding electrode cable |
100/100V |
10-120 |
60245 IEC 82(YHF) |
polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable |
100/100V |
10-120 |
Our Services
1. Sufficient support for our tendering representatives.
2. Qualification documents support
3.OEM service available based on official & legal authorization.
4. Strict quality control system.
5. Faster lead time than our competitors.
6. Excellent quality with reasonable price.
7. Strong technical support (technical data, drawing, etc.)
8. Cable solutions to your particular requirements.
9. Free sample is available with economic express fee.
10. Factory acceptance test assistant.
11. Container loading design and handling.
As one of top rank cables manufacturers in China, Henan Guowang Cable is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And also it is mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as triplex overhead service conductors(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR).
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please
call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight
charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7
days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express
account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is
delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country.
