power transmission line xlpe insulation aerial abc cable with ce ccc certificate
- 5000 Kilometer / Kilometers per Month
- Qingdao abc cable
- T/T Credit Card
- power transmission lineoverhead abc power cable with ce ccc certificate
- power transmission lineabc overhead cable xlpe insulated 16mm2 with ce ccc certificate
- power transmission line pe xlpe insulated service cable abc cable with ce ccc certificate
- power transmission line abc with ce ccc certificate
- power transmission line 0.6/1kv abc cable with ce ccc certificate
- power transmission lineservice drop overhead bunched aerial bundled abc cable with ce ccc certificate
Product Details
Place of Origin: | Henan, China | Brand Name: | Guowang | Model Number: | ABC Cable |
Insulation Material: | Other, PVC/XLPE/PE | Type: | Low Voltage | Application: | Overhead |
Conductor Material: | Aluminum | Jacket: | Other, Bare |
Product Description
power transmission line xlpe insulation aerial abc cable with ce ccc certificate
Phase conductor:
Conductor: compacted, stranded, hard drawn aluminium wires
Insulation: dry cured cross linked polyethylene (XLPE)
Neutral core:
Conductor: AAC, AAAC or ACSR
Insulation: Weather proofed PE
2. ABC Cable Application
Aerial Bundle Cable are used for electric power tranmission, extensively used for rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.
3. ABC Cable Operating Characteristics
Voltage: 600V phase to phase
Max conductor temperature: 75C (PVC Insulation)
Max conductor temperature: 90C (XLPE Insulation)
4. ABC Cable Cross Section Area: from 10mm2 up to 240mm2
5. ABC Cable Types: Duplex Triplex & Quadruplex
6.ABC Cable Installation:
For service at 600 volts or less (phase to phase) at a maximum conductor temperature of 75C for Polyethylene insulation or 90C for Cross-Linked (XLPE) insulation
7.ABC Cable Specifications:
ABC Cables meets or exceeds all applicable requirements of ANSI/ICEA S-76-474. B-230 Aluminum Wire, 1350-H19 for electrical purposes B-231 Aluminum Conductors, concentric-lay-stranded B-232 Aluminum Conductors, concentric-lay-stranded, coated steel reinforced(ACSR) B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors. B-498 Zinc-coated Steel Core Wire for Aluminum Conductors, steel reinforced(ACSR/AZ)
SPEC mm2 | conductor structure | Approx. | ||||||
Phase | Neutral(Bare ACSR) | insulation | insulation | Overall | Approx. | packing | ||
(Compacted AL) | Aluminium | Steel | material | Thickness | Diameter | Weight | Meters Per | |
(No./mm) | (No./mm) | (No./mm) | (mm) | (mm) | (kg/km) | Drum | ||
1x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
1x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 14.9 | 182.2 | 250-4000m | |
1x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 17.5 | 254.7 | 250-3500m | |
1x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 20.1 | 333.9 | 250-3000m | |
1x70+1x70 | 19/2.15 | 12/2.15 | 17/2.15 | 1.4 | 23.6 | 382.2 | 250-3000m | |
1x95+1x95 | 19/2.54 | 12/5.24 | 17/5.24 | 1.6 | 27.6 | 528.2 | 250-3000m | |
2x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | (HDPE) | 1.2 | 14.2 | 187.6 | 250-4000m |
2x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 16.7 | 273.8 | 250-3500m | |
2x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 19.7 | 386.9 | 250-3500m | |
2x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 22.5 | 506 | 250-3000m | |
2x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 26.1 | 617.2 | 250-3000m | |
2x95+1x95 | 19/2.54 | 12/5.24 | 7/5.24 | 1.6 | 30.5 | 850.9 | 250-3000m | |
3x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | 1.2 | 16.3 | 253.3 | 250-3500m | |
3x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 19.1 | 371.9 | 250-3500m | |
3x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 22.5 | 519.1 | 250-3000m | |
3x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 25.7 | 678.1 | 250-3000m | |
3x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 29.7 | 1024.3 | 250-3000m | |
3x95+1x95 | 19/2.54 | 12/2.54 | 7/2.54 | 1.6 | 34.6 | 1413.7 | 250-3000m |

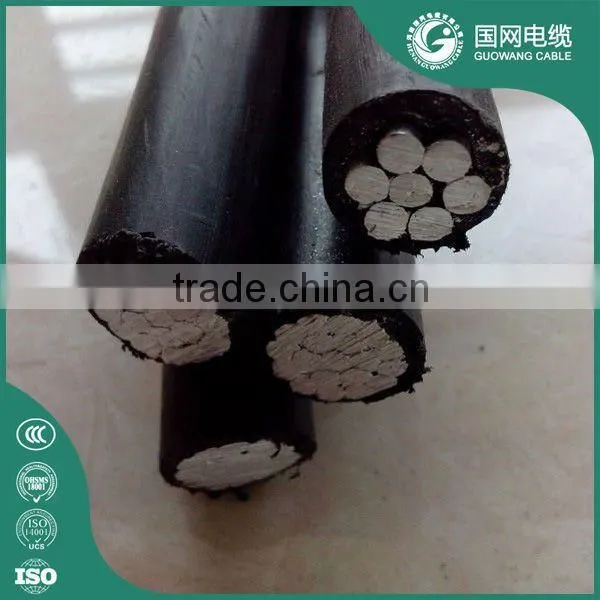

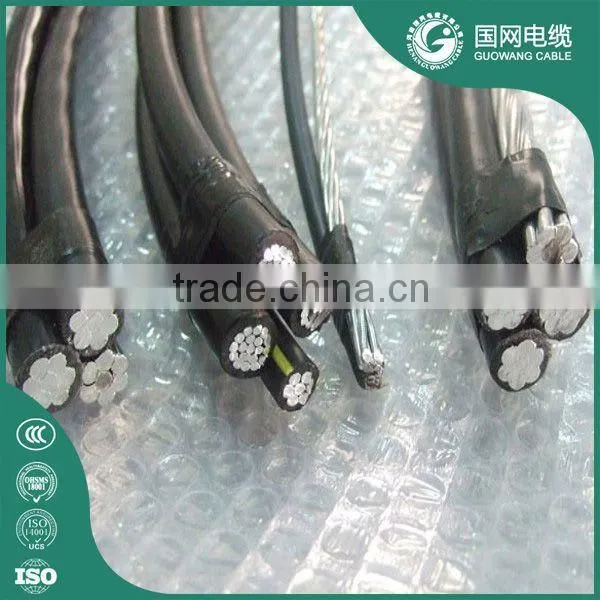

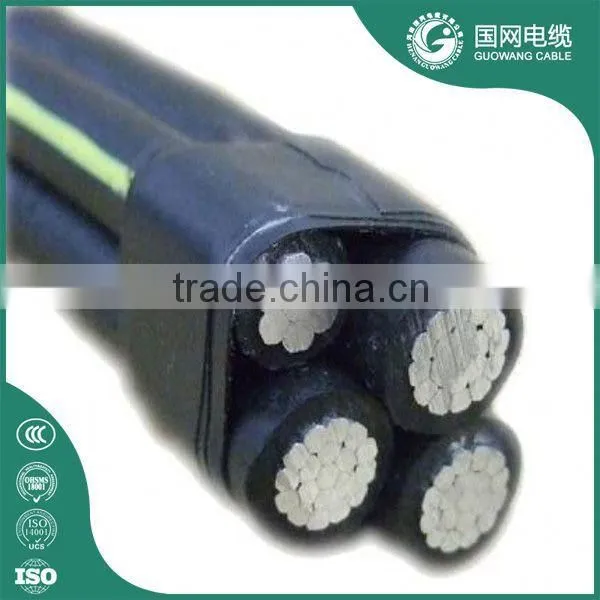

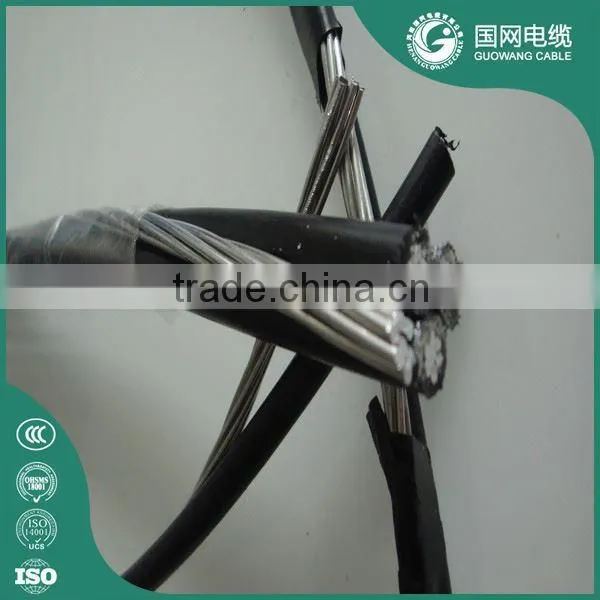

8.Detailed ABC Cable display:
9.Related Overhead Cable
Wooden drum,steel-wooden drum,steel drum or as your require
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
3. OEM is available.
4. Sample is available.
Our Factory
Henan Guowang Cable Group Co., Ltd. Was founded in 1992, with good transport facilities which adjacent to the Xinzheng Internation Airport. Our company had occupies total area of more than 200,000 square meters, with building area 150,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.
Production Line
As one of top rank cables manufacturers in China, our factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable with Voltage up to 35kV, Rubber Cable and Welding Cables. And aslo mainly specialized in Aerial Bundled Cable(ABC Cable), Bare Overhead Power Transmission Line such as All Aluminum Conductor(AAC Conductor), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor).
Our test machine
Our certification
1.Q:Are you a factory or trading company?
A:We are a 20 years factory with more than 60 engineers.and have gained the supplier assessment.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhengzhou City, Henan Province, China,.You can fly to Xinzheng airport directly.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples according your inquiry.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority.
We always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained OHSAS, CCC,ISO certification.
