P10 led curtain backdrop

Specifications

1.Silan,Epistar chip
2.IC 9268
3.stable quality with 5 years warranty
petitive price
5.quick installation



Coolview led curtain backdrop Description:

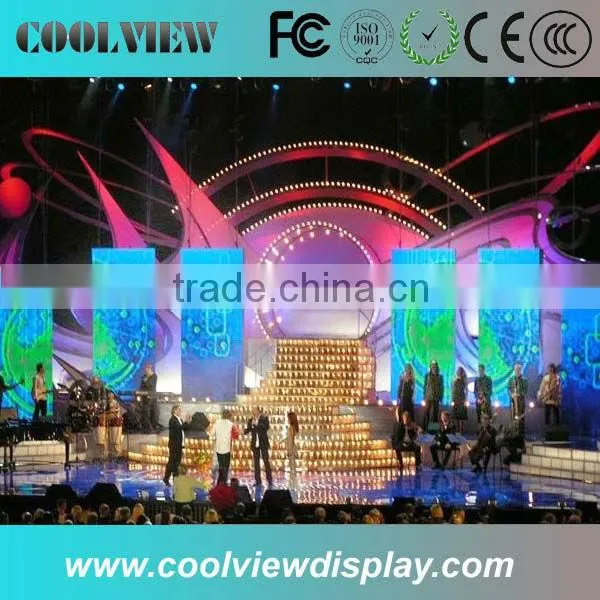

Flexible LED curtain for indoor stage outdoor advertisement, music club use, soft and flexible LED video display make all the

indoor events become more colorfull & lively.
The advantage of the LED curtain is low weight,transparent & low cost. The most common use LED curtain display is

P10mm,P15.625mm , P20mm P31.25mm. The Large size,full colorfull effect for the stage background make it be an ideal

solution for stage, exhibition booths, interior & exterior events.



Coolview products range:



LED cabinet display:



         SMD: P3,P4,P5,P6,P7.62,P10

          DIP:   P10,P16,P20



LED flexible display:



          P10,P15.625,P20,P31.25



led curtain backdrop Features:



1.Wide application field&short ROI time:comercial advertising LED display, Stadium perimeter LED display,Mobile trailer LED

panel for mobile media,shopping mall LED panel for logo showing,bank&stock exchange LED panel for rates

showing,train&bus station,air port,telecommunication LED panel system for information showing and instruction



2.High Contrast:4000:1,which is a very high level to ensure a vivid image of our LED screen system.



3. First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long liftetime and high

brightness of our LED screen sytem.



4.Clear image quality even in direct,full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's

investment.



5.Long-term Brightness:5000-nit brightness capacity throughout product lifetime of the LED display



6.Easy Installation & Using:easy & simple installation interface and user friendly software to ensure the user friendly interface

of the LED screen sytem



7.Convenient Servicing:Front and rear cabinet access and rear led flexible make the maintance work very convenient and low

cost to help you concentrate more time and energy on your main maketing promotion business.

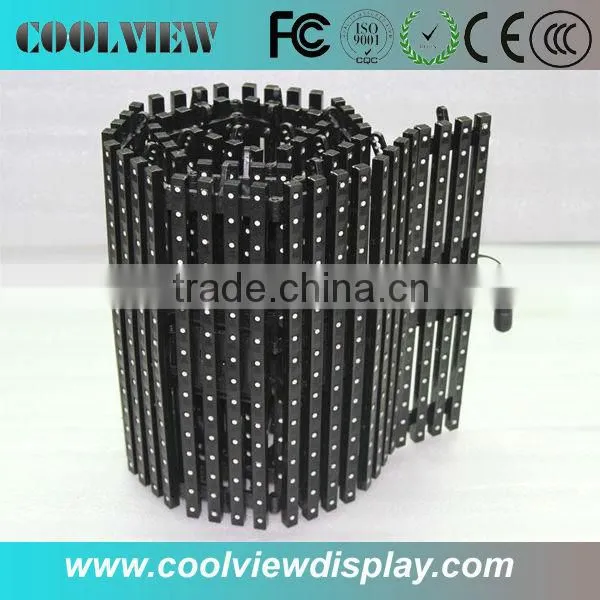

led curtain backdrop module:







led curtain backdrop Technical parameters:



Project classification		Conventional display
model		P10
Pixel unit module	Pixel pitch(mm)	10
	Pixel density (dots/sqm)	10000
	LED type	SMD3528
	Module size(mm)	W320×h1280
	Pixel composing	1R1G1B
Pixel unit screen	screen size(mm)	based on customer need
	module Resolution (nits)	W32×h128
	Cabinet structure	Water-proof
	installation	fixed on the back
	screen material	iron	aluminum
	The way the cascade	Aviation head
	Protect degree	IP66
Display parameters	Viewing distance(m)	7~105
	brightness(cd/sqm)	5000~6500
	Power consumption (w/sqm)	310 max
	Driving IC	9268IC
	Refresh rate(HZ)	≥4000
	Display ratio (suggest)	4:3/16:9
	Viewing angel(c)	H130 V130
	System working voltage	88-132VAC176-264VAC 47-63HZ
Other parameter	Image adjustment	contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
	Image processing	Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
	Brightness uniformity	The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
	Gray	65536
	Color temperature/contrast	Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
	Transmitting Distance	The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
	Input Signal	RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
	Control System	PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
	Average No Failure Time	5000 hours
	Life span	100,000 hours
	Out-of Control rate	0.0001
	To floor drain current	Less than 3.5MA
	Control system	Synchronized
	Operating Environment Temperature	-20°C—65°C Optional



Coolview led curtain backdrop after-sale service:



1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance

manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.

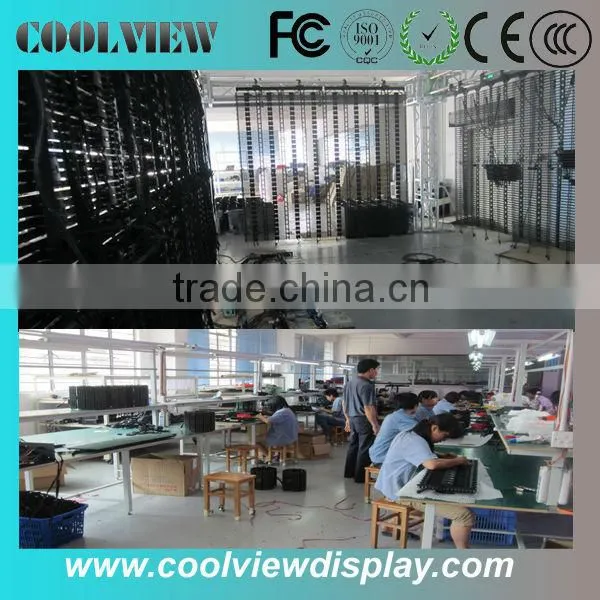

led curtain backdrop packing and factory:

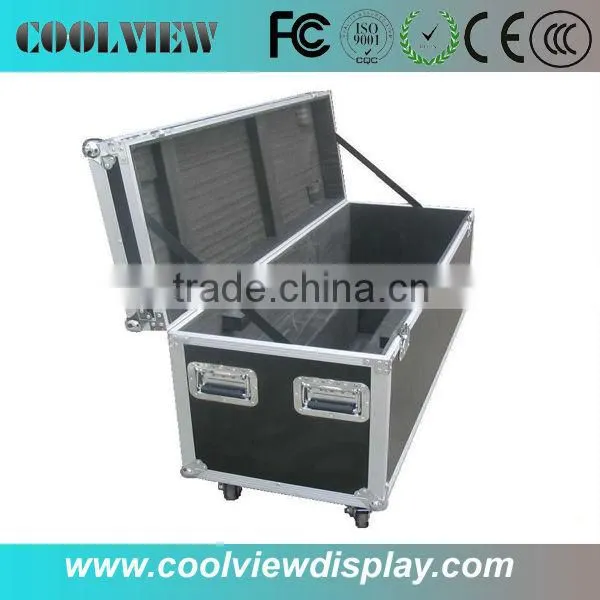

led curtain backdrop packing:





Coolview certificates for led curtain backdrop :
