P10 10000 dots full color outdoor p10 outdoor led display

Specifications

1.Silan,Epistar chip
2.encapsulation by Unilumin
3.stable quality with 5 years warranty
petitive price



Coolview p10 outdoor led display Description:



led display for indoor stage outdoor advertisement, music club use, The advantage of the LED display is low power consumption,transparent & low cost. The most common use LED curtain display is

P10mm,P16mm , P20mm . The Large size,full colorfull effect for the outdoor advertising.



Coolview products range:



LED cabinet display:



         SMD: P3,P4,P5,P6,P7.62,P8,P10

          DIP:   P10,P16,P20



LED flexible display:



          P10,P15.625,P20,P31.25



p10 outdoor led display Features:

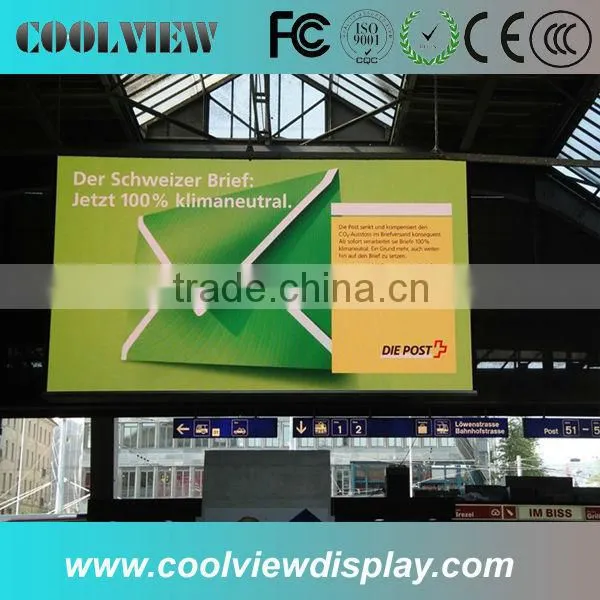

1.Wide application field&short ROI time:comercial advertising LED display, Stadium perimeter LED display,Mobile trailer LED

panel for mobile media,shopping mall LED panel for logo showing,bank&stock exchange LED panel for rates

showing,train&bus station,air port,telecommunication LED panel system for information showing and instruction



2. Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also three display mode as VGA+VIDE and VGA. ,interfaces for Sound signal and vedio signal.



3.High Contrast:4000:1,which is a very high level to ensure a vivid image of our LED screen system.



4. First-class LED chip: Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long liftetime and high

brightness of our LED screen sytem.



5.Clear image quality even in direct,full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's

investment.



6.Long-term Brightness:7000-nit brightness capacity throughout product lifetime of the LED display



6.Easy Installation & Using:easy & simple installation interface and user friendly software to ensure the user friendly interface

of the LED screen sytem



7.Convenient Servicing:Front and rear cabinet access and rear led flexible make the maintance work very convenient and low

cost to help you concentrate more time and energy on your main maketing promotion business.

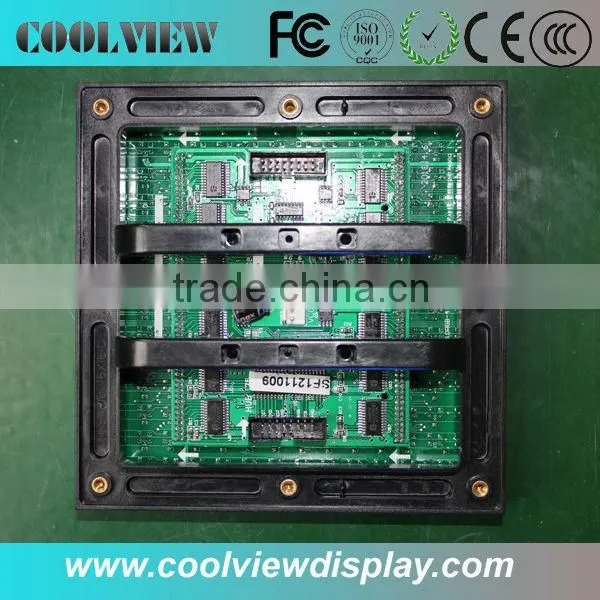

p10 outdoor led display Module:







p10 outdoor led display Technical parameters:



Project classification		Conventional display
model		P10
Pixel unit module	Pixel pitch(mm)	10
	Pixel density (dots/sqm)	10000
	LED type	DIP 346
	Module size(mm)	W160×h160
	Pixel composing	1R1G1B
Pixel unit screen	screen size(mm)	based on customer need
	module Resolution (nits)	W16×h16
	Cabinet structure	Water-proof
	installation	fixed on the back
	screen material	iron	aluminum
	The way the cascade	Aviation head
	Protect degree	IP65 front ,IP54 rear
Display parameters	Viewing distance(m)	7~105
	brightness(cd/sqm)	7000 cd/sqm or 7000 nits
	Power consumption (w/sqm)	34 max
	Driving IC	1/4 scan SL 16739P
	Refresh rate(HZ)	≥2000
	Display ratio (suggest)	4:3/16:9
	Viewing angel(c)	H130 V65
	System working voltage	88-132VAC176-264VAC 47-63HZ
Other parameter	Image adjustment	contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
	Image processing	Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
	Brightness uniformity	The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
	Gray	65536
	Color temperature/contrast	Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
	Transmitting Distance	The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
	Input Signal	RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
	Control System	PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
	Average No Failure Time	5000 hours
	Life span	100,000 hours
	Out-of Control rate	0.0001
	To floor drain current	Less than 3.5MA
	Control system	Synchronized
	Operating Environment Temperature	-20°C—65°C Optional



Coolview p10 outdoor led display after-sale service:



1. Lifetime free maintenance and upgrade.

2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

3. Customer satisfaction tracking report.

4. Free technician training.

5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance

manual and control system software CD and so on.

6. Special service for big project, such as stadium, exhibitions, squares and so on.



p10 outdoor led display factory:

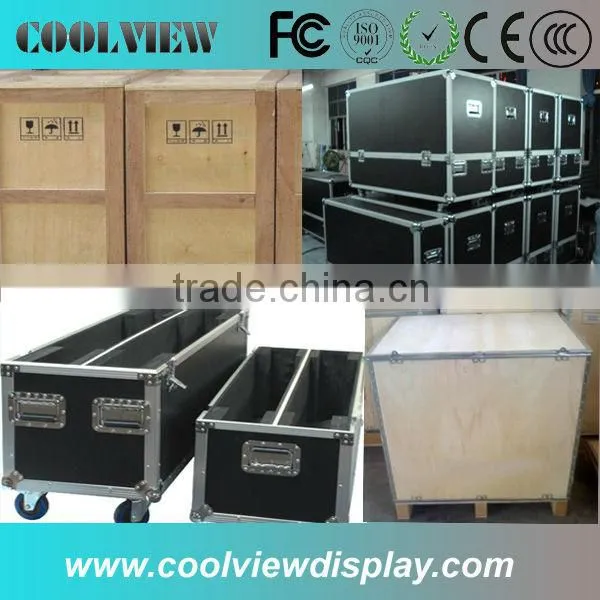

p10 outdoor led display packing and all kinds of cabinets:











Coolview certificates for p10 outdoor led display :
