Football/soccer/baseball Field Commercial Advertising Led Display on the Sides Quality Choice

Football/soccer/baseball Field Commercial Advertising Led Display on the Sides Quality Choice photo-1
US$ 1 - 900 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OSCAR
Model Number:
OSCAR-p10
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name OSCAR
Model Number OSCAR-p10
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 10mm
Screen Dimension depends

Specs:



Numbers

Technical indexes

Specification

1

Pixel pitch

10mm

2

Module size

160mm×160mm

3

Module resolution

16×16

4

Module density

10000dots/sqm

5

Pixel configuration

Full color

6

Red wavelength

625±2nm

7

Green wavelength

525±2nm

8

Blue wavelength

470±2nm

9

Colors

16777216

10

Best viewing distance

more than 5m

11

Horizontal viewing angle

140°

12

Vertical viewing angle

70°

13

Maximum power consumption

≤800W/2

14

Brightness

≥6000cd/m2

15

Gray scale

16bits of per color

16

Color temperature

6500K

17

Control method

Synchronization or Asynchronization

18

Driving method

1/4scanning

19

Frame frequency

480Hz

20

Refresh frequency

≥2000 Hz

21

Working voltage

AC220V/110V±10%

22

IP grade

IP65

23

Working temperature

-20°C~80°C

24

MTBF

More than 10,000 hours

25

 life span

more than 100,000 hours

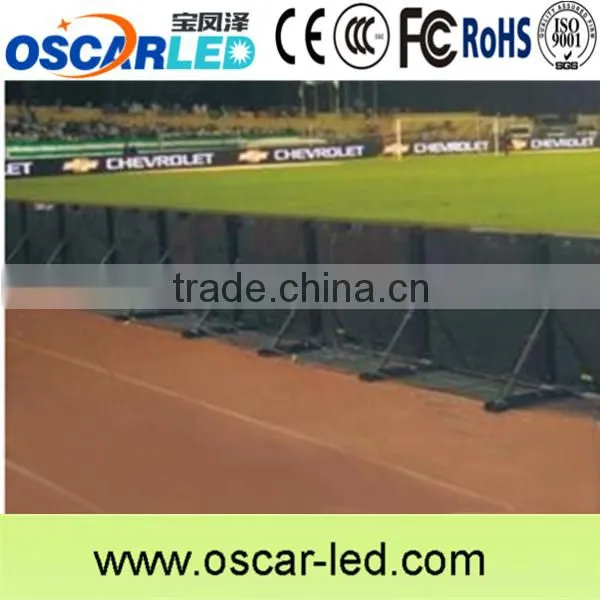

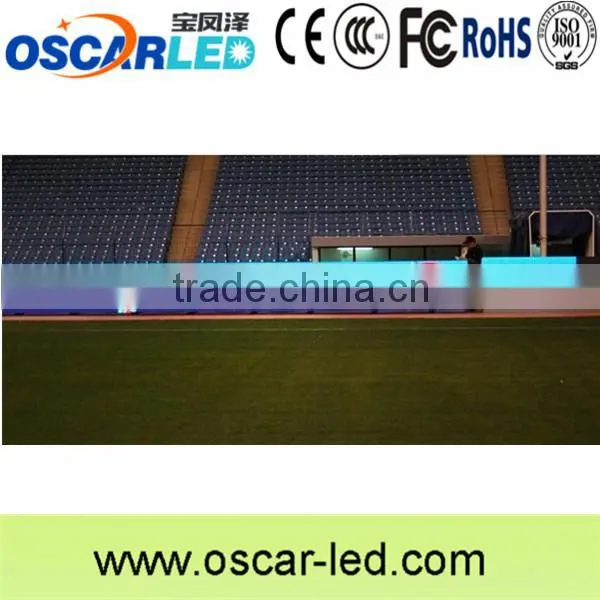

 Photos:Football/soccer/baseball field commercial advertising led display on the sides

Football/soccer/baseball field commercial advertising led display on the sides





 Football/soccer/baseball field commercial advertising led display on the sides

















Company Profile:









Technical support:Football/soccer/baseball field commercial advertising led display on the sides



Certification:



Football/soccer/baseball field commercial advertising led display on the sidesFootball/soccer/baseball field commercial advertising led display on the sidesFootball/soccer/baseball field commercial advertising led display on the sides







Packing:

















Our Services



Our service:



- If you want to import some products to test the market or quality, we can low the MOQ.







- LED display brand name: Accept to print your company logo.







- Voltage: 220V/50Hz (if your local voltage is 110V/60Hz, please let us know).







- Warranty time and terms:



 1) 2 years quality warranty, maintenance for whole life time.







 2) we will provide some modules and some meterials such as cable, LED lamp, IC ect. For free parts to repair if there is something wrong with it during this period.







 3) free training: You could send your staff who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair, or we take video about the operate and repair way to user; Provide remote assistance and CAD drawing.







 4) technical support: Our engineer could be sent to guide the installation and test the software.









FAQ



Payment terms:



T/T, L/C, western union, moneygram, ect.



30% T/T in deposit, balance 70% T/T before shipment.



Lead time: Below 50sqm, it will take about 2-3 weeks after receiving deposit.







Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs. My Skype: zxsales004



3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
