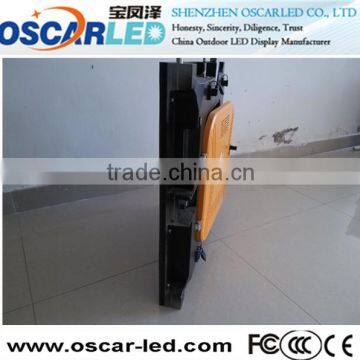

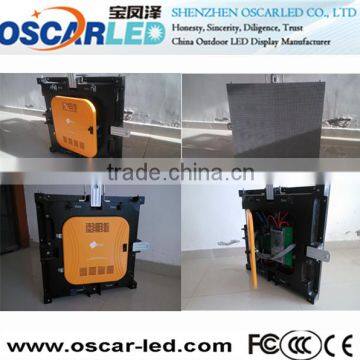

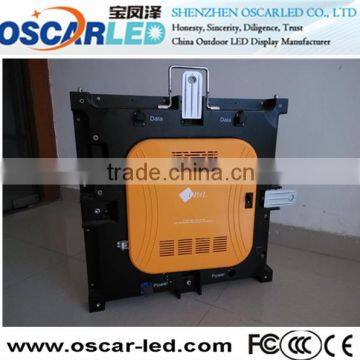

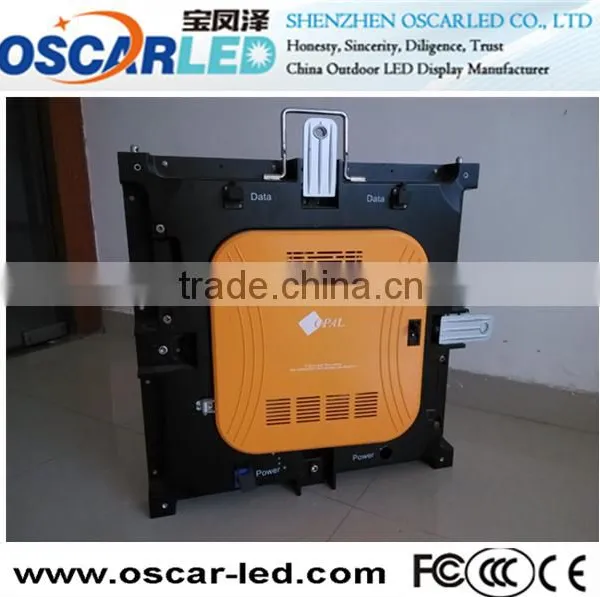

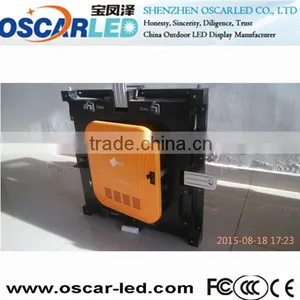

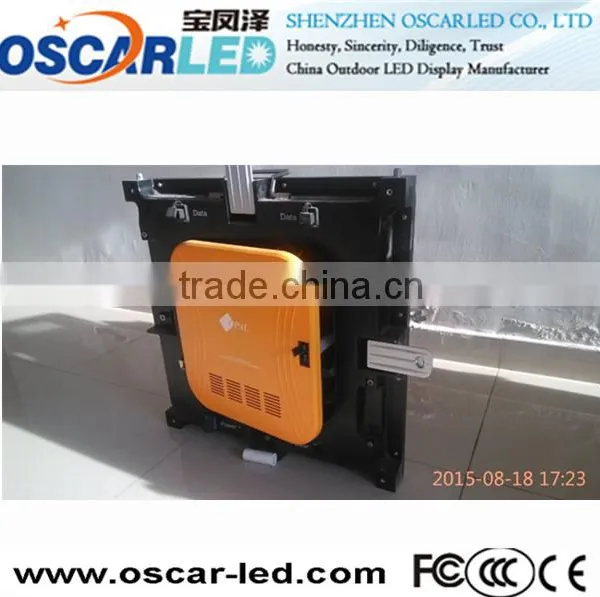

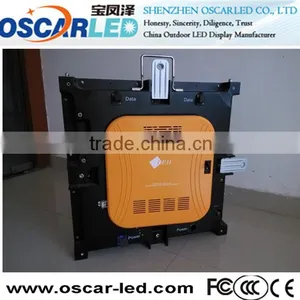

Aluminum Case Die-casting Ultra Thin Rental Indoor Led Display

Name: Aluminum Case Die-casting Ultra Thin Rental Indoor Led Display
Brand: OSCARLED
SKU: 105451981
Availability: InStock

US$ 900 - 1,500 MOQ: 1 Square Meter

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OSCARLED

Model Number:

p6mm

Shenzhen Oscarled Opto Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OSCARLED

Model Number p6mm

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 6mm

Screen Dimension Customized Size

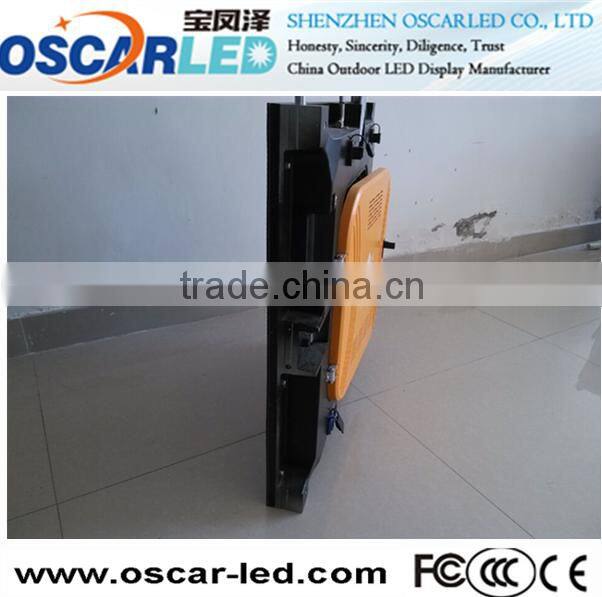

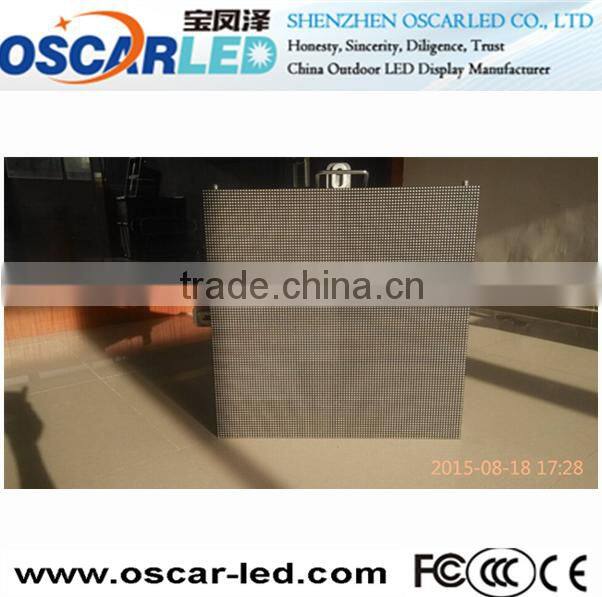

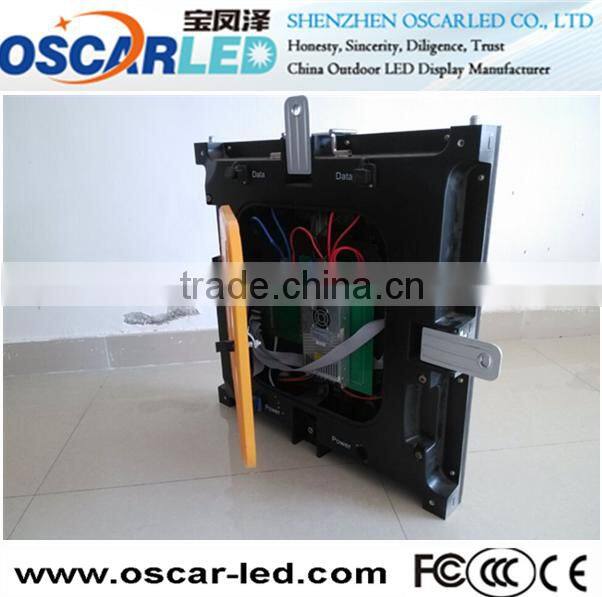

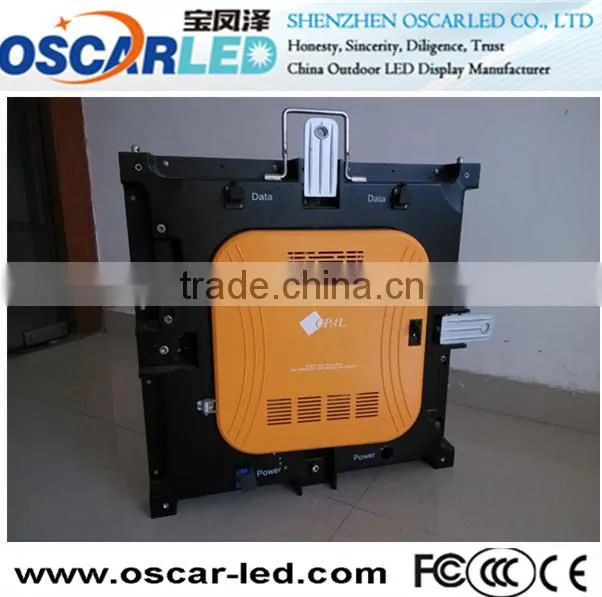

Aluminum case Die-casting ultra thin rental indoor led display

Product Description

Project classification		Conventional display
model		P6
Pixel unit module	Pixel pitch(mm)	6
	Pixel density (nits/m2)	27777
	LED type	SMD
	Resolution of module	32×32
	Module size(mm)	196×196
	Pixel composition	1R1G1B
Pixel unit cabinet	Cabinet size(mm)	576×576
	installation	fixed on the back
	Cabinet material	aluminum
	Cabinet weight(KG)	30
	The way the cascade	Aviation head
Display parameters
		brightness(cd/m2)	≥1200
	Power consumption (w/m2)	320 ave 700 max
	Driving IC	16 constant flow of chip
	Refresh rate(HZ)	≥500
	Display ratio (suggest)	4:3/16:9
Viewing angel(c)	H110 V50
System working voltage	88-132VAC176-264VAC 47-63HZ
Other parameter	Image adjustment	contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
	Brightness uniformity	The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
	Gray/color	Red green blue1024 grade10BIT,10.7 billion color
	Transmitting Distance	The shielded twistedpair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
	Input Signal	RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
	Control System	PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
	Life span	100,000 hours
	Out-of Control rate	0.0001
	To floor drain current	Less than 3.5MA
	Control system	Synchronized
	Operating Environment Temperature	-20℃—65℃ Optional
