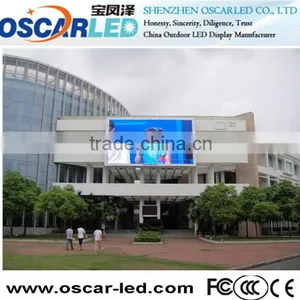

P6 outdoor SMD led display screen
No. |
Specifications |
Project |
1. |
Model |
P6 outdoor full color led display |
2. |
LED chip |
Epistar |
3. |
Physical Pixel Pitch |
6mm |
4. |
Physical Pixel Density |
27777dots/m2 |
5. |
Pixel composition |
SMD,1Red, 1Green,1Blue |
6. |
Moduel Size |
192mm*192mm |
7. |
Moduel resolution |
32*32dots |
8. |
Cabinet thickness |
< 170 mm |
9. |
Bracket of cabinet |
Easy to install onto the LED cabinet and unistall . |
10. |
Brightness |
≥ 6500cd/ m2 |
11. |
Colors |
16.7million |
12. |
Viewing angle |
Horizontal ≥120°, Vertical : ≥ 120° |
13. |
Viewing distance |
5m -100m |
14. |
Scan frequency |
≥600 Hz There will be one receive card in each cabinet ,so that the LED display wont sparked . Also it is very easy to move and connetct |
15. |
Video Frame Rate |
≥150 fps |
16. |

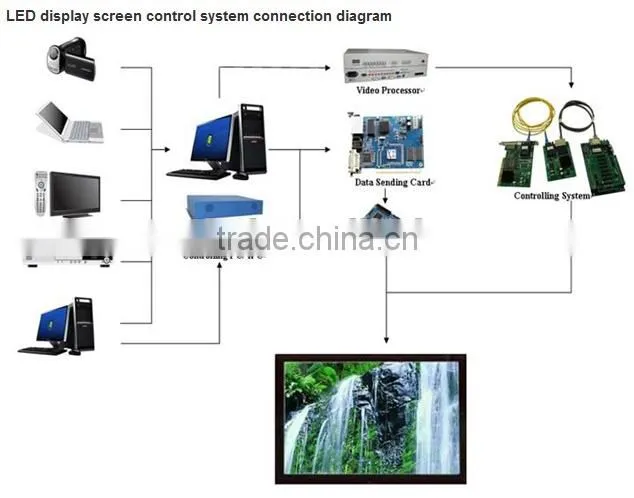

Control method |
Controlled by PC, synchronous display |
17. |
Life span( half brightness) |
≥100,000 hours |
18. |
Weight |
14Kg for cabinet |
19. |
Average power consumption |
300W/sqm |
20. |
Peak power consumption |
1000W/sqm |
21. |
Input voltage |
AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
22. |
Operating Environment |
Temperature:-20+60 Humidity:10%95%RH |
23. |
Operating system |
Windows 98/2000/ME/XP |
24. |
Type of video signal |
S-video, composite video ,RGB ,VGA ,DVI |
|
|
|
|
|
Factory introduction: Automatic DIP Assembly Machine, Wave-peak soldering Machine, Hot Air Reflow Soldering Machine, Glue Aging Room, Module and Complete Displays Aging Workshop, Waterproof Test Room, Light Intensity Tester and so on.
Our LED displays have been mainly sold to USA, Canada, Europe, and other countries, and have won good reputation from domestic and overseas customers. We always implement our philosophy: Good quality and after-sales service with competitive price.
Our products include: outdoor and indoor full color LED display, all kinds of moving message display, stage curtain LED display, outdoor SMD, rental LED screen, traffic LED sign and so on. The products are widely used for outdoor advertising and for message display at bank, hospital, school, expressway, etc.
Except good quality, we provide 2 years quality warranty and full technical support to every customer, including suggestion of CAD graphic of the steel structure for installation, remote assist to help user test the display.
Payment terms:
T/T, L/C, western union, moneygram, ect.
30% T/T in deposit, balance 70% T/T before shipment.
Lead time: Below 50sqm, it will take about 2-3 weeks after receiving deposit.
Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs. My Skype: zxsales007
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Before we offer you best quotation, we'd to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
