Help CenterP5mm Bus Advertising Led Display Sign for Bus/vehicle Use Led Bus Moving Message Display
Related Products
-
P10 Outdoor Full Color LED Mobile Display For Advertising On The TruckUS$ 1 - 999MOQ: 1 Set -
Truck Mobile Video LED Advertising BillboardUS$ 1 - 999MOQ: 1 Square Meter
-
Flexible LED Display For Truck WindowUS$ 1 - 999MOQ: 1 Set
-
P20 Led Car Display( Vehicle Led Display)US$ 1 - 9,999MOQ: 1 Set
-
Outdoor Mobile Led Display BoardUS$ 1 - 5,000MOQ: 1 Set

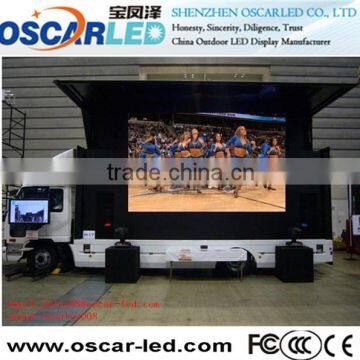

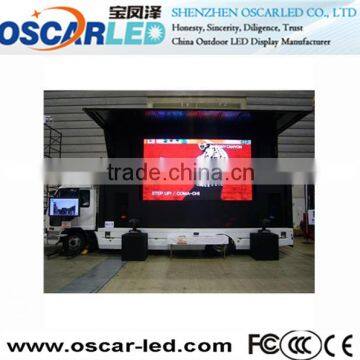

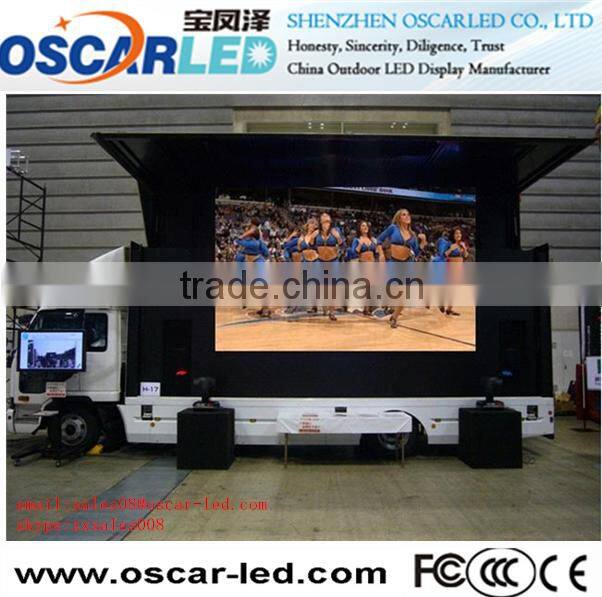

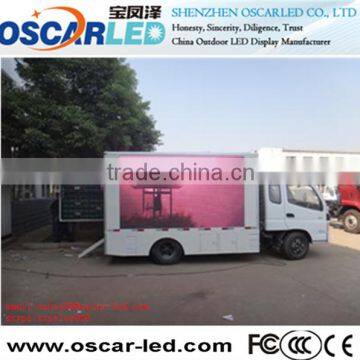

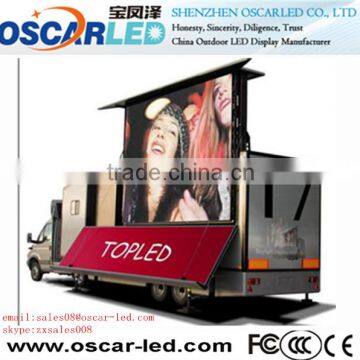

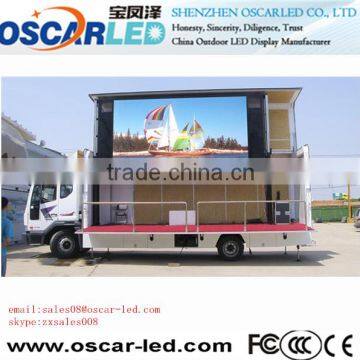

p5mm outdoor mobile bus led display screen
| List | Item | Description |
| 1 | Pixel Pitch | 5mm |
| 2 | Module Size | 160*160mm |
| 3 | Pixel Density | 40000dots/m2 |
| 4 | Pixel composition | 1R1G1B |
| 5 | LED Type | SMD3528 |
| 6 | Module Resolution | 32*32 |
| 7 | Power Consumption of Module | 22W |
| 8 | The Optimum Viewing Distance | 6~20m |
| 9 | The Optimum Viewing Angle | 140°/120° |
| 10 | Maximum Power Consumption | 600W/PC |
| 11 | Cabinet Size | 960*320mm |
| 12 | Cabinet Resolution | 192*64 |
| 12 | Cabinet Weight | 25-30Kg |
| 14 | Driving IC | MBI |
| 15 | Driving Method | 1/8 Scan Constant Current Driving |
| 16 | Frame Frequency | ≥60Hz/s |
| 17 | Refresh Rate | ≥500Hz/s |
| 18 | White Balance Luminance(CD/m2) | ≥3500cd/m2 |
| 19 | Operating Environment Temperature | -20℃—+50℃ Optional |
| 20 | Operating Voltage | 12V |
| 21 | Grey Scale | Display Colors≥16.7M |
| 22 | Brightness Adjustment | 256 grades of each color(R.G.B)can be adjusted manually and 8 levels of each color can be adjusted automatically |
| 23 | Input Signal | RF,S-Video RF, S-Vido, RGB, RGBHV, YUV etc. |
| 24 | Control System | PCTV non-liner editting card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer |
| 25 | Average No Failure Time | >5000 hours |
| 26 | Life-span | >100000 hours |
| 27 | Out-of Control rate | <0.0001 |
| 28 | Transmiting Distance | 3G WIRELESS |
| Packaging Details: | wooden case or flight case |
|---|---|
| Delivery Detail: | depends on the number |
If you want to import some products to test the market or quality, we can low the MOQ.
- LED display brand name: Accept to print your company logo.
- Voltage: 220V/50Hz (if your local voltage is 110V/60Hz, please let us know).
- Warranty time and terms:
1) 2 years quality warranty, maintenance for whole life time.
2) we will provide some modules and some meterials such as cable, LED lamp, IC ect. For free parts to repair if there is something wrong with it during this period.
3) free training: You could send your staff who have some knowledge of electronics to our factory and we will provide free training of how to maintain and repair, or we take video about the operate and repair way to user; Provide remote assistance and CAD drawing.
4) technical support: Our engineer could be sent to guide the installation and test the software.
Payment terms:
T/T, L/C, western union, moneygram, ect.
30% T/T in deposit, balance 70% T/T before shipment.
Lead time: Below 50sqm, it will take about 2-3 weeks after receiving deposit.
Notes:
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs. My Skype: zxsales004
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
Before we offer you best quotation, we'd to confirm some details if you don't mind:
1. What's the size of screen, cabinet you prefer?
2. What's the best viewing distance with your project?
3. What's the color of cabinet you need? Any logo on back of cabinet?
4. When do you need to get goods? Is this urgent?
5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
