oscarled factory directly supply shenzhen led display xxx video led display p10 rgb module virtual/p10 outdoor rgb led module

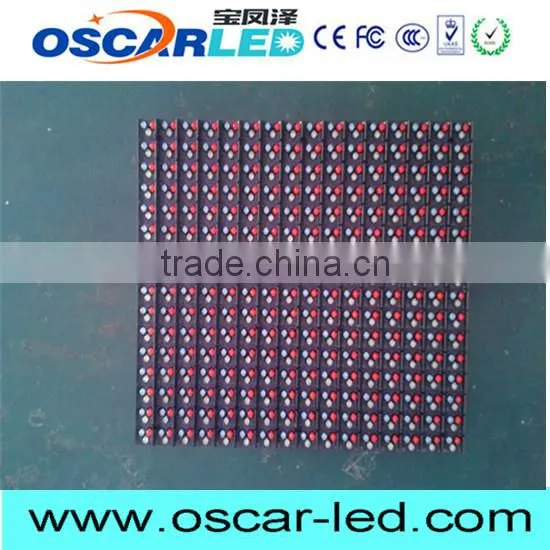

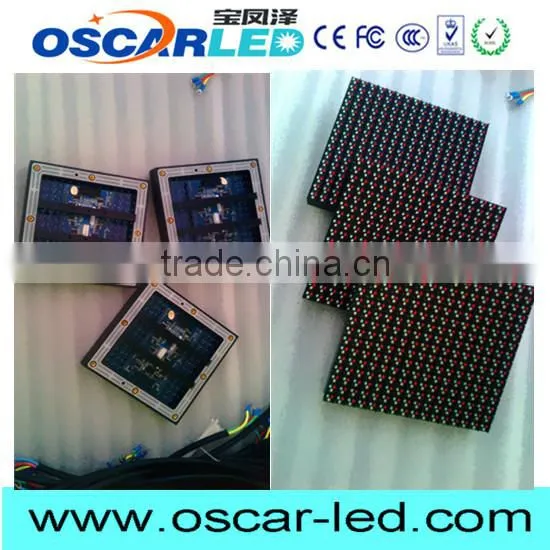

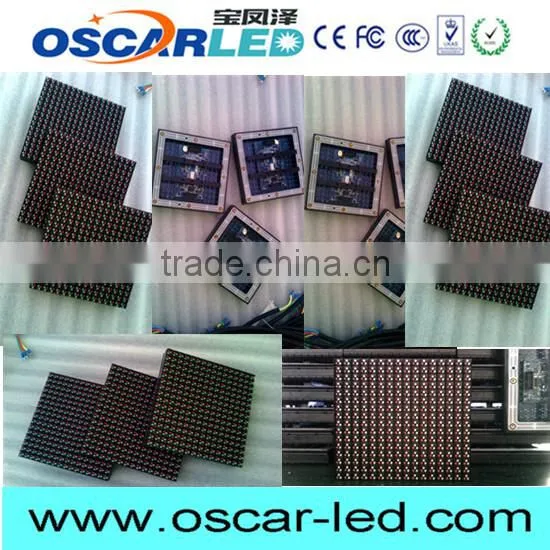

    P10 Led Module Led Display

Pixel Information

Pixel Pitch

10mm

Pixel Density

10000 Pixels/m2

 Pixel Configuration

1R1G1B

LEDs Brand

Red:   Silan/Epistar / Cree

Green: Silan/Epistar / Cree

Blue:  Silan/Epistar / Cree

LEDs Wavelength

Red:    615 nm - 625 nm

Green:  520 nm - 535 nm

Blue:   465 nm - 475 nm

LED Module

Module Size

160 mm (Width) × 160 mm(Height) = 0.0256/m²

Module Resolution

16 pixels(Width) × 16 pixels(Height) = 256 pixels

LED Cabinet

Cabinet Size

960 mm(Width) × 960mm(Height) = 0.92/m²

Cabinet Resolution

96 Pixels(Width) × 96 Pixels(Height) = 9216 Pixels

Total QYT Module Per Cabinet

6 Modules(Width) × 6 Modules(Height) = 36 Module

Cabinet Weight

60kgs

Cabinet Material

Steel or aluminum

Power

Input Voltage

100-240V AC, 50/60Hz

Max Power Consumption

750 Watt/ m²

Avg. Power Consumption

380  Watt/ m²

Viewing

White Balance

 X= 0.33 Y= 0.33 5600°K(Adjustable up to 9000°K)

Brightness

≥6500cd/m2

Brightness Uniformity

Luminance Discrepancy < 5%

Colors

16777216

Grey Scale(Level)

4096

Slot Between Neighboring Modules

< 1 mm

Best Viewing Angle

Horizontal:120°/ Vertical:60°

Viewing Distance

10 - 150 meters

Ambint Conditions

Temperature Range

Storage:-40 °c  to +85°c.; Working:-20°c to +60°c

Operating Humidity

10%90%RH

Ingression Protection Grade

Front Side: IP65 (Resist spraying of water gun directly);

Back Side: IP54  (Resist Rain)

Processing

Scanning Mode

1/4 Scan

Refresh Frequency

180HZ-600HZ, Adjustable

Signal Input

DVI, Composite Video for Live Video

Supported Networking

Through LAN/WAN, RS 232/RS485

Controller

Linsn, Xixun, DB-star, etc.

Other

Life Span

50,000 - 100,000 Hours

Software

Nova Star
