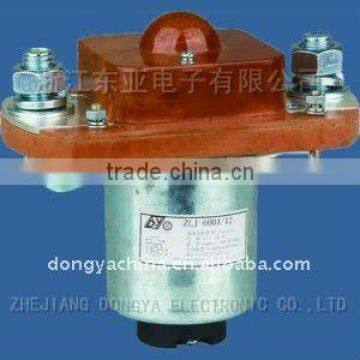

DC CONTACTOR N.O. TYPE ZLJ-600A

FOB Price

Negotiable / Piece

20 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

DC CONTACTOR ZLJ-600A
4 Poles
Certificate: CCC, TUV, ROHS

DC CONTACTOR ZLJ-600A

Model No.	ZLJ-600A
Contact Arrangement	1H (SPST-NO)
Contact Material	AgCdO(12)
Contact Rating(at Resistive Load)	600A 48VDC
Max. Switching Voltage	60VDC,250VAC
Max. Switching Power	100000VA
Endurance of Over Loading Current7Ie/10S	4200A/10S
Coil Rated Voltage	12,24,30,48,60,72,120VDC, etc
Coil voltage operating range	(40-70) % of coil rated voltage
Pick-up Voltage	(5-30) % of coil rated voltage
Contact Pressure Drop	At most 30mV when 100A
Insulation Resistance	Min. 100MΩ at 500VDC
Dielectric Strength (Between Insulated Electric Parts)	1500VAC 50 HZ/60 HZ (1 minute)
Operate Time	Max. 50mSec.
Release Time	Max. 50mSec.
Ambient Temperature	-40^oC~+55^oC
The shocking of fixed point	(10-200)HZAcceleration≤3.5g
Shocking	(60-100) time/minuteAcceleration≤4g
Mechanical Life	100,000 Operations (no load)
Electrical Life	10,000 Operations (at rated load)
