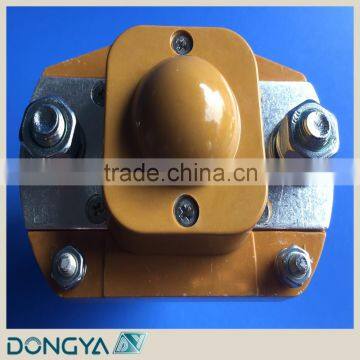

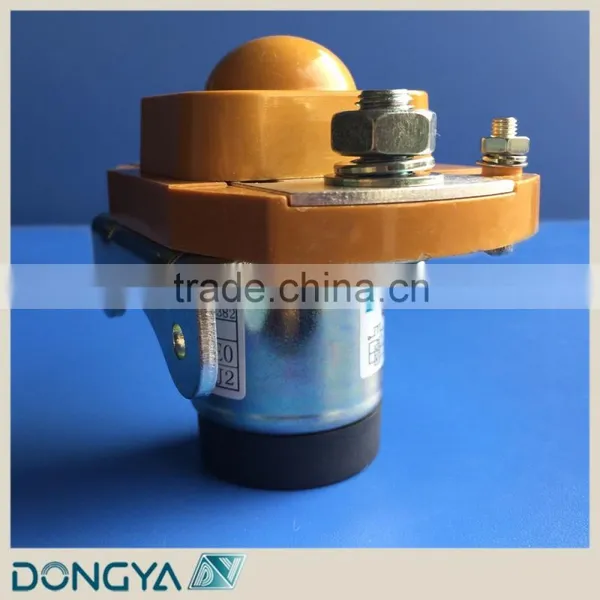

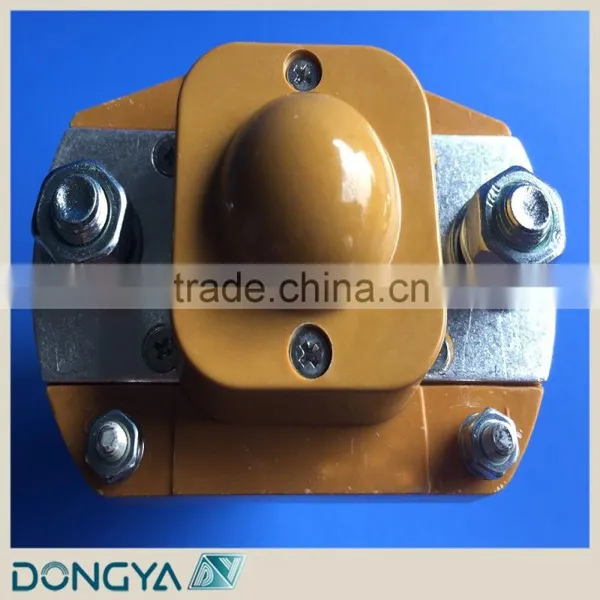

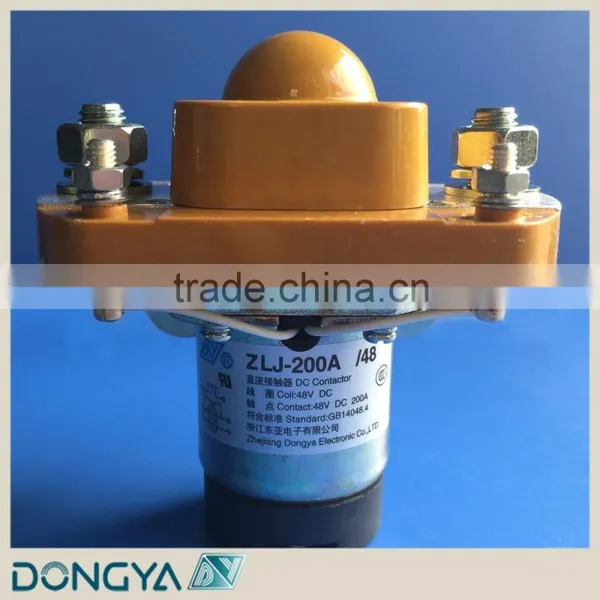

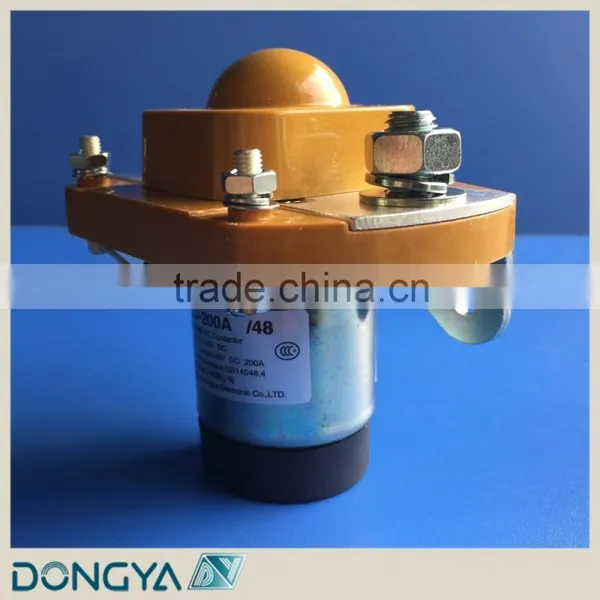

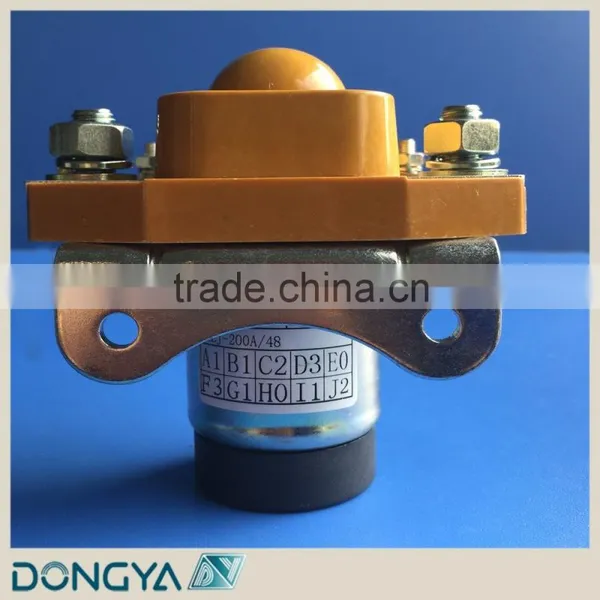

Help CenterDC CONTACTOR MZJ200A
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DY
Model Number:

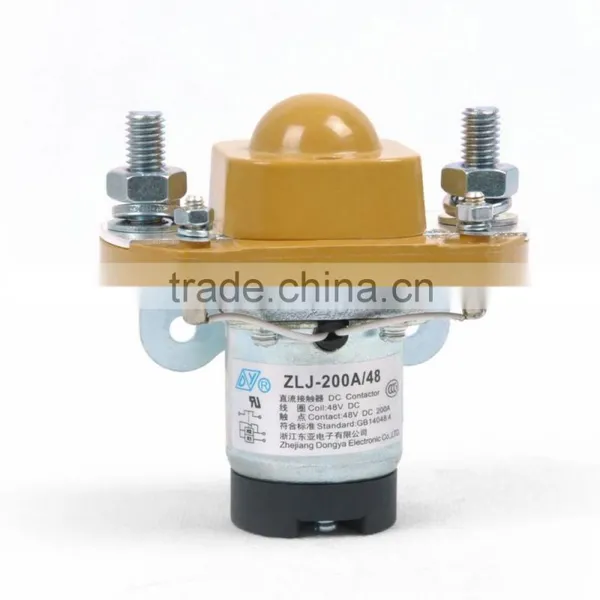

ZLJ-200A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
DY
Model Number
ZLJ-200A
Electricity Type
DC
Number of Pole
2
Phase
2
Main Circuit Rating Voltage
Other, 12VDC-120VDC
Main Circuit Rating Current
200a
Model No. |
ZLJ-200A/ |
Contact Arrangement |
1H (SPST-NO) |
Contact Material |
AgCdO(12) |
Contact Rating(at Resistive Load) |
200A 48VDC |
Max. Switching Voltage |
60VDC,250VAC |
Coil voltage operating range |
(85~110) % of coil rated voltage |
Pick-up Voltage |
(5~30) % of coil rated voltage |
Contact Pressure Drop |
At most 30mV when 100A |
Insulation Resistance |
Min. 100MΩ at 500VDC |
|
Dielectric Strength (Between Insulated Electric Parts) |
1000VAC 50 HZ/60 HZ (1 minute) |
Operate Time |
Max. 50mSec. |
Release Time |
Max. 50mSec. |
Ambient Temperature |
-40℃~+55℃ |
The shocking of fixed point |
(10~200)HZ,Acceleration≤3.5g |
Shocking |
(60~100) time/minute,Acceleration≤4g |
Mechanical Life |
100,000 Operations (no load) |
Electrical Life |
6,000 Operations (at rated load) |
