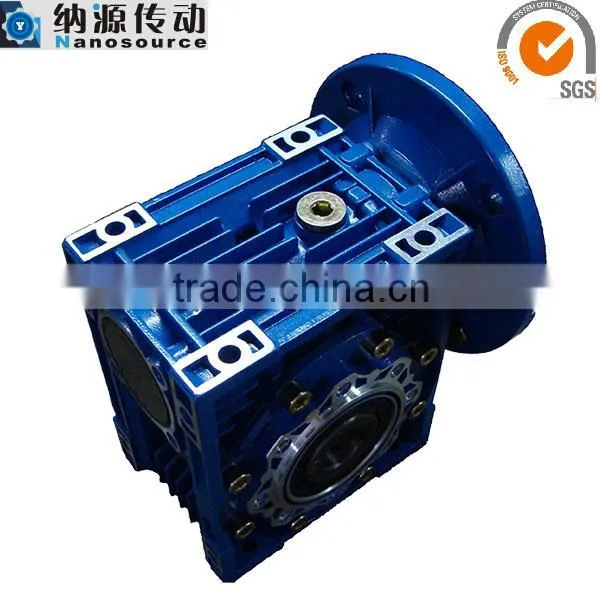

Nmrv075 25 : 1 Aluminum Worm Speed Reducer Gearbox,Gearbox Reducer

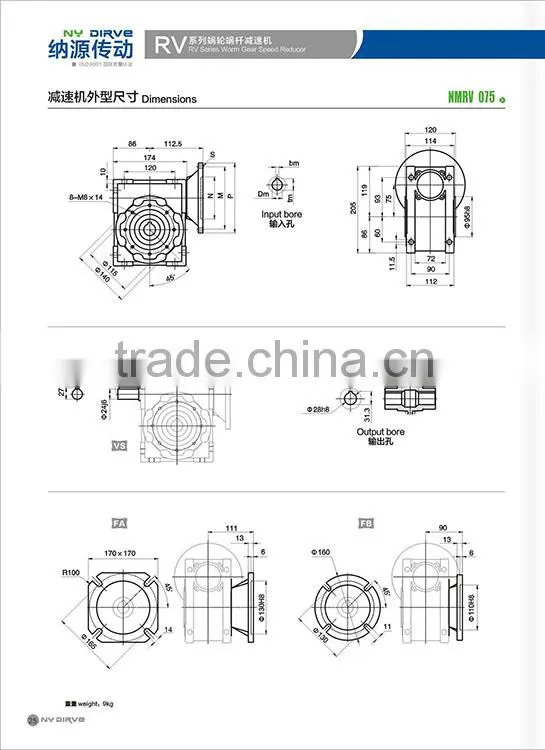

NMRV075 Dimensions
Company name: Hangzhou NaYuan Transmission Machinery Co., Ltd
Address: Dengta Village, Yipeng Town, Xiaoshan District, Hangzhou City, Zhejiang Province, China.
Quantity of employees: 101-200 employees
We are a professional manufacturer of Nmrv075 25 : 1 Aluminum Worm Speed Reducer Gearbox,Gearbox Reducer, passed the certificate of ISO9001 quality management system. All the products have the approval of SGS.
"NaYuan" as a famous brand in Hangzhou China, exports its products to more than 10 countries and regions, including Southeast Asia, Europe, Australia, Africa, Middle East, America, etc.
We deeply appreciate all our friends and hope to make further cooperation.
Our Characteristics: extensive experience with OEM, more than 3 year’s skilled worker.
Delivery Time: 7-15 workdays after receive 30% deposit.
24-hour self-service center.
Quality guaranteed
Support Factory Visit
Technology Supports
1. Our Nmrv075 25 : 1 Aluminum Worm Speed Reducer Gearbox,Gearbox Reducer is made of high quality aluminum alloy, light in weight and non-rusting
2. Large in output torque
3. Our Nmrv075 25 : 1 Aluminum Worm Speed Reducer Gearbox,Gearbox Reducer is smooth in running and low in noise, can work long time in dreadful conditions
4. High in radiating efficiency
5. Our Nmrv075 25 : 1 Aluminum Worm Speed Reducer Gearbox,Gearbox Reducer is good looking in appearance, durable in service life and small in volume
6. Our Nmrv075 25 : 1 Aluminum Worm Speed Reducer Gearbox,Gearbox Reducer is suitable for Omnibearing installation
1. Housing: die-cast aluminum alloy (Housing size: 025-090); cast iron (Housing size: 110-150)
2. Shaft: 20Cr, carbonize and quencher heat treatment make the hardness of gear tooth surface up to 56-62 HRC, retain carburization layer’s thickness between 0.3-0.5mm after precise grinding
3. Worm Wheel: Wearable bronze alloy
For Aluminum Alloy Housing:
1. Shot blasting and special antiseptic treatment on the aluminum alloy surface
2. After phosphating, paint with blue or sliver.
For Cast Iron Housing:
Before paint with blue or sliver, need paint with red antirust pain first.
1. Please confirm Gearbox Type and Ratio;
2. Standard packing is wooden case;
3. Shipment: By sea, by air or others, depend on you;
Our Superiority
1. Delivery on Time;
2. Professional Service: Customized is our advantage;
3. Good Quality: ISO 9001 Certificated;
4. Fast and Low Cost Deliver: Long-term cooperated shipping forwarders;
Before Transfer
1. Checking Oil leakage by Leak Tester
2. Checking Overheating & Noise
Our main products are gearbox, reducer, gear, worm, worm gearbox, worm reducer, speed gearbox, transmission, drive part, motor, coupling, planetary gearboxes, helical gearboxes, Sprockets Gears and Racks, variators, Timing Belt Pulleys and v pulleys and sheaves, shaft collars and motor bases, Chains and Belts, shaft and agricultural gearboxes, Bushes and Hubs Couplings, screw jacks and housing. Kindly, if you need Gearbox, please send us the Model, Ratio and Quantity. Then I will give you the best offer.
