Electric Resistance Wire Heating Cr20Ni30
- Shanghai
- Credit Card
You May Like
-
Electric Resistance Wire Heating Cr25Ni20
-
Chunhai Electric Strip Model OCr25Al5 10*0.5mm 0.2800ohm/m 20centigrade
-
Chunhai Electric Strip Model OCr21Al6Nb 10*0.5mm 0.2860ohm/m
-
Chunhai Electric Strip Model OCr21Al6NbCo 10*0.5mm 0.2860ohm/m
-
Chunhai Electric Strip Model OCr27Al7Mo2 10*0.5mm 0.306ohm/m
-
Chunhai Electric Strip Model Cr25Ni20 10*0.5mm 0.0.196ohm/m
Product Details
| Place of Origin | Jiangsu, China | Brand Name | chunlong | |
| Model Number | Cr20Ni30 | Type | Other, Bare, strip wire | |
| Application | Heating | Conductor Material | Other | |
| Conductor Type | Other, soft | Insulation Material | Other |
Product Description
electric resistance wire heating Cr20Ni30
Product Description
Resistance Alloy Wires is used for electrical heating element.
Widely used in metallurgy, industrial stoves, household appliances, machinery and electronics manufacturing industries do heat resistance material.
1.FeCrAElectrictrical Resistance Heating alloys with high electrical resistivity, temperature coefficient of resistance is small, high operating
temperature. good corrosion resistance under high temperature, and particularly suitable for use in a gas containing sulfur and sulfides, low price,
it is widely used in industrial electric furnace, household appliances, far infrared device ideal heating material.
FeCrAl type:1Cr13AI4, 0Cr21AI4, 0Cr21AI6, 0Cr25AI5, 0Cr21AI6 Nb, 0Cr27AI7Mo2 etc.Series electric flat belt, electric fire wire
2.Nickel chromium alloy with iron resistance electrothermal high resistivity, surface body sexual well. At high temperature and high intensity,
and a good performance and processing may welding nature widely used metallurgical, electrical, mechanical components and electrical
manufacturing industries for doing heat resistance material.
Ni-Cr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric
fire wire.
3.Product size:
Round wire dia.0.05—10mm;
strip thickness0.56—5mm, strip width6—50mm.
strip wire thickness0.1—0.6mm,strip wire width1—6mm.
cold rolled strip thickness0.05—3mm,strip width4—250mm.
Standard Specification:
| Grade | Main chemical composition | Hightest temperature ℃ | Rrsistivity µΩ.m | Melting point ℃ | Tensile strength N/mm² | Elogation % | Working life h/℃ | Magnetic properties | |||
| Cr | Al | Ni | Fe | ||||||||
| OCr21Al4 | 17-21 | 3-4 | - | - | 1100 | 1.23±0.06 | 1500 | 750 | ≥12 | ≥80/1250 | magnetic |
| OCr25Al5 | 23-26 | 4.5-6.5 | - | - | 1250 | 1.42±0.07 | 1500 | 750 | ≥12 | ≥80/1300 | magnetic |
| OCr21Al6Nb | 21-23 | 5-7 | - | - | 1350 | 1.43±0.07 | 1510 | 750 | ≥12 | ≥50/1350 | magnetic |
| OCr27Al7Mo2 | 22-24 | 5-7 | - | - | 1400 | 1.53±0.07 | 1520 | 750 | ≥10 | ≥50/1350 | magnetic |
| KSC | 26.8-27.8 | 6-7 | - | - | 1350 | 1.44±0.05 | 1510 | 750 | ≥16 | ≥60/1350 | magnetic |
| Cr20Ni80 | 20-23 | - | Rest | ≤1.0 | 1200 | 1.09±0.05 | 1400 | 750 | ≥20 | ≥80/1200 | Non-magnetic |
| Cr30Ni70 | 30 | - | Rest | ≤1.0 | 1250 | 1.18±0.05 | 1380 | 750 | ≥20 | ≥50/1250 | Non-magnetic |
| Cr15Ni60 | 15-18 | - | 55 | Rest | 1150 | 1.12±0.05 | 1390 | 750 | ≥20 | ≥80/1150 | Non-magnetic |
| Cr20Ni35 | 18-21 | - | 35 | Rest | 1100 | 1.04±0.05 | 1390 | 750 | ≥20 | ≥80/1100 | Weak magnetic |
| Cr20Ni30 | 20 | - | 32 | Rest | 1100 | 1.04±0.05 | 1390 | 750 | ≥20 | ≥80/1100 | Weak magnetic |
company:

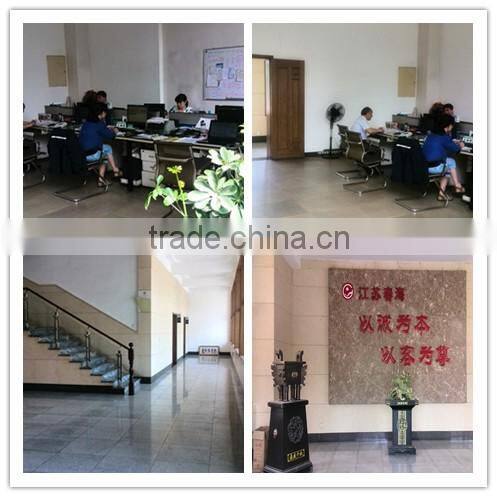

Office

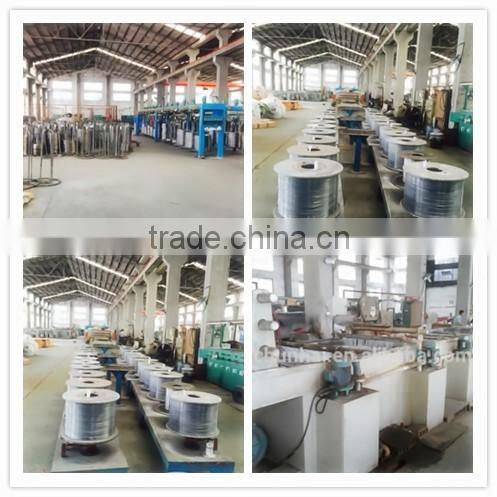

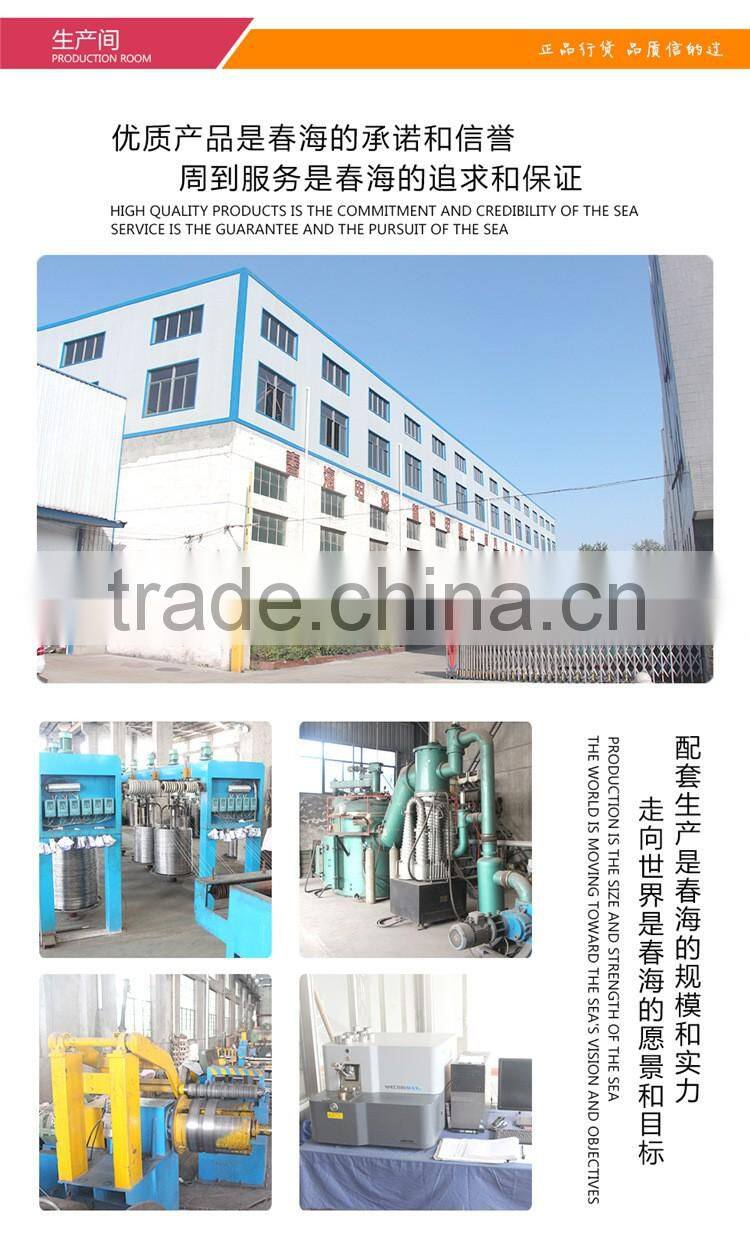

workshop

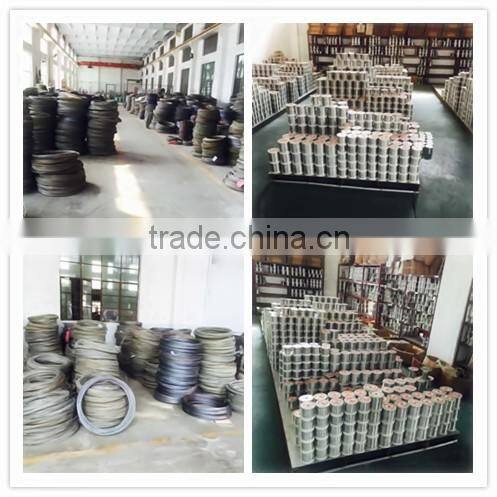

wareshop
certificate:

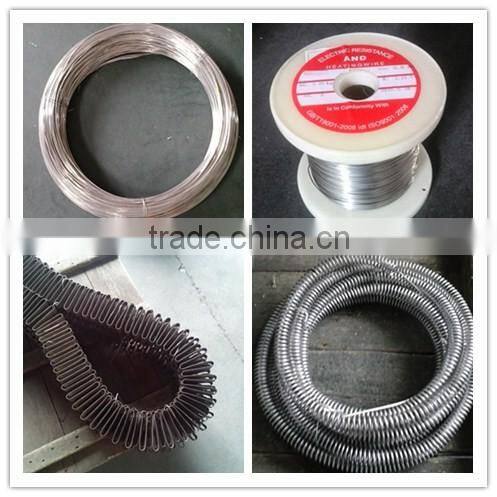

products:
More Products choice

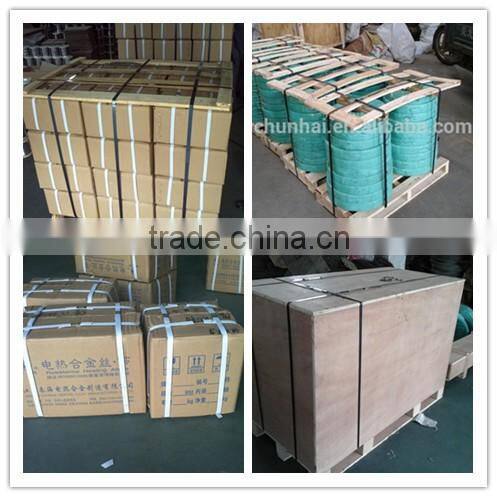

Packaging
Company Information
Jiangsu Chunhai heating alloy manufacture Co.,Ltd .specializes in producing high resistance alloys for electrical heating,precise resistance alloys and special steel .
We have been devoted to scientific development and self-creation for over 20 years.Integrating with smelting,hot rolling,drawing,heat treatment and complete flaw detection ensures the quality of our products.With the help of senior engineer and researchers,we successfully made out continuous new mterials and products about electrothermal alloy and sails them all over the country .Our products deeply get the confidence of foreigners.
Quality first and customers first is our tenet.We sincerely appreciate your visit and duidance of our users both home and abroad,and we wre willing to supply the excellent products and ade quate quality service for you.At the same time ,our company s willing to cooperate with you to make a brilliant future.
.
Welcome to contact us for more details ,most competitive price for you!
