Specifications
Famous Farm Tractor1 F16+R8 gearshift
2 Dual clutch, independet operation
3 All hydranulic sreering
4 With AC cabin
♦Features for QLN farm tractor
The best tractors are a perfect combination of a powerful and economic engine, an efficient transmission, versatile hydraulics, a modern electrical system, and an ergonomic operator platform.
All of these characteristics can be found in the tractors from Henan Qianli company.
♦About QLN 100hp agricultural tractor
1. The machines are easy to operate with operator comfort and safety given the highest priority.
The simple easy to access lever system offers the operator optimum driving experience.
The machine is equiped with effortless power steering and comfortable seating.
2. The steel construction bonnet and guards a built to last and handle the knocks and bruises.
Combine this with the reliable long stroke high torque 4 cylinder easy start diesel engine and you have a machine that is truly a pleasure to work with.
Dual hydraulic pumps ensure you always have the hydrauli flow required for steering and powered implements.
QLN 80A series of wheel tractos(from 80hp to 100hp)represent the new generation of manufacturing in China. The rugged machine contribute to commericial rliability and endurance.
♦Specification of AGRICULTURAL tractor QLN-1004
| Type drive | 4*4 |
| Engine | |
| Engine model | YTO/Yuchai/LOVOL |
| Capacity of fule tank(L) | 150 |
| Rated speed(r/min) | 2300 |
| Engine power(kw/hp) | 73.5/100 |
| Lowest fule consumption(g/kw.h) | ≤ 242 |
| Transmission | |
| Clutch | Dry, dual-stage, independent |
| PTO Speed(rpm) | 540/1000 or 760/1000 |
Gearshift |
16F+8R shuttle gear |
Hydraulic system | |
Hydraulic output valve |
2-Way(optional) |
Three point linkage | |
| Category of 3-point link | Category II |
Lifting capacity(at point of 610mm)KN 610mm |
>17.6 |
Technical paremeter | |
Dimension LxWxH mm |
4280x2085x2925 |
Wheel base(mm) |
2195 |
Track base(mm) front wheel |
1610~1950 mm |
Track base(mm) rear wheel |
1620~2020 mm |
The smallest clearance(mm) |
380 |
Front tyre |
11.2-24 |
Rear tyre |
16.9-34/ 18.4-30 (optional) |
♦Photos of Qianli Niu Large Farm Tractos

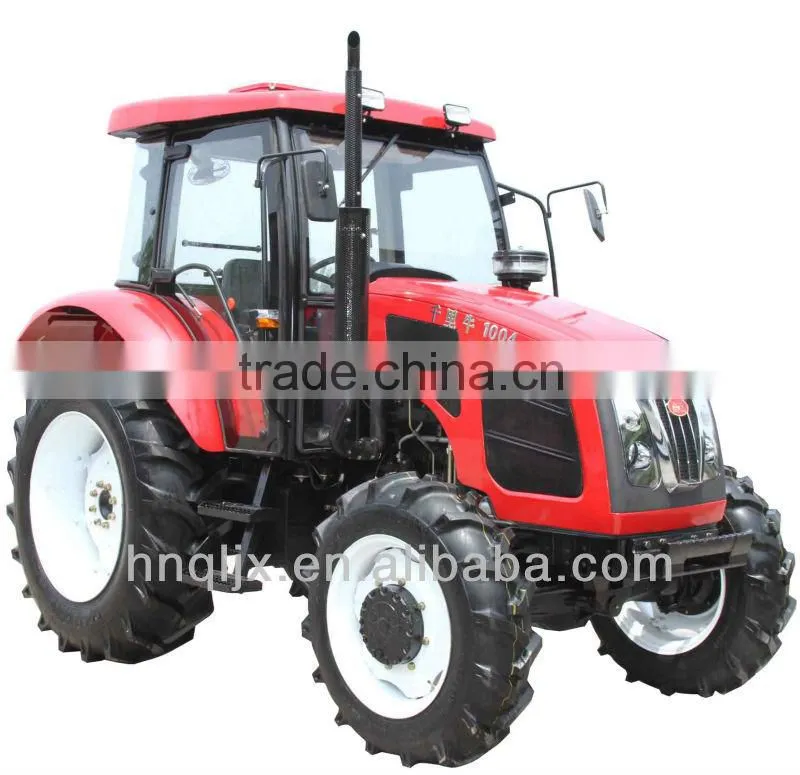

1. 1004 farm tractor Qianli Niu Brand

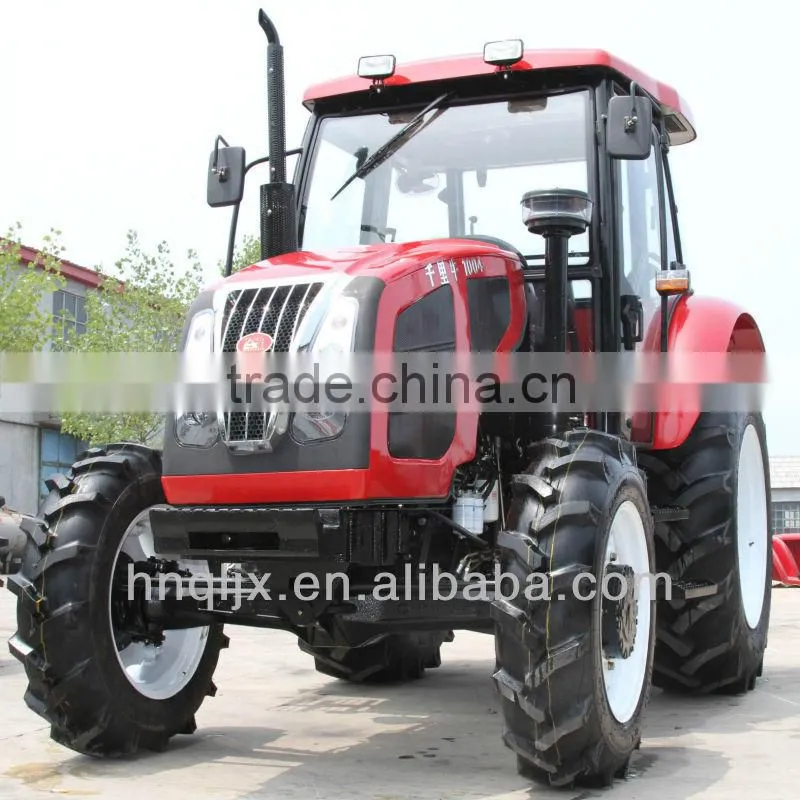

2. Majestic front view

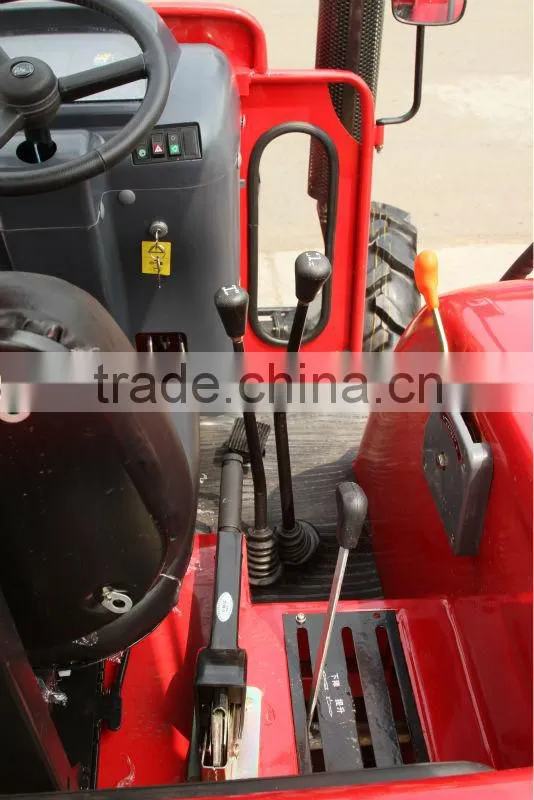

3. Out from within
♦Details of QLN Large Farm Tractor
♦We are professional and participate in many exhibitions
♦Our mission
1. Quality and credit go first
2. Convenient one-stop purchase
3. One year warrantly
If you are intrested in our products, please contact us. We are sincely looking forward to your patronage!
