Diesel Engine QLN1000 Hot Sale Agricultural Wheel Tractor(farm Implements Are Available)

Specifications

QLN farm tractors
1 F16+R8 shuttle gears
2 Dual clutch, independet operation
3 All hydranulic sreering
4 PTO 760/1000rpm

         Henan Qianli Machinery Co., LTD



•Product Features of 80A Series

 1. The famous brand engines YTO, Yuchai or LOVOL , quality is good enough, our after-sales service are available to many foreign countries.

 2. The basic configuration is high:F16 + R8; Two pairs of multi-way valve; 150 L double tank.

 3. 80 series (QLN1000 is included) have large chassis, powerful and reliable.

 4. Supply wearing parts, for a year the warranty period, resolve customer's after-sales problems.



♦Specification: AGRICULTURAL tractor QLN-1000



Type drive	4*2
Engine
Engine model	YTO/Yuchai/LOVOL,4 cylinder,turbocharging
Capacity of fule tank(L)	150
Rated speed(r/min)	2300
Engine power	73.5
Lowest fule consumption(g/kw.h)	≤ 242
Transmission
Clutch	Dry, dual-stage, independent
PTO Speed(rpm)	540/1000 or 760/1000
Gearshift	16F+8R shuttle gear
Hydraulic system
Hydraulic output valve	2-Way(optional)

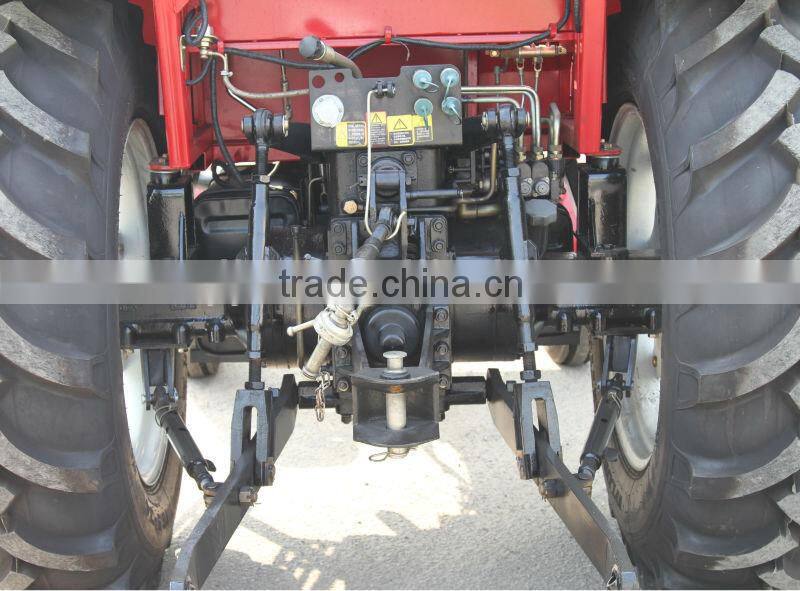

Three point linkage
Category of 3-point link	Category II
Lifting capacity(at point of 610mm)KN 610mm	>17.6
Technical paremeter
Dimension LxWxH mm	4280x2085x2925
Wheel base(mm)	2195
Track base(mm) front wheel	1610~1950 mm
Track base(mm) rear wheel	1620~2020 mm
The smallest clearance(mm)	450
Front tyre	6.5-20
Rear tyre	16.9-34/ 18.4-30 (optional)





The Reasons Why You Like and Choose it	This 80Aseries tractors have strong power, compact structure, advanced design, and  complete function
	Equipped with good quality engine showing advanced capacity, low fuel consumption and  high economic efficiency.150L enlarged fuel tank, ensure long working time
	Updated streamlined hood with good heat abstraction
	It has flat floor, right side installed operation system, all these characteristics makes operation comfortable and efficiency
	F16+R8 (optional 8+4) Transmission type, with reasonable matching of gear position  and strong agricultural adaptability
	Hydraulic power steering, dual clutch and independent control,hydraulic power in both  service braking and parking braking
	EPA engine is available





♦Customized optional of configuration



♦540/760 rpm, 540/1000rpm, 760/1000rpm PTO speed

♦common lifter or high pressure lifter, paddy tyre,

♦single or double way output valve,

♦common or luxury cabin,

♦category 2 or 3 links,

♦air conditioner

♦air brake,

♦canopy,

♦heater





♦We are professional, so we are successful

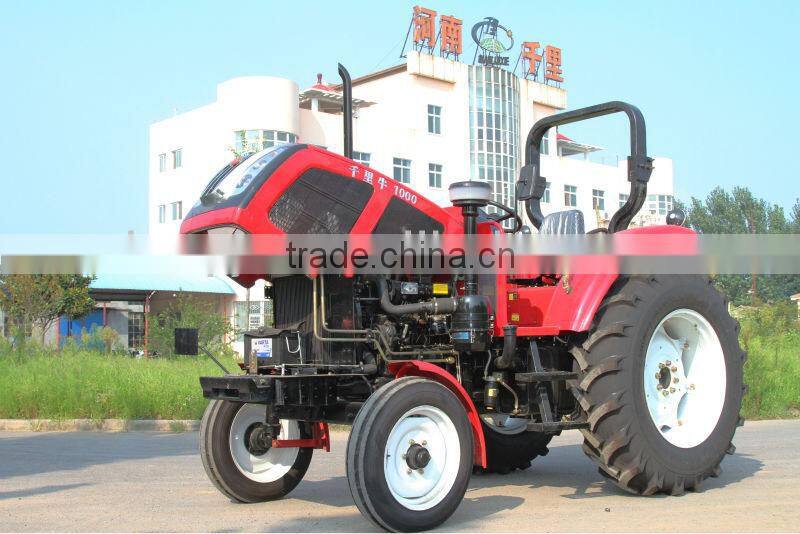

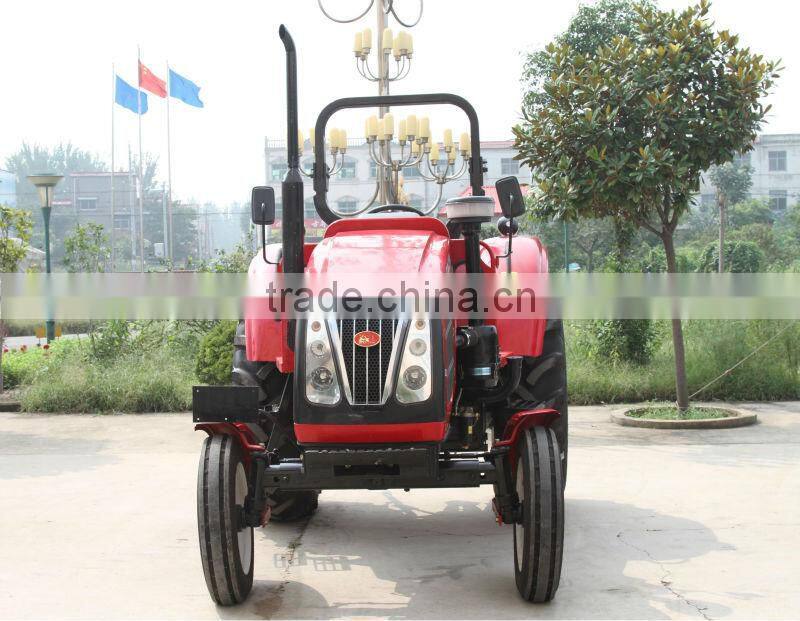

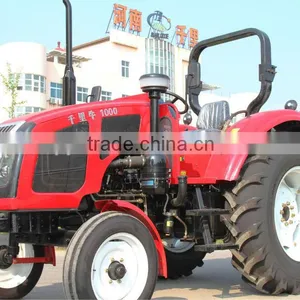

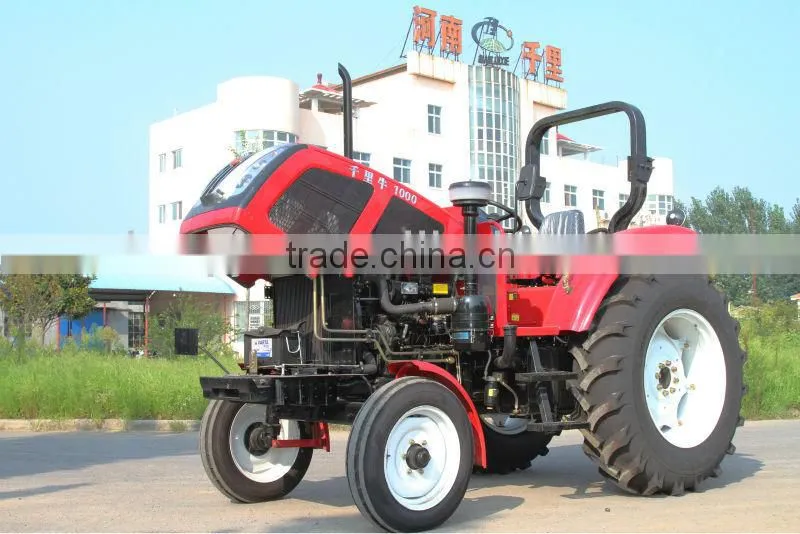

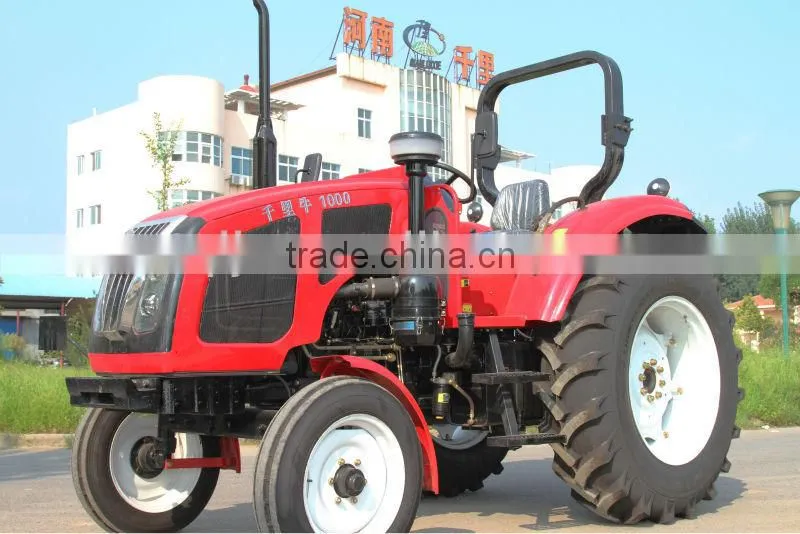

♦Photos of QLN1000 agricultural wheeled tractor

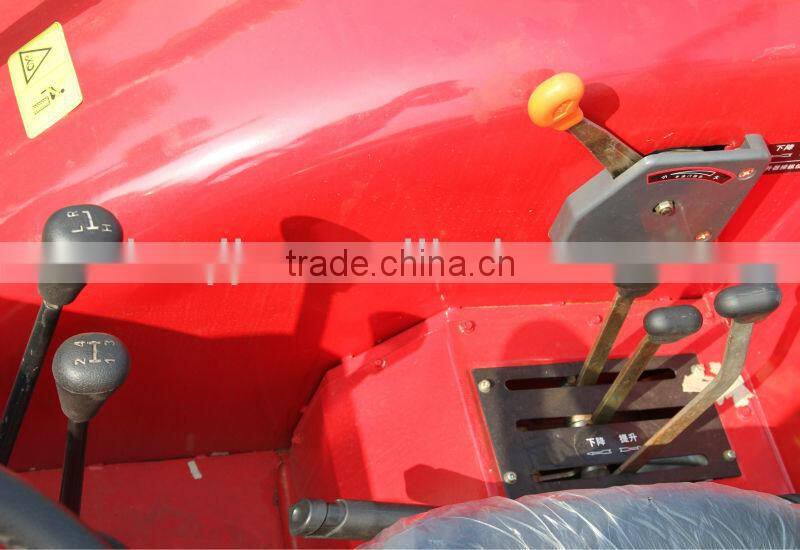

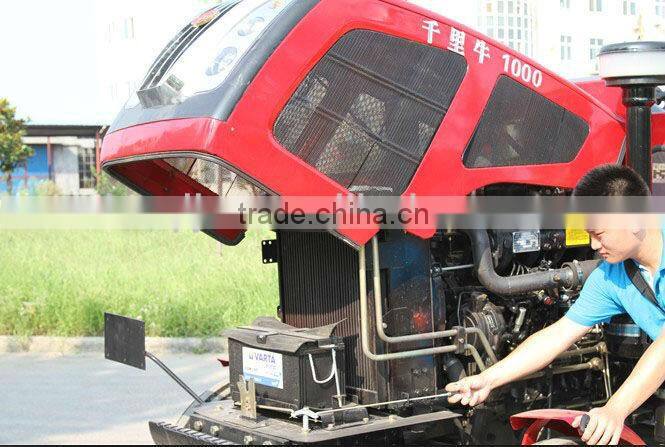

♦Details of QLN farm tractors







♦We QLN Brand has gained a world wide fame, our worknet has spread into many countries.

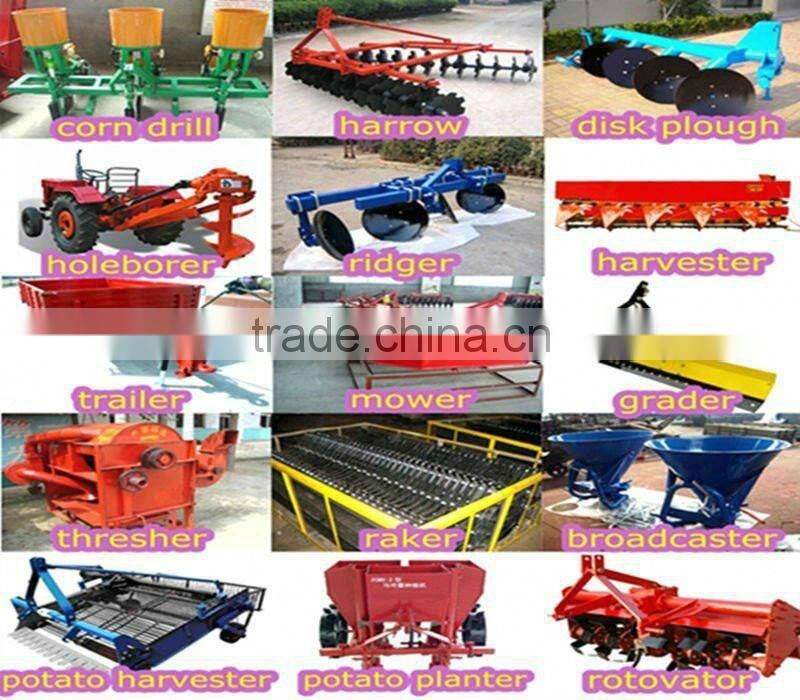

♦A wide range of farm implements we supply, we are able to offer you a one-stop purchase.





If  you have interests in our products,please feel free to contect us.
