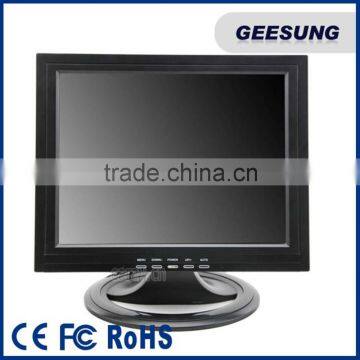

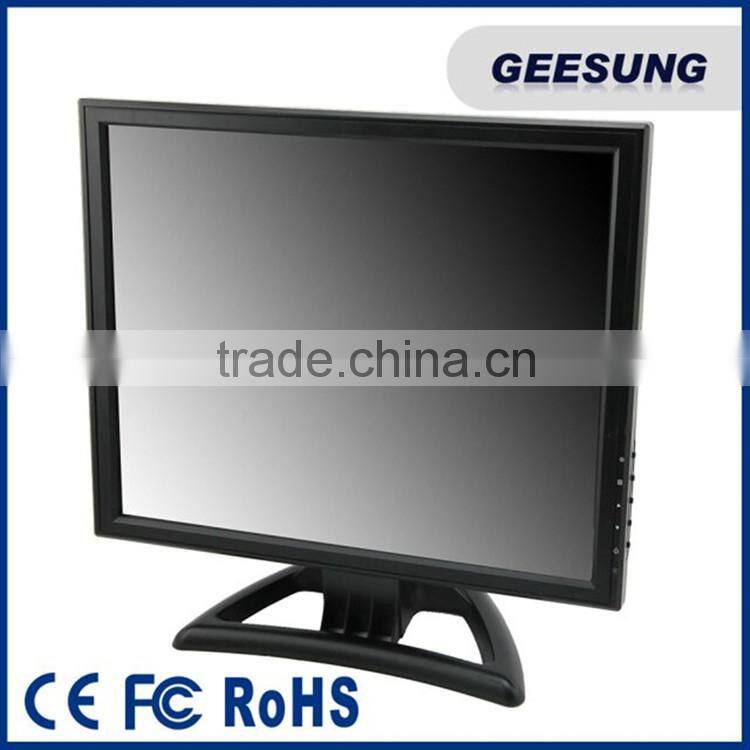

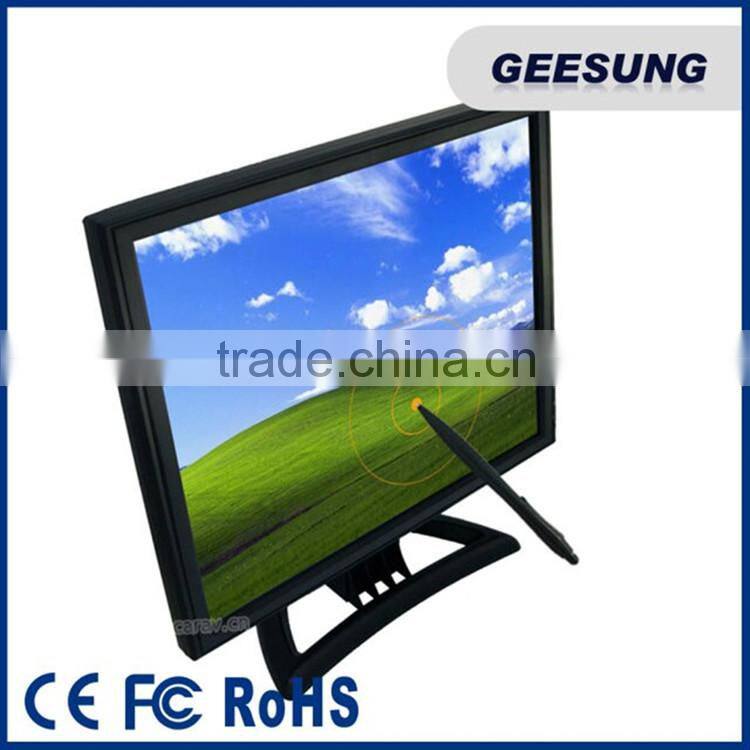

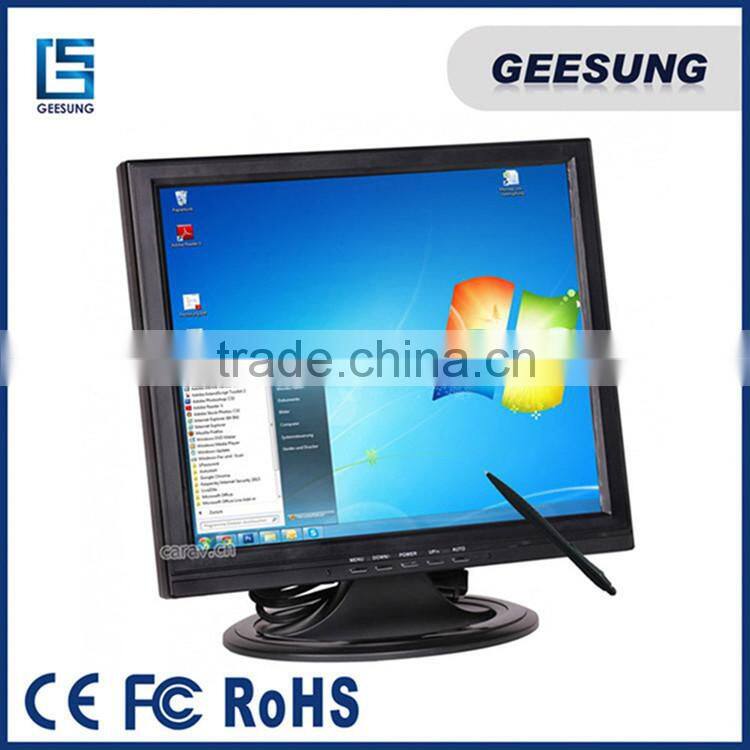

12v large square screen 15 inch lcd monitor
Features:
1. Digital TFT-LCD High Definition Panel
2. Standard VGA input (15 pin D-SUB)
3. Four wires resistive touch-screen panel (5-wires optional)

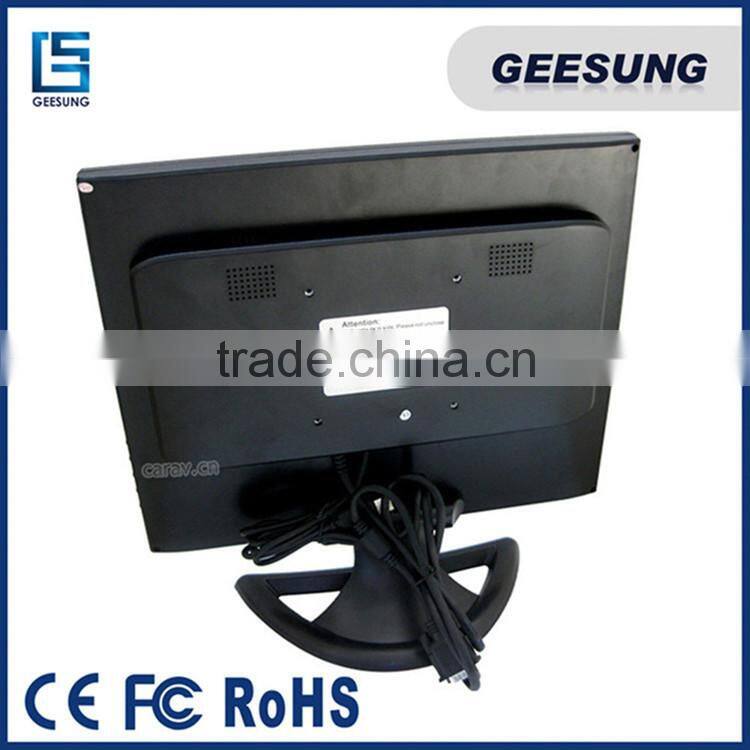

4. Has palstic stand. (Also has 4VESA hole on backside for wall hanging)
5. RCA input or RS232 port are optional
| Name | 12v large square screen 15 inch lcd monitor |
| Model | TM1501/TM1500 |
| Case color | Black |
| Type | 4-wire resistive touch panel |
| Backlight | CCFL/LED Backlight |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Contrast ratio | 350:1 |
| Brightness | 300cd/m2 |
| Function optional | HDMI/RCA optional |
| Pixel Pitch | 0.107 (W) X 0.372 (H) mm |
| TV system | Analog RGB/CVBS NTSC/PAL ( Auto ) |
| OS support | Windows (2000, CE, XP,Vista), UNIX, Linux, Mac OS X |
| Viewing angle | Horizontal: 170° Vertical: 160° |
| Response time | 10.4ms |
| Touch Pen Hitting Life | >= 1milions times |
| Colors | 16.7 million |
| OSD Languages | 8 languages |
| Operating temperature |
0 to 50°C |
| Storage temperature |
-20 to 60°C |
| Power input | 12V |
| Power Consumption |
<30W Typical |
| Warranty | 1 year warranty |
| Gency Approvals | FCC, CE, ROHS |

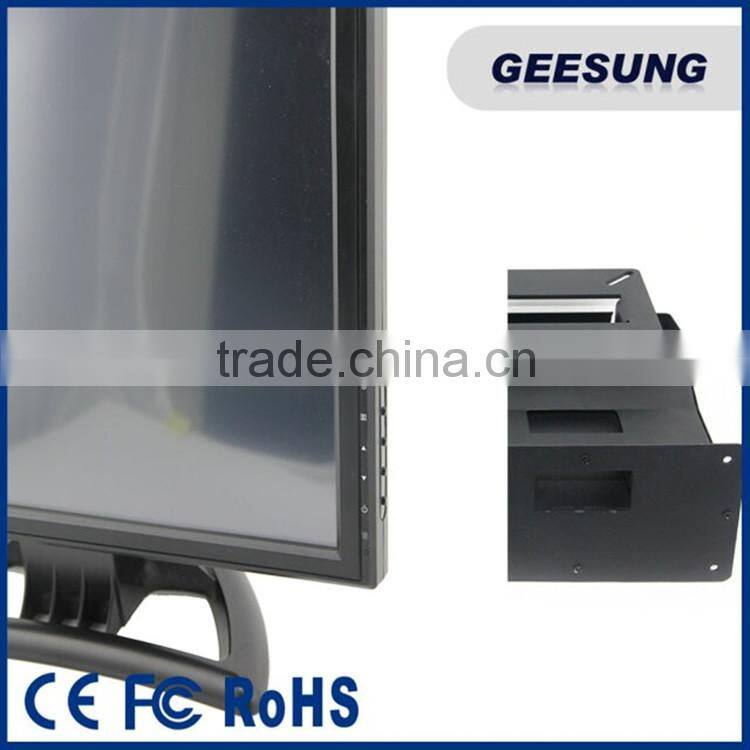

Metal stand for touch pressure optional:
Front button monitor optional:
We've devoted ourselves on POS Terminal, LCD Monitor for 11 years.
We supply high-performance products with competitive price.
All of our products are CE/ROHS/FCC approved with 12months warranty.
We have designed different package for each product, it not only can better protect the products, but also can save the shipping cost. Besides, we always choose the cheapest shipping way for our customers, also can ship according to your request.
1, Q: What warranty do you offer?
Geesung: Each product will have 12 months warranty.
We will offer technical supports or helps in your daily use for lifetime.
2, Q:Whether the price reasonable?
Geesung: With factory, we promise to provide reasonable and cost-effective price.
3, Q: What about minimum order quantity?
Geesung: We have no limit for MOQ, so you can even buy only 1 piece.
4, Q: Can you list the products of your company?
Geesung: Touch monitor, POS System, Receipt Printer, Cash Drawer, Barcode Scanner, Card Reader, Customer Display, Programmable Keyboard.
We work hard to provide high quality and reliable products, and at affordable prices to our customers.
If you have any interest, please feel free to contact me.
