TX6111T/1 Horizontal boring and milling machine made in China
- 100 Set / Sets per Month
- any port in China
- T/T Credit Card
Product Details
| Condition: | New | CNC or Not: | Normal | Production Capacity: | 100 |
| Place of Origin: | Fujian, China | Brand Name: | CHENG GONG | Model Number: | TX6111T/1 |
| Voltage: | three phase 380V | Power(W): | 11kW | Dimension(L*W*H): | 4900x2250x2950mm |
| Weight: | 16000kg | Certification: | CE certificate, ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

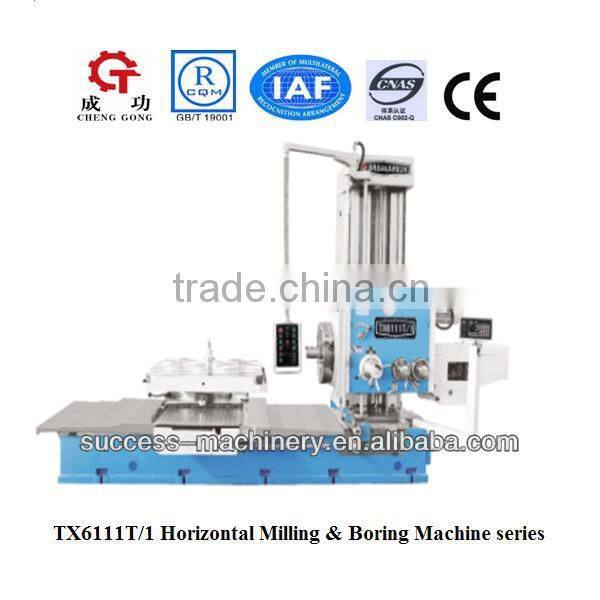

TX6111T/1 Horizontal boring and milling machine made in China

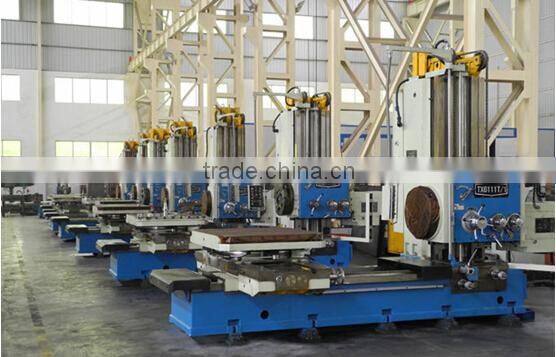

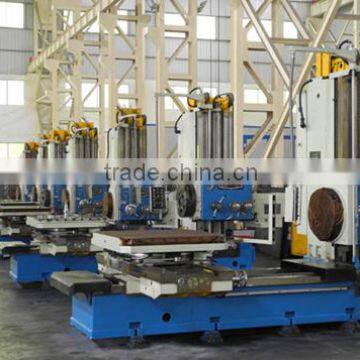

Machine picture:
Technical parameter:
Item | Unit | Specification |
Spindle diameter | mm | 110 |
Spindle taper | mm | ISO50#(7:24) |
Spindle speed | r/min | 9-1000(18 step) |
Main motor power | Kw | 11 |
Max. drilling dia. of spindle | mm | 50 |
Max. boring dia. of spindle | mm | 300 |
Speed of facing chuck | r/min | 6-221 |
Travel of facing chuck slide | mm | 170 |
Max. boring dia. of facing chuck | mm | 600 |
Table size(LxW) | mm | 1200x1100 |
Table load | kg | 2500 |
Cross travel of table(X) | mm | 1200 |
Vertical travel of table(Y) | mm | 1100 |
Longitudinal travel of table(Z) | mm | 1500 |
Axial travel of spindle | mm | 600 |
Rotary spindle, spindle box, worktable feeding range | mm/min | 12 step 0.04-6mm |
DRO |
| X,Y |
Overall size of machine | mm | 4900x2250x2950 |
Machine weight | kg | 16000 |
Note: Manufacturer reserves the right to improve & modify without prior notice.
Features:
1.TX6111T series horizontal milling & boring machines are suitable for rough and precision boring, milling in large and medium parts and box-parts. It is equipped with an optical device for positioning 90° in the work table, that can satisfy the turn around processing requirements of the large box-parts. The machine bed use wide guideway, it has good structure rigidity and large cross travel of table. It is equipped with power draw bar which easy for change tools.
2.TX6111T series is provided with a DRO and its reading accuracy is 0.005mm, it has reliability position precision. The machine use PLC controller.
Packaging detail: Dismantled into fumigated wood cases, loaded into containers and fastened by iron cable.
Shipping: 2-3 months
Engineers available to service machinery overseas.
Q1. What products you are manufacture?
A. We are professional manufacture VTL machines from 320mm, 600mm, to 1.2m,1.25m,1.6m,1.8m,2m, 2.8m,3.5m,4m,5m,6.3m,8m etc. We can make design according to customer products drawings. Our cnc control system can be
equipped with SIEMENS or FANUC. We also make horizontal boring milling machine, universal milling machine etc.
Q2. What about your price & quality?
A. Quality is our culture.With us your money in safe, your business in safe.we think our products will give you an edge over your competitors.Trust you will like our quality and our price.
We pass the ISO9001 and CE certifciation.
Q3. How about your Machine Service?
A. We are supply machine operation and maintenance training and give warranty 1-2 years.
We are supply install service in customer factory, we also can supply installation video if you need.
Q4. How about your delivery time?
A. Loading port: Xiamen port. Or according to your requirement.
General 1-3 months for delivery time.
Q5. How about your payment terms?
A. TT (with 30% deposit)
L/C at sight
Western union
Q6. How to arrive your factory?
A. Welcome to our factory. You will know our products better after the visit.
Line1. Choose to Quanzhou Railway Station. It take 30mins from station to our factory by car.
Line2. Choose to Jinjiang Airport. It take 40mins from airport to our factory by car.
Line3. Choose to Xiamen Airport. It take 1 hour from airport to our factory by car.
We are ready to convenience you to visit us. Hopefully to become your trustworthy company in China.
Why choose us?
√ We own a very strong R&D team and good experienced engineer group in our factory.
√ All our products starting from planning, developing, designing, producing, assembling, testing to final delivering are based on the customer’s requirement.
√ To achieve the highest quality and customer trust on our products, we never stop our technology improvement and know-how upgrade.
√ We are original import production equipments from Spain NICOLAS CORREA brand for guarantee our machine main parts quality.
√ We have our own casting factory with mature tech for casting body and parts more than 20 years.
√ We are design and production machines under the Taiwan and Europe standard.
Your detailed inquiry will be highly appreciated,we are looking forward to your reply!
