CARAV white lcd monitor usb touch monitor 12 inch touch screen monitor
Features:
1. Adopt industrial LCD screen, high native resolution of 800*600,
2. High contrast and brightness,
3. Wide viewing angle, which greatly improve the image layering.
4. High-precision four wires resistive type touch-screen for PC display. (USB port/COM RS232 optional)
5. Sensitive touch-screen, quick response
6. Standard VGA (15 pin D-SUB RGB) and Two RCA/BNC video input
7. Built-in speaker amplifier/PC audio input and earphone jack optional
| Name | CARAV white lcd monitor usb touch monitor 12 inch touch screen monitor |
| Model | TM1220 |
| Case color | White |
| Touch type | 4-wire resistive touch panel ( 5 wire optional ) |
| Backlight | CCFL Backlight |
| Resolution | 800*600 (1024*768 optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 320:1 |
| Brightness | 350cd/m2 & 400cd/m2 |
| Touch screen Interface | Serial COM(RS232) or USB |
Active Display Area |
206(W) X 156(H) mm |
| Pixel Pitch | 0.262 (W) X 0.262 (H) mm |
| TV system | Analog RGB/CVBS NTSC/PAL ( Auto ) |
| OS support | Windows (2000, CE, XP,Vista), UNIX, Linux, Mac OS X |
| Viewing angle | Horizontal: 170° Vertical: 160° |
| Response time | 12ms |
| Touch Pen Hitting Life | >= 1milions times |
| Colors | 16.7 million |
| OSD Languages | 8 languages |
| Operating temperature |
-10 to 60°C |
| Storage temperature |
-20 to 70°C |
| Power input | 12V |
| Power Consumption |
<20W Typical |
| Dimension | 268 x 199 x 41(mm) |
| Warranty | 1 year warranty |
| Gency Approvals | FCC, CE, ROHS |

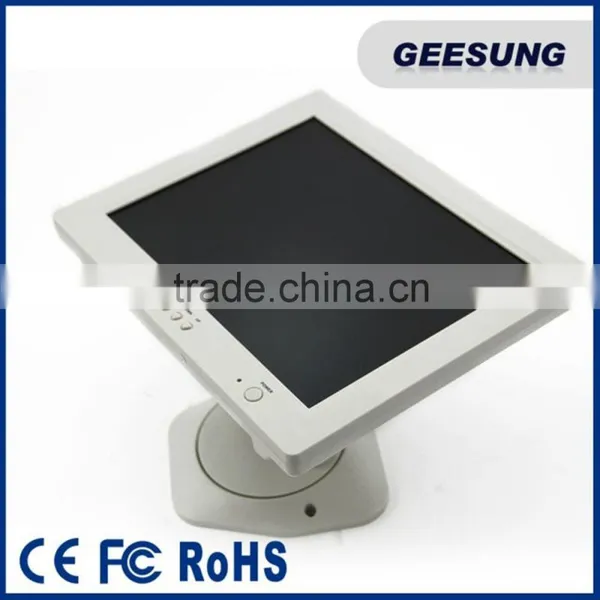

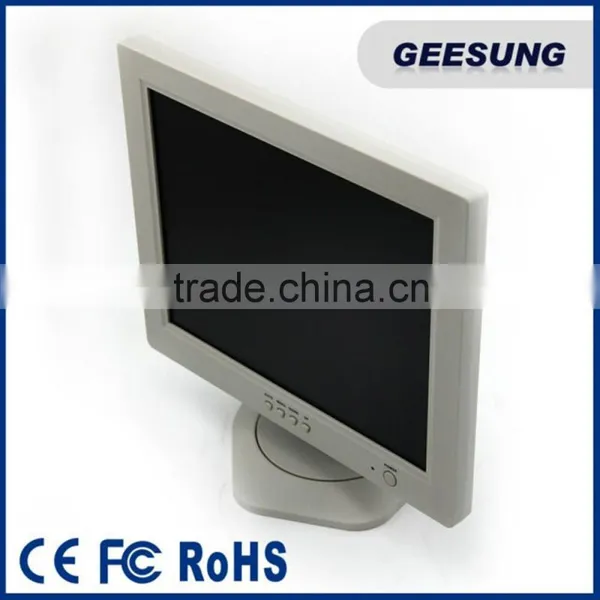

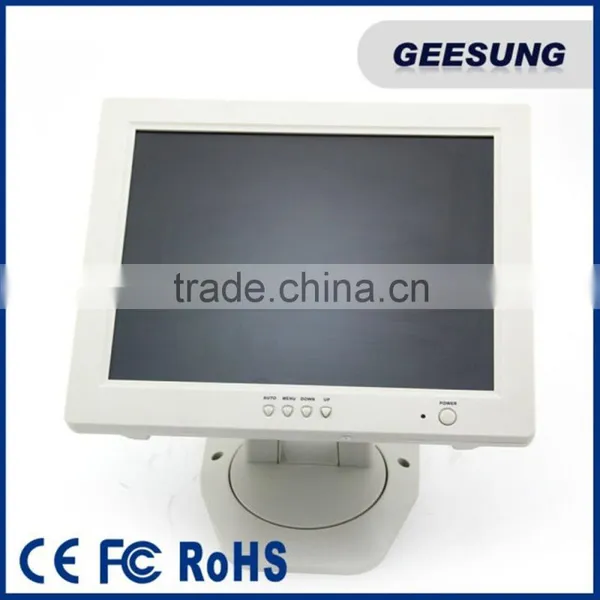

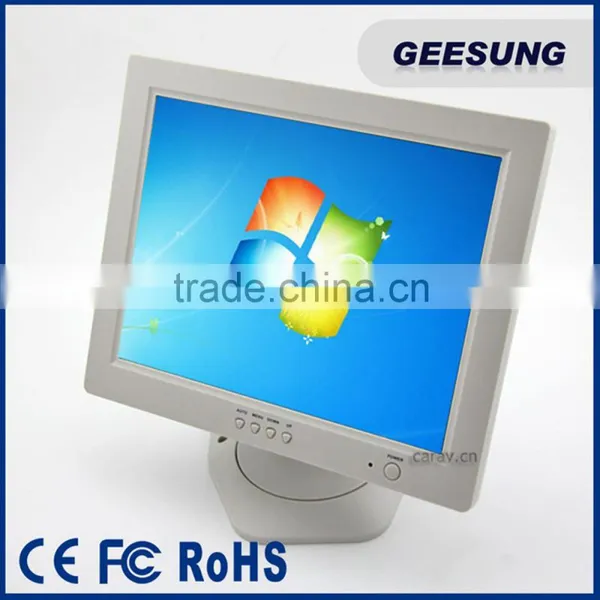

12 inch touch screen monitor:

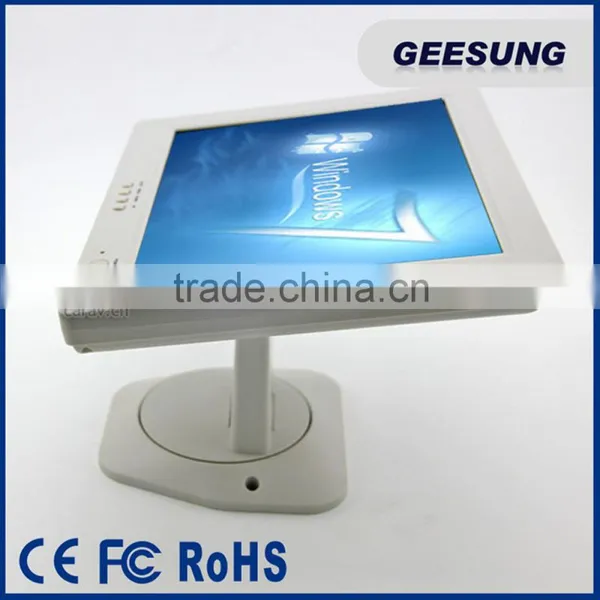

Side view of 12 inch touch screen monitor :

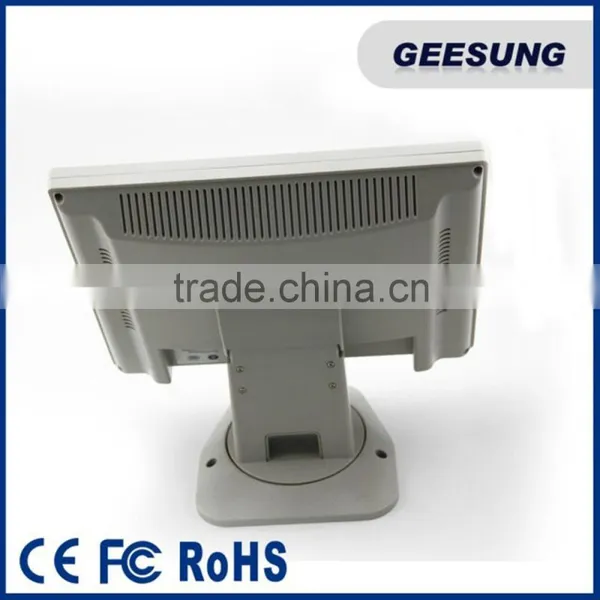

Back view of 12 inch touch screen monitor :
12 inch touch screen monitor with rotary stand:
We are 11 years professional touch screen monitor's manufacturer. Our products have certificates like CE, FCC and ROHS etc. We always adhere to the guiding principle of customer satisfaction to meet different market demands.
Compared to other manufactures' package, our package not only can protect the products better, but also can save the freight.
We are glad to inform you that we have a Trade Assurance Amount $48,000 granted by . It can safeguard buyer's payment to suppliers and ensure suppliers fulfill their obligations regarding order delivery and product quality. And this payment way doen't have bank fee, it will save your money.
