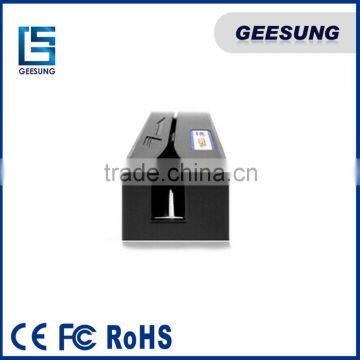

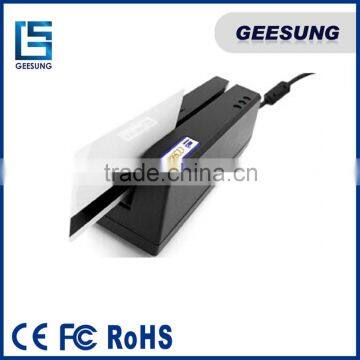

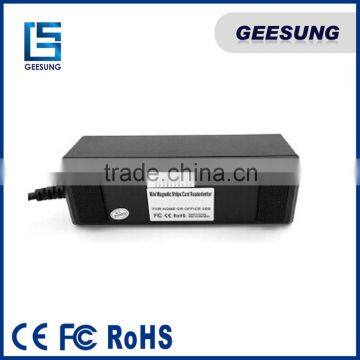

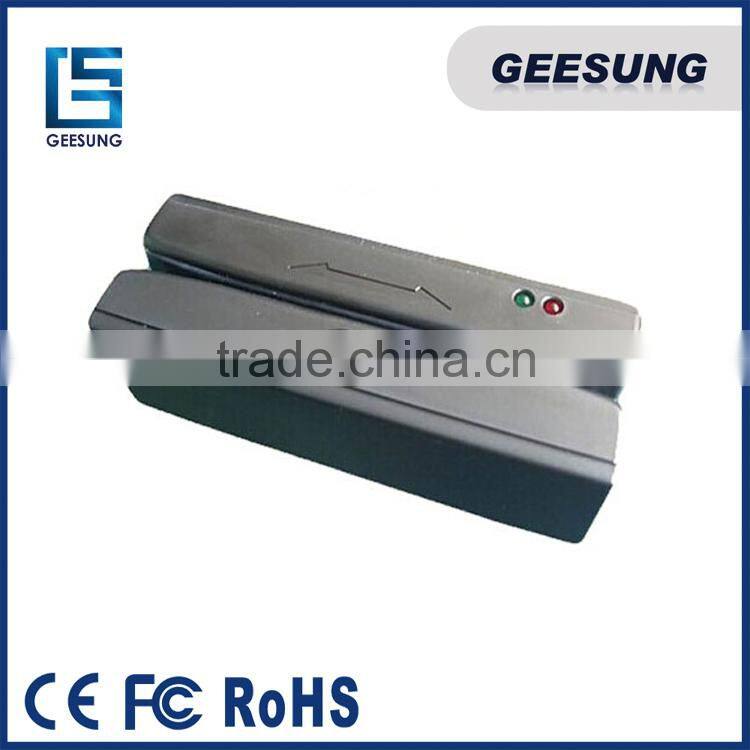

MSR,USB 2.0 Port Magnetic Stripe Swiper Card Reader Writer

Name: MSR,USB 2.0 Port Magnetic Stripe Swiper Card Reader Writer
Brand: Carav or OEM
SKU: 105375093
Availability: InStock

US$ 160 - 180 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Carav or OEM

Model Number:

CCS900

Shenzhen Carav Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Carav or OEM

Model Number CCS900

MSR,USB 2.0 Port Magnetic Stripe Swiper Card Reader Writer

Product Description

Brief introduction

1. Magnetic card reader writer

2.3 track readable

3.USB 2.0 interface

Type	MSR,USB 2.0 Port Magnetic Stripe Swiper Card Reader Writer
Communications	USB2.0,USB-OTG(Android 3.1 above) option
Maximum power consumption	100 mW
Temperature	Commercial-grade:-20°∼ 60 °C Industrial-grade:-20°∼ 60 °C
Humidity	90% non- condensing
Anti-static interference	15KV
Magnetic interference resistance	19Oersted
Vibration resistance	Amplitude 0.35mm,Frequency 10-55Hz, Three axis directions sweep vibration
Insulation Resistance	Hot and humid circumstances(40°,95%) Insulation resistance should not be less than 5MΩ
Dimensions	160mm(L) ×45mm(W) × 45mm(H)
Weight	180g
Magnetic card
Selectable tracks	yes
Read card	1/2/3tracks
Swipe	Double direction
Swipe speed	3 ~ 60 inches per second
Head life	Approx 500,000 passes
Parity and LRC checking	Built-in, audible and LED good read and error indicator
Cards supported	ISO 7811,AMMVA,CADMV

Operating Frequency	13.56 MHz
Smart Card Interface	ISO14443-A, Mifare
Sensing Distance	About 0-5cm
Programmable sound	ON or OFF
Cards supported	ISO14443A,MifareOneS50,MifareOneS70, MF3 DESFIRE, Ultralight, ISO14443B ,SONY felica
