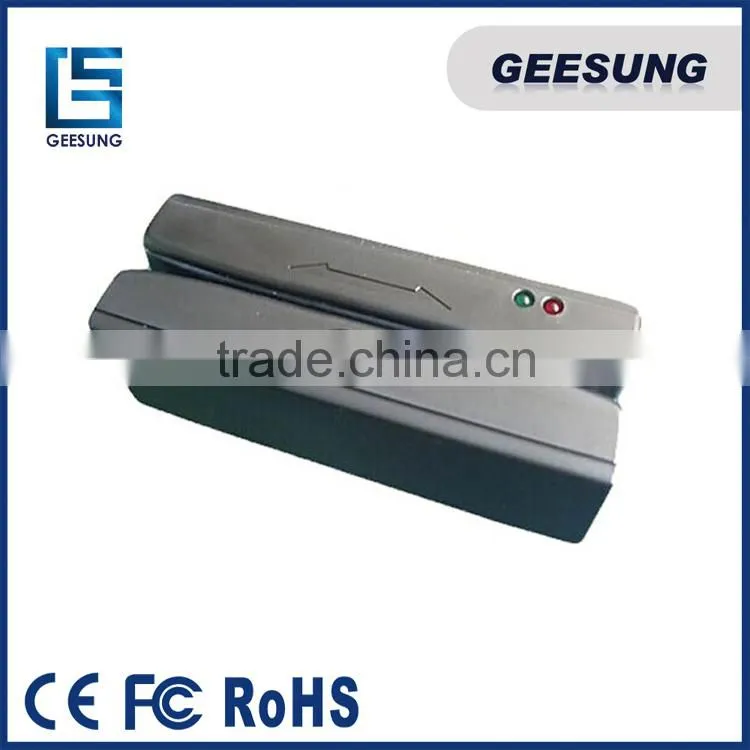

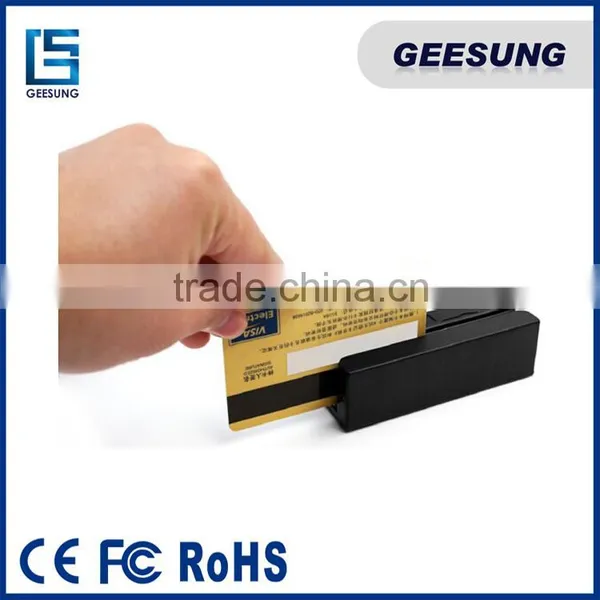

USB or Rs232 Port 3 Tracks Mini Swipe Card Reader

Name: USB or Rs232 Port 3 Tracks Mini Swipe Card Reader
Brand: Carav or OEM
SKU: 105375191
Availability: InStock

US$ 15 - 19 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Carav or OEM

Model Number:

CCS90

Shenzhen Carav Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Carav or OEM

Model Number CCS90

USB or Rs232 Port 3 Tracks Mini Swipe Card Reader

Product Description

Brief introduction

1. Magnetic card reader writer

2.3 track readable

3.USB interface

Type	USB or Rs232 Port 3 Tracks Mini Swipe Card Reader
Communications	USB2.0,USB-OTG(Android 3.1 above)
Maximum power consumption	100 mW
Temperature	Commercial-grade:-20°∼ 60 °C Industrial-grade:-20°∼ 60 °C
Humidity	90% non- condensing
Anti-static interference	15KV
Magnetic interference resistance	19Oersted
Vibration resistance	Amplitude 0.35mm,Frequency 10-55Hz, Three axis directions sweep vibration
Insulation Resistance	Hot and humid circumstances(40°,95%) Insulation resistance should not be less than 5MΩ
Dimensions	160mm(L) ×45mm(W) × 45mm(H)
Weight	180g
Magnetic card
Selectable tracks	yes
Read card	1/2/3tracks
Swipe	Double direction
Swipe speed	3 ~ 60 inches per second
Head life	Approx 500,000 passes
Parity and LRC checking	Built-in, audible and LED good read and error indicator
Cards supported	ISO 7811,AMMVA,CADMV

Operating Frequency	13.56 MHz
Smart Card Interface	ISO14443-A, Mifare
Sensing Distance	About 0-5cm
Programmable sound	ON or OFF
Cards supported	ISO14443A,MifareOneS50,MifareOneS70, MF3 DESFIRE, Ultralight, ISO14443B ,SONY felica
