Home > Consumer Electronics > Display & Accessories > Touch Screen > 52" 55" 65" 70" 82" Big Indutrial Lcd Panel 52" Inch Cctv Service Monitor With DVI/HDMI/BNC/YUV Port

52" 55" 65" 70" 82" Big Indutrial Lcd Panel 52" Inch Cctv Service Monitor With DVI/HDMI/BNC/YUV Port

52" 55" 65" 70" 82" Big Indutrial Lcd Panel 52" Inch Cctv Service Monitor With DVI/HDMI/BNC/YUV Port thumbnail-1
52" 55" 65" 70" 82" Big Indutrial Lcd Panel 52" Inch Cctv Service Monitor With DVI/HDMI/BNC/YUV Port photo-1
US$ 1,390 - 1,420 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 52"
Type:
Resistive
Contact Supplier Request Quote Chat Now
Shenzhen Carav Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Screen Size Other, 52"
Type Resistive
Interface Type DVI, Other, DVI, HDMI/BNC/VGA
Resolution Other, 1920*1080
Brand Name OEM/ODM/CARAV
Model Number CCTV-5208
Place of Origin Guangdong, China

Specifications

1.Industrial using,long work life
2.New industrial A+ lcd panel
3.Full metal case design
4.200pcs sell per month

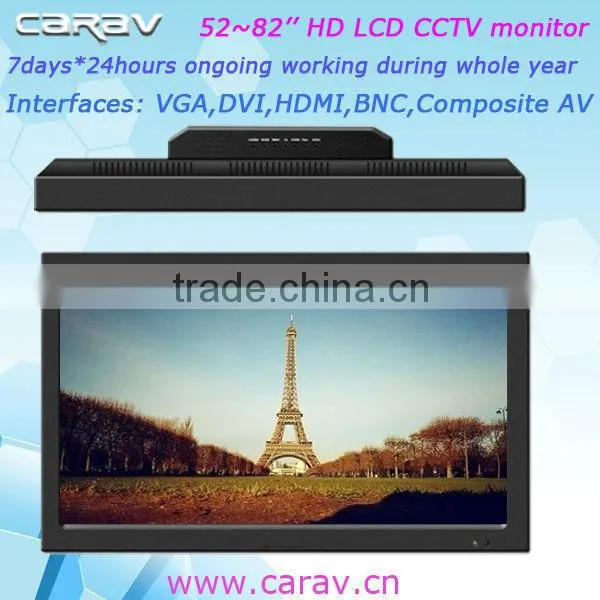

                           HD 52" LCD CCTV monitor







 52" 55" 65" 70" 82" big indutrial lcd panel 52" inch cctv service monitor with DVI/HDMI/BNC/YUV port



Product features:





1.Professional narrow frame design. With elegant appearance;
2.Used full-import industrial A+ lcd panel .special for supervisory monitors ;
3.High brightness, high contract, high definition, which improve the Hi-li of pictures;
4.16.7M color, realize the every detail of picture;
5.Adopt newest 3D digital filtering and 3D digital noise reduction technology to remove the obstruction of bright-color and parti-color;
6.5ms quick response time ,removing the smear, clear up the ghost automatically
7.Intelligent temperature control fan, environmental-friendly mute;
8.Long life time, stronger stability, the using life time is to be above 60,000hours. full year non-stop work 7*24hours;
9.Full metal case design, with anti-static. Anti-magnetic field, tamper-proof , radiation protection;
10.Multilevel menu display function, easy control;
11.Adopt standard VESA , hanging wall /desktop, easy installation ;

Specification:





LCD monitor size
52inch LCD CCTV monitor
LCD CCTV monitor model NO
CCTV-5208



Panel

Parameter
Panel type
52LCD Panel
Display size(mm)
1154(W)*650(H)
Display ratio
16:9
Black light type
CCFL
Resolution
1920*1080
Color depth
16.7M
Brightness
600cd/m2
Contrast
4000:1
Visual angle
178°/178°
Response time
5ms
Working life
60000hours
Function
Colour system
PAL/NTSC/SECAM
Menu language
Simplified Chinese, Traditional Chinese, English,Multi-countries language
Operating mode
Remote controller
I/O
interface
D-15 RGB input(VGA)
1
DVI input
1
HDMI input
1
Aberration(YUV)input(YPbPR)
1(BNC*3)
Composite AV input (AV)
3(BNC*3)
S-VIDEO(YC)
1(BNC*2)
Composite AV output(AV)
2(BNC*2)
Right audio
RAC*2
Left audio
RAC*2
Power
Power input
AC100-240V,50 /60HZ
Power consumption
≤220W
Standby power
≤3W
Work
Environment
Operating temperature
0°C—50°C
Storage temperature
-20°C-60°C
Operating humidity
10%-90%
Storage humidity
10%-90%
Related
Terms

Installation way
Hanging / Desk top
Product dimension
1250.6*739.2*127(mm)
Case colour
Black
Case material
Metal
Certificate
ISO9001,3C ect
Net Weight
47Kg





 More pictures:



52" 55" 65" 70" 82" big indutrial lcd panel 52" inch cctv service monitor with DVI/HDMI/BNC/YUV port52" 55" 65" 70" 82" big indutrial lcd panel 52" inch cctv service monitor with DVI/HDMI/BNC/YUV port
