paper plates/tray machine

Specifications

We supply plate machine for producing square or round paper plates.

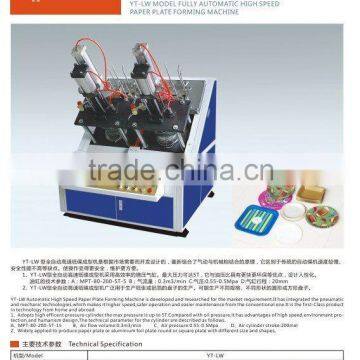

YT-LW model fully automatic high-speed paper plate making machine is designed and developed on the baiss of market demand,Reset the associative elements of  pneumatic and mechanism. It differs from traditional machines and avoid of the disadvantage of low-speed,,low safety etc. It makes an easier operation and more convenient maintenance. This machine takes high-efficiency increasing pressure Cylinder and the Maximum pressure can up to 5T.  Compared with Oil can,,The Cylinder is more environmental and humanistic.



1. Main Technical Parameters for Oil Cylinder
AMPT-80-200-5G-5   B air flow 0.3m3/min   Cair pressure 0.55-0.5Mpa DCylinder mileage  200mm
2YT-LW model fully automatic high-speed paper plate making machine is widely used in producing paper board and Aluminum foil plate. It can make Squre or Round plates in different specification and shape.



2. Main Technical Data

  Suitable sizes: 5-12 inch (the mould is changeable as per buyers)

  Raw Material: 100-1000g/m² Paper,AL.Paper..Paper board

  Productivity:  65-80 pcs/min (one working station)

  Power source: 220V,,50hz

  G.Weight:  500 kgs

  Dimension(L*W*H): 1420*1200*1900 mm.
