Specifications
it 's a special equipment for creasing and Cutting all kinds of paperboard, corrugated paperboard plastic and Leater productionBrief Introduction:

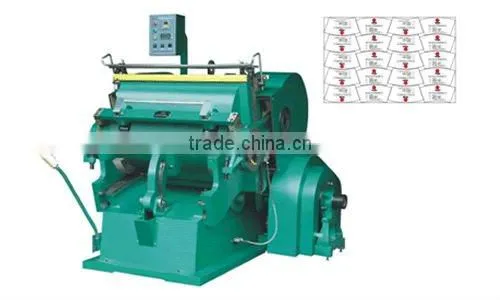

MYT930 Creasing and cutting machine is a special equipment for creasing and
Cutting all kinds of ordinary paperboard, corrugated paperboard, plastic and
Leater products, suitable for printing, packing decoration and plastic
Industries.
High strength due to one piece casting by using top quality materials for
Machine body. Smooth running, big pressure and low noise areobviously remarked as
4-step helical gear mechanism is adopted. Singie plate electromagnetic clutch is
Sensitive subreliable.
Operational altitude is reasonably arranged, Moving-bed opens to its optimun.
Electical system is designed in comformity with IEC standard. Single, continuous
Operation and opening Dwell range is adjustable. Safty system is reatly
Reliable. Concentrater lubricating system.
Main Technical Parameters:
- Max.Rule Area : 930 x 670 mm
- Speed: 23±2 stockes/min
- Max.rule length: <25 m
- Total power: 4 KW
- Power source: 380V,50hz, or other required
- Whole machine weight: 3200 kgs
- Dimension (L x W x H): 1850 x 1650 x 1900 mm
- There are many other sizes die cutting machines.
