Specifications
grating clamps for steel grating.Best quality and competitive price and faster delivery time.
grating clamps, steel grating clips,metal clips,installation fastener.
We are one of the biggest and professional manufacturer of high quality steel grating in China .We are located in Ningbo and near to Shanghai . Ningbo Lihong Steel Grating Co.,Ltd has approved ISO9001-2000 Quality Management System and we work ISO9001-2008 that is the newest edition now. There are many regular grating customers in USA ,AUS,Kuwait, UAE, Malaysia, ,Philippine,Singapore, UK,New zealand,Tunisia ,South Africa and so on. More than 60% of products is exported to the worldwide.
Our company is specialized in manufacturing and exports all kinds of steel gratings with the best quality and competitive price and faster delivery time such as steel / mill black and hot dip Galvanizing / and stainless grating flooring walkway, platform ,steel structures, stair tread, well cover, trench cover, sump cover,compound gratings, storage shelves, ladder, fences and handrail so on for construction project, oil project, seaport, power plant, water plant, defense project, chemical factory and so on.

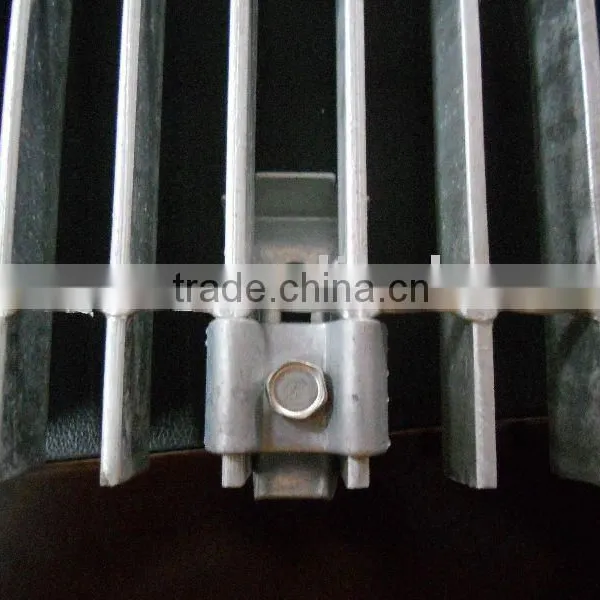

There are two ways of installation for steel grating.One way is by welding and the other is by installation grating clips.The welding method is suitable for those parts which will be fixed forever,such as platforms for equipments,while the method by installation fastener has the properties of easy to assemble and disassemble and also can prevent destroying the zinc layer.
We produce three kinds of grating clips, they are type -A,type -B ,Type-C.They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture for customized shapes per client's requirements.
Material is Q235 or stainless steel .
Surface treatment: Hot galvanizing ,painted ,powder coated.
Ningbo Lihong Steel Grating Co., Ltd
STEEL GRATING SPECIALIST, YOUR GRATING SOLUTIONS
Sales Director: Mr. David Huang, TEL: +86 13757445098, +86 574 88073967, FAX: +86 574 88073962
No. |
Item |
Description
|
1 |
Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc (Mr. David Huang)
|
2 |
Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. (Mr. David Huang)
|
3 |
Twisted Cross Bar Pitch |
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc (Mr. David Huang)
|
4 |
Material Grade |
ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
|
5 |
Surface Treatment |
Black, self colour, hot dip galvanized, painted, spray coating (Mr. David Huang)
|
6 |
Grating Style |
Plain / Smooth, Serrated /teeth, I bar, serrated I bar (Mr. David Huang)
|
7 |
Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS (Mr. David Huang) |
