Specifications
Steel greating clips (A type)low carbon steel clip
ISO9001 & SGS, GRATING SPECIALIST
There are two ways of installation for grating.One way is by welding,the other is by clip.The welding method is suitable for those parts which will be fixed forever,such as platforms for equipments,while the method by clip has the properties of easy to assemble and disassemble and of preventing destroying the zinc layer.

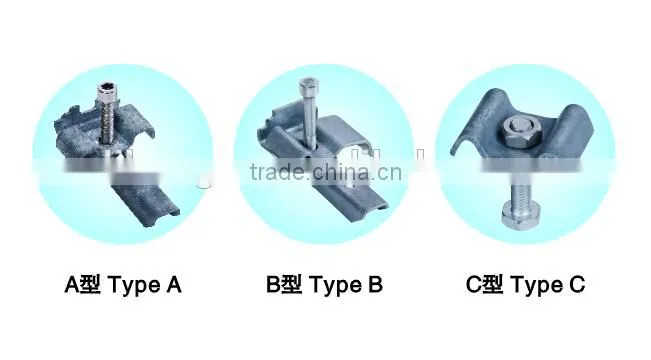

Installation clip is suitable for all types of gratings.It is made of top-cilp,bottom-clip and steel blots M8.
Welding method:at the fist bearing bar of each corner,the corner welding line should be not less than 20mm length and 3mm height.
Clip fixing method:It needs at least four sets of clip on every grating to fix.It's better to install more clips on the supportor if the span is larger.
Meanwhile,we can also supply stainless steel clips to meet different customers' requirements.
Ningbo Lihongyuan Steel Grating Co.,Ltd
ISO9001-2008 Company
STEEL GRATING SPECIALIST,YOUR GRATING SOLUTIONS
SALES:Ms.Mary Zheng TEL:+86 574 88073961 FAX:+86 574 88073962
| NO. | ITEM | DESCRIPTION |
| 1 | Bearing Bar |
25x3,25x4,25x4.5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5,65x5, 75x6,75x10---100x10mm etc I bar:25x5x3,30x5x3,32x5x3,40x5x3 etc US standard:1"x3/16",1 1/4"x3/16",1 1/2"x3/16",1"x1/4",1 1/4"x1/4",1 1/2"x1/4",1"x1/8",1 1/4"x1/8",1 1/2"x1/8" etc |
| 2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard:19-w-4,15-w-4,11-w-4,19-w-2,15-w-2 etc
|
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm,2''&4'' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel,etc |
| 5 | Surface Treatment | Black,self colour,hot dip galvanized,painted,spray coating |
| 6 | Grating Style | Plain/Smooth, Serrated/teeth, I bar, serrated I bar |
| 7 | Standard |
China:YB/T 4001-2007 USA:ANSI/NAAMM (MBG531-88) UK:BS4592-1987 A.U:AS1657 Germany:DIN24537-1-2006 Japan:JIS |

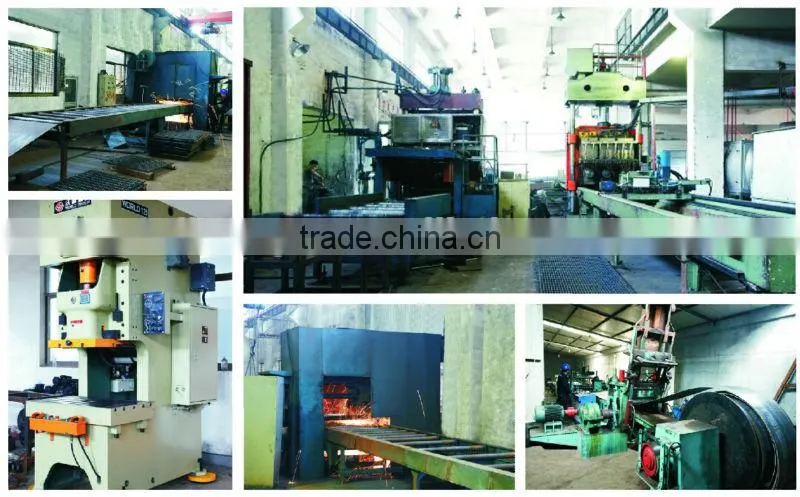

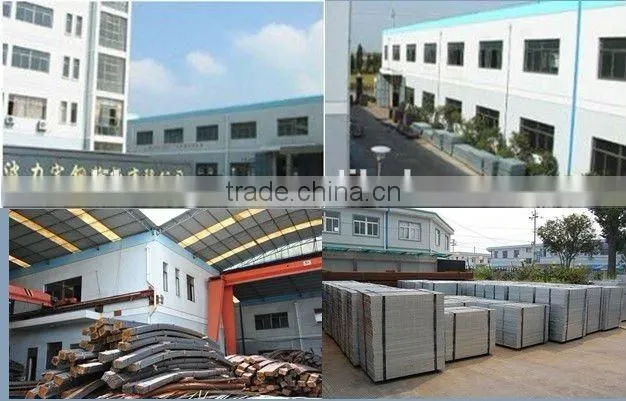

Ningbo Lihongyuan Steel Grating Co.,Ltd was founded in 2001,covering an area of more than 15000 m²,possessing three international advanced automatic production lines of steel grating and a complete inspecting and testing devices.Ningbo Lihongyuan Steel Grating Co.,Ltd has approved ISO 9001:2008 Quality Management System in 2001.
We always stick to manufacturing good quality steel grating,stair treadds and trench cover etc for our valuable customers world wide,which make our business partners more competitive & ahead than their competitors.
For sure,Ningbo Lihongyuan is your right partner for purchasing & developing quality goods in China.
Work with us,be stronger,dominate the future!
