Home > Manufacturing & Processing Machinery > Metallurgy Machinery > 2016 New Design CNC-635 High Precision Spring Making /Forming Machine
2016 New Design CNC-635 High Precision Spring Making /Forming Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WNJ
Model Number:
CNC-635
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC-625 Digital Controlled Spring Making MachineNegotiableMOQ: 1 Set -
CNC-625A New Product of Spring Forming Machine in 2014NegotiableMOQ: 1 Set
-
CNC-650 5 Axis CNC Spring Forming Machine in WNJNegotiableMOQ: 1 Set
-
CNC-625 ISO & BV Professional Certificate of CNC Spring Forming Making MachineNegotiableMOQ: 1 Set
-
New Design Calmess Wire Rotary Spring Coiling Machine in 2014NegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
WNJ
Model Number
CNC-635
After-sales Service Provided
Engineers available to service machinery overseas
| Item Name | 2016 New Design CNC-635 High Precision Spring Making /Forming Machine |
| Style | CNC-635 |
| Color | Grey/Blue |
| Wire Diameter of Coiled Material | φ1.5 -φ3.5mm |
| Max. Outside Diameter of Coiled Spring | φ60mm |
| Instruction Value of Wire Feed | ±0.01 - ±9999.99 |
Instruction Value of Cam |
±0.1° - ±359.9° |
| Savable System | 99 groups |
| Motor Power | 5.5KW (X-Y axis), 1.0KW (Z axis) |
| Power | Three phase 380V, AC ,50HZ |
| Weight | 1500kg |
PRODUCT PARAMETERS
- Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan .
- It has four axes, three of them are interconnected and the rest of them are an assistant axis. It can have eight work positions working continuously

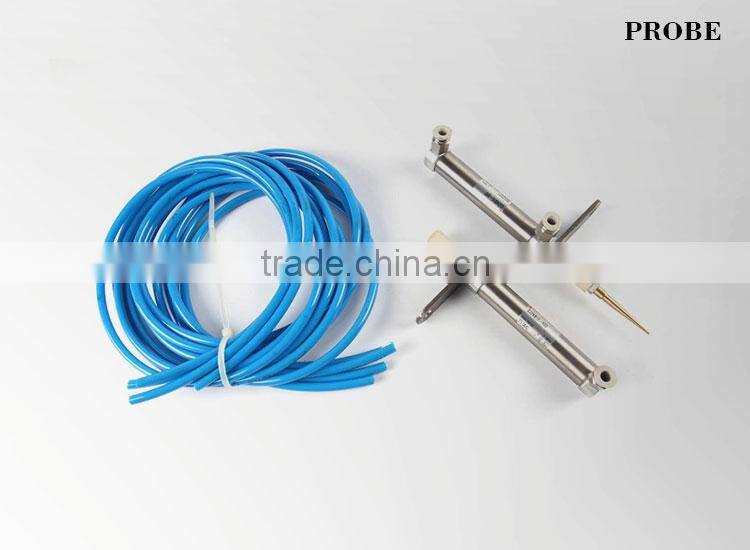

- A precious inspection tracer device is installed; it will stop working automatically when the unqualified product is found .
- The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen .

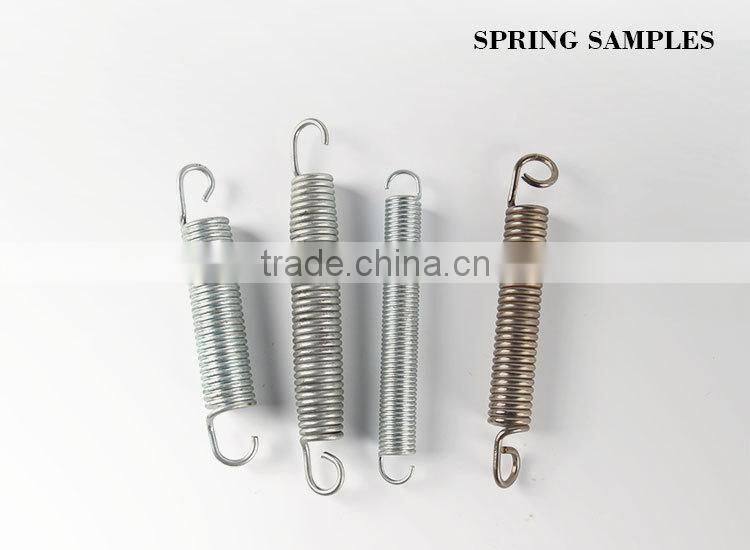

- It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc .
OUR SERVICE
- Two-years (computer ) &one-year (mechanical) warranty.
- Permanent technical service .
- One week free training with accommodation and food.
- Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS
COMPANY INFORMATION
CERTIFICATION
PARTNERS
AGENTS
FAQ
- What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
- Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
- How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
