New Design Factory Price Low Price Baby Washer Machine for Making Spring
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WNJ
Model Number:
CNC-635Z
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Design Factory Outlet Low Price Lumpia Wrapping Machine for Making SpringNegotiableMOQ: 1 Set -
New Style Factory Price Solid Tube End Forming Machine for Making SpringNegotiableMOQ: 1 Set
-
Factory Outlet Professional Baby Lock Quilting Machine for Making SpringNegotiableMOQ: 1 Set
-
New Design High Quality Low Price Rod Coiling Machine for Making SpringNegotiableMOQ: 1 Set
-
New Style Factory Price Solid Universal Testing Machine for Making SpringNegotiableMOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
WNJ
Model Number
CNC-635Z
After-sales Service Provided
Engineers available to service machinery overseas

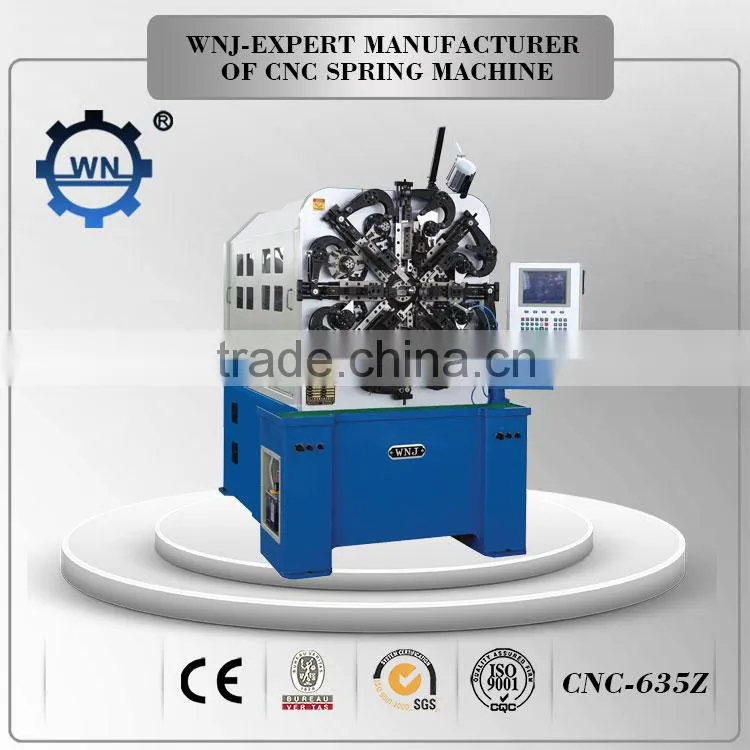

| Item Name | CNC-635Z CNC Wire Rotary Machine |
| Style | CNC-635 |
| Color | Grey/Blue |
| Wire Diameter of Coiled Material | φ1.5 -φ3.5mm |
| Max. Outside Diameter of Coiled Spring | φ60mm |
| Instruction Value of Wire Feed | ±0.01 - ±9999.99 |
Instruction Value of Cam |
±0.1° - ±359.9° |
| Savable System | 99 groups |
| Motor Power | 5.5KW (X-Y axis), 1.0KW (Z axis) |
| Power | Three phase 380V, AC ,50HZ |
| Weight | 1500kg |
PRODUCT PARAMETERS
- Equipped with the computer-controlled system imported from Taiwan and servo motor imported from Japan .
- It has four axes, three of them are interconnected and the rest of them are an assistant axis. It can have eight work positions working continuously
- A precious inspection tracer device is installed; it will stop working automatically when the unqualified product is found .
- The parameters such as major diameter and angle can be modified at any time according to the working status displayed on the fluorescence screen .

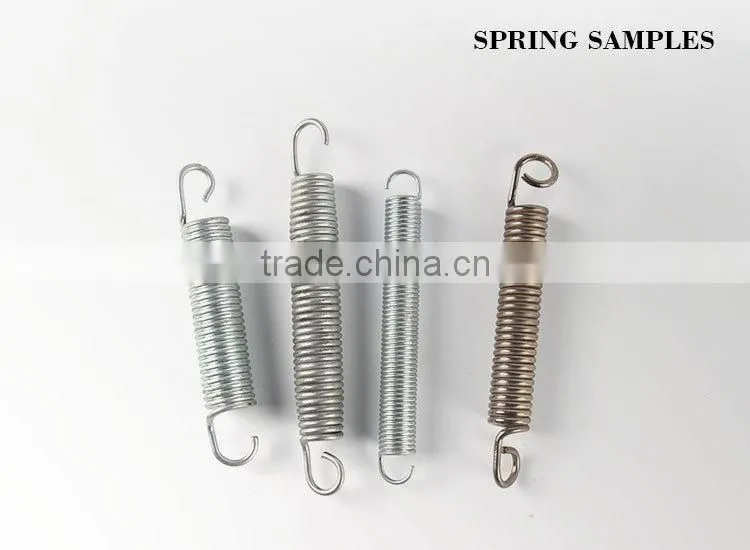

- It is suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and other different spring and special-shaped spring etc .
OUR SERVICE
- Two-years (computer ) &one-year (mechanical) warranty.
- Permanent technical service .
- One week free training with accommodation and food.
- Engineer can be sent aboard for installation, debugging and training.
MAIN PRODUCTS
COMPANY INFORMATION
CERTIFICATION
PARTNERS
AGENTS
FAQ
- What is your machine controller and motors?
- Controllers are imported from Hust, Taiwan. Motors from Sanyo,Janpan.
- Can you offer training in our plant?
- Basically, we have sales and service teams in Euro, Turkey, Korea,Japan, South American, India. If you are out of these countries, our enginner will be sent to your place for training if you need.
- How many years you exported? Do you have CE?
- Definitely, we have exported spring machines in past 9 years, and all of the machines have CE certificates.
